Tri axle flat bed trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

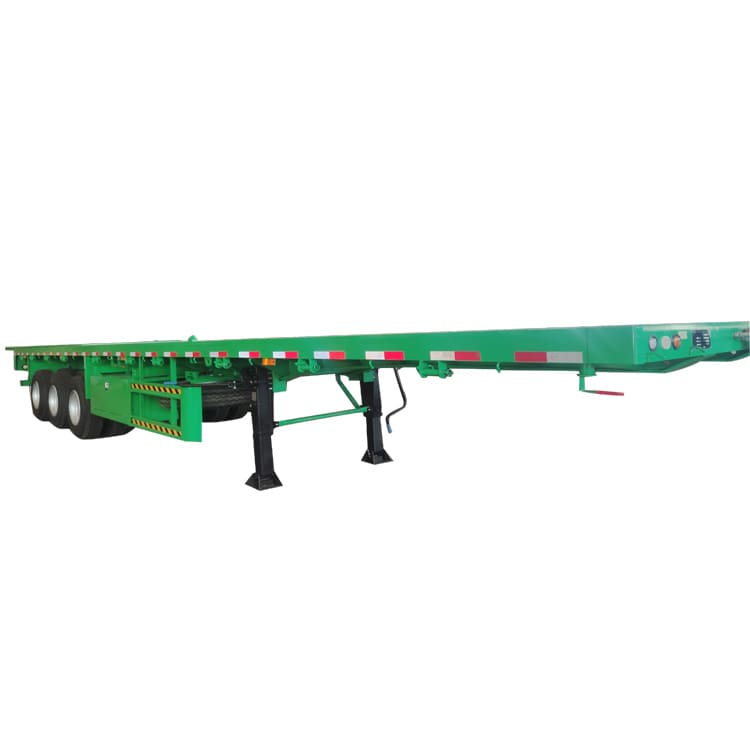

40 Foot Tri Axle Flat Bed Trailer for Sale in Nigeria - TITAN Vehicle
40 Foot Tri Axle Flat Bed Trailer for Sale in Nigeria - TITAN Vehicle
Model: tri axle flat bed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket
Tool Box: Contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.
3. Durable mechanical widened spring suspension, make sure the stability and safety.
4. Polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
