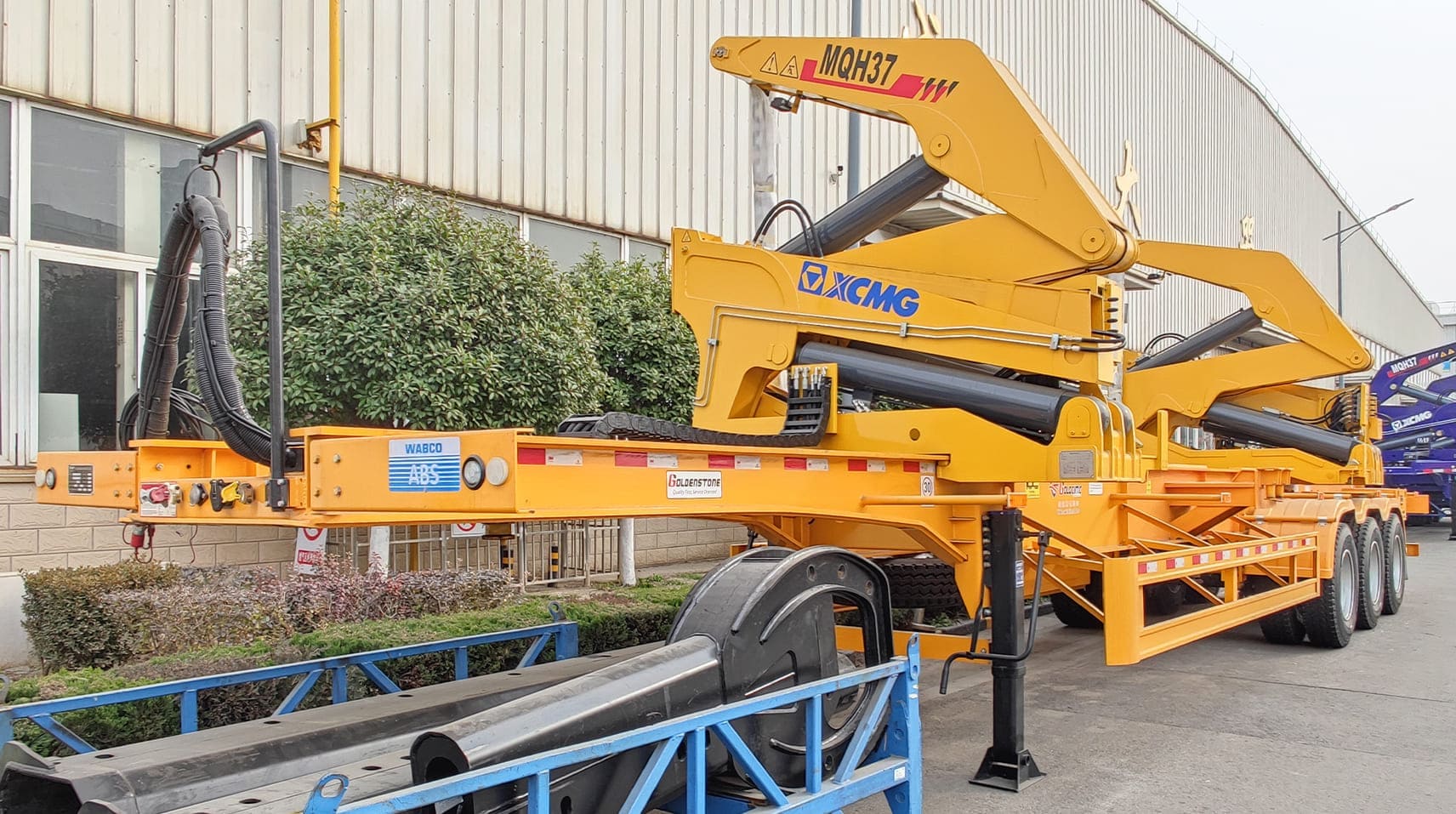

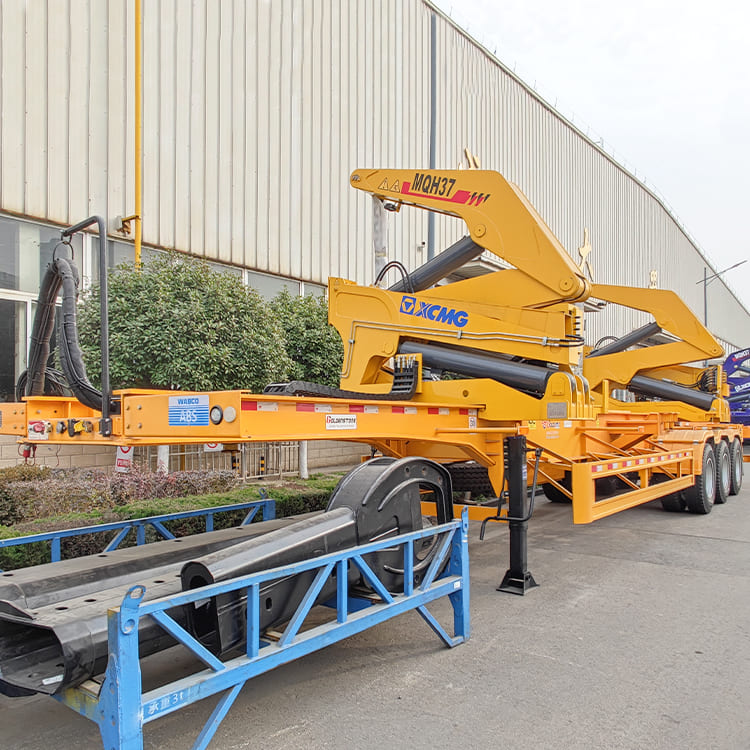

The 40ft container side loader trailer is mainly designed for the transportation of containers, and can load and unload containers autonomously and transfer them quickly. At the same time, the 40ft container side loader trailer also has the good transportation performance of a semi trailer.
The container side loader trailer trailer deeply integrates the lifting function and the transportation function, making the container side loader trailer trailer show unique adaptability and efficiency advantages in port transportation, logistics transportation, and construction site handling. The side loader trailer for sale main beam is made of high strength alloy steel. Compared with ordinary steel, the side loader trailer for sale’s tensile strength and yield strength are significantly improved, effectively inhibiting the deformation of the frame.
Container Side Loader Trailer manufacturers & suppliers in Argentina
Container Side Loader Trailer manufacturers & suppliers in Argentina
Model: 40Ft Container Side Loader Trailer
Dimension: 14100mm*2500mm*4200mm
Lifting Capacity: 45 ton (max)
Loading Container Size: 20ft, 40ft container
Trailer Material: high strength alloy steel
Axle: 3 axles, 13 tons, TITAN brand
Tire: 12 units, 12R22.5
Breaking System: WABCO brand
Landing Gear: JOST brand, 28 ton
Leaf Spring: 10 layers
Suspension: mechanical suspension

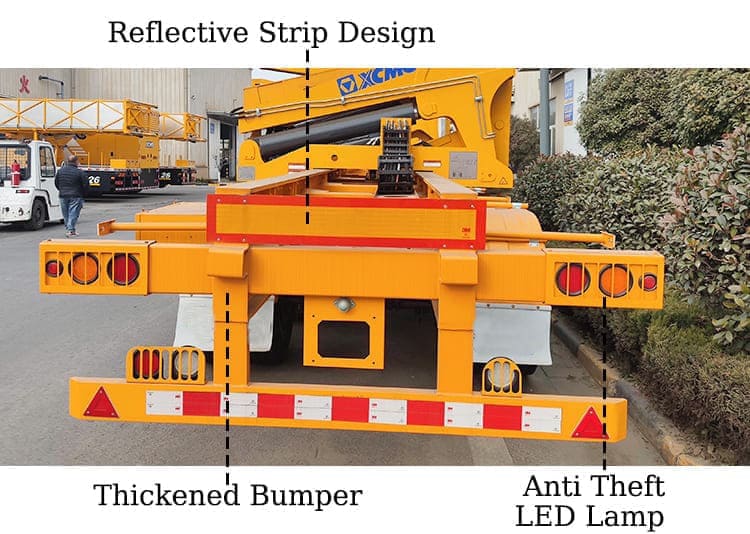

Lamp: LED Lamp with anti-theft design
The exterior of the container side loader trailer trailer uses powder spraying and baking painting process. Compared with traditional painting, this process can achieve high color rendering and provide bright visibility during transportation. The TITAN side loader trailer manufacturers & suppliers painting process has high adhesion and will not easily fall off, keeping the container side loader trailer clean and tidy, greatly reducing the frequency of repairs and maintenance costs to reduce the overall operating costs of Argentina customers.

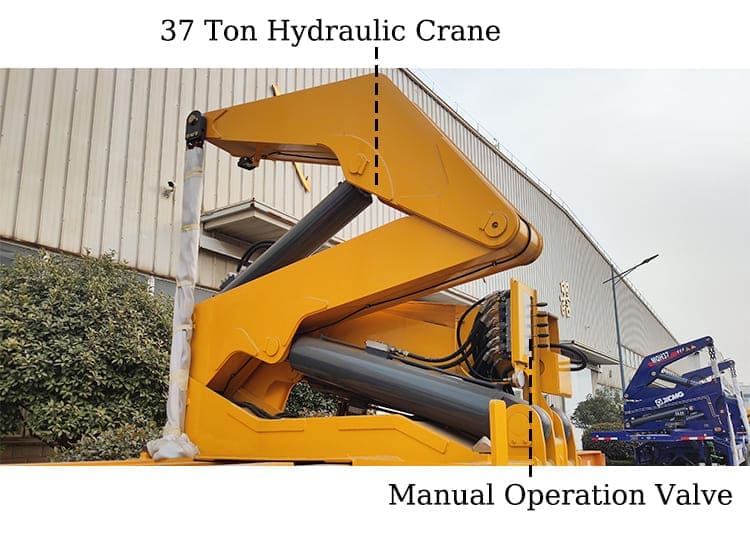

The side loader trailer for sale manual operation valve is a direct control element of the hydraulic crane, and various adjustments of the hydraulic crane are achieved through manual control. Reliable manual operation valves can provide stable and flexible control capabilities for loading and unloading operations under complex working conditions to avoid unexpected situations.
At the same time, the container side loader trailer manual operation valve has a simple structure and can be quickly used that will not be affected by humid climate or extreme weather, providing a stable operating environment for the side loader trailer for sale.
The side loader trailer for sales can not only load and unload containers, but also transport them. The side loader trailer manufacturers & suppliers equipped with container locks and can load 20ft and 40ft containers, balancing efficiency and compatibility with standardization requirements. Once the container position and container locks are determined to be one-to-one, the container can be fixed, reducing the time and difficulty of operation.

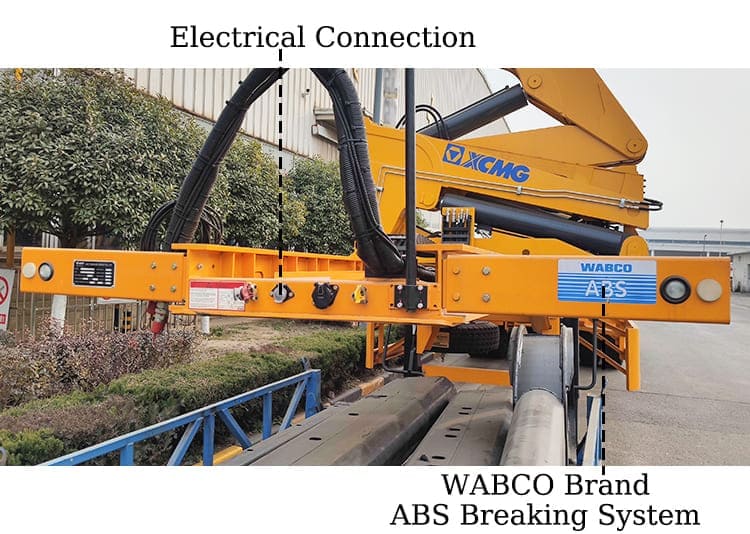

The side loader trailer for sale is equipped with an ABS braking system, which can achieve a balance between safety and cost through intelligent power distribution and dynamic control. Unlike ordinary braking systems, the side loader trailer manufacturers & suppliers ABS braking system can adjust the power in real time, reduce the occurrence of tire locking caused by emergency braking, and effectively protect the safety of the container. The container side loader trailers equipped with ABS systems can also greatly enhance braking response and further shorten braking distances.
The side loader trailer for sale's hydraulic crane can easily lift and lower containers vertically, move the containers horizontally, and adjust the angles. The hydraulic crane can move the target container without relying on complex external lifting equipment, and is particularly suitable for work environments with limited space, such as narrow warehouses or rugged construction sites.
The TITAN side loader trailer manufacturers & suppliers hydraulic arm has a strong load capacity, capable of bearing a weight of 37 tons, and can effectively reduce movement time to improve efficiency compared to traditional mechanical cranes.

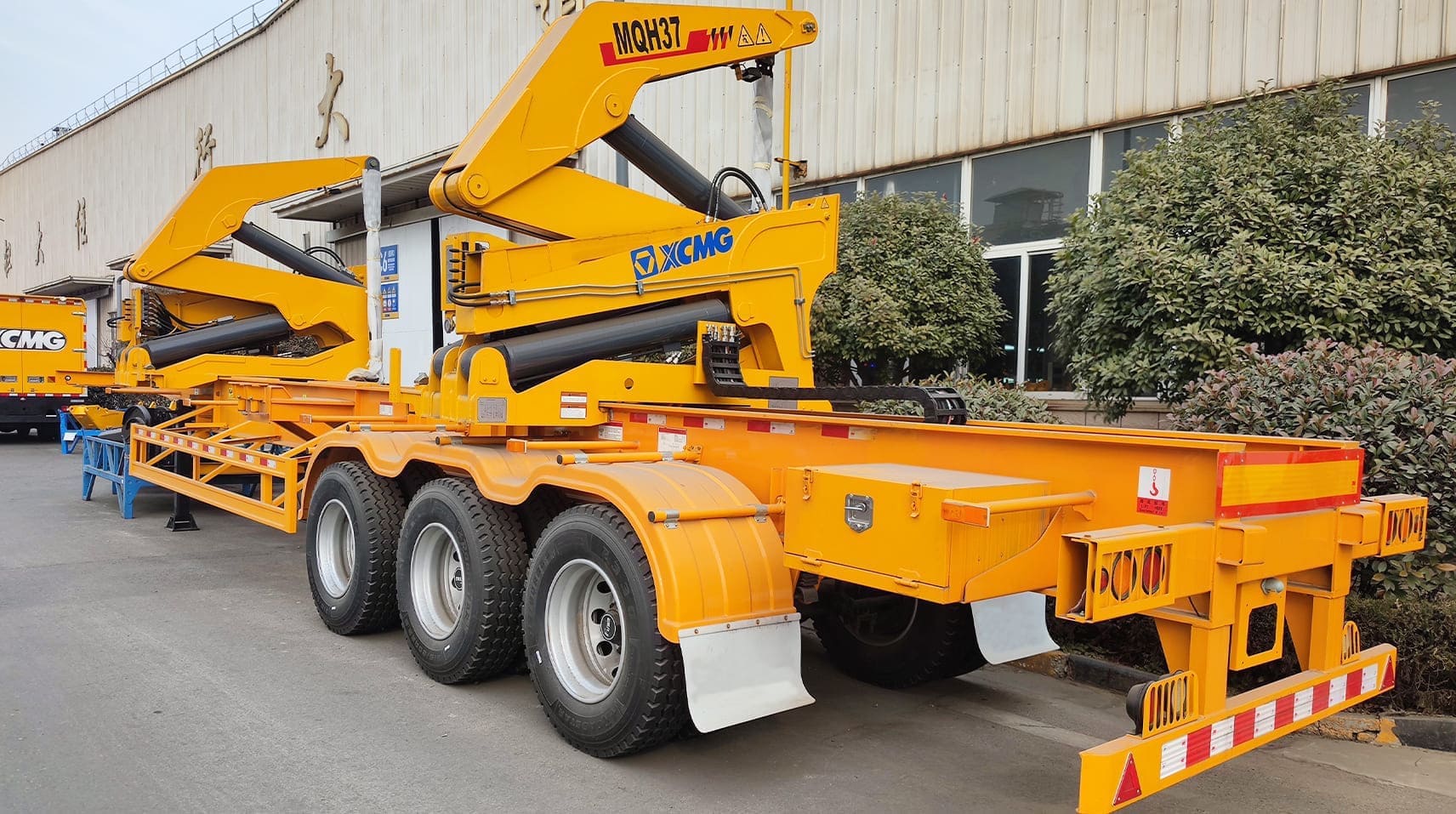

The side loader trailer for sale uses 13 ton axles, which can increase the side loader trailer for sale's load capacity and can bear a total weight of 45 tons, avoiding the risk of axle breakage due to overloading. Compared with ordinary axles, the 13 ton axle can avoid deformation of the axle or container side loader trailer frame due to long term bumps or gravel impact on complex roads in Argentina.
TITAN has a unique packaging method that is different from other container side loader trailer manufacturers. Transportation can be shipped by a container. Also the side loader trailer for sale can shipped in RORO ship. TITAN spray wax for all side loader trailer for sale for sale and cover with waterproof raincoats before delivery, which can effectively prevent side loader trailer manufacturers & suppliers from being corroded by seawater and sea winds during shipping.
