The side lifting function is mainly designed for the needs of container transportation, and can independently complete the loading and unloading and rapid transfer of containers. By combining the lifting function with the transportation function that demonstrates excellent adaptability and work efficiency.
The side loader are widely used in port transportation, logistics transportation and other scenarios which have a powerful lifting crane system and can efficiently move and install containers. The container side loader show unique advantages in the process of container transportation, especially in terms of transportation capacity and shock absorption performance, which can effectively ensure the safety of containers during transportation.

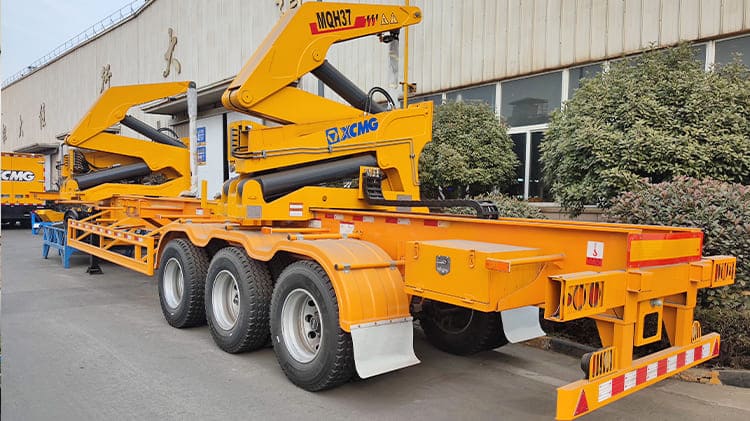

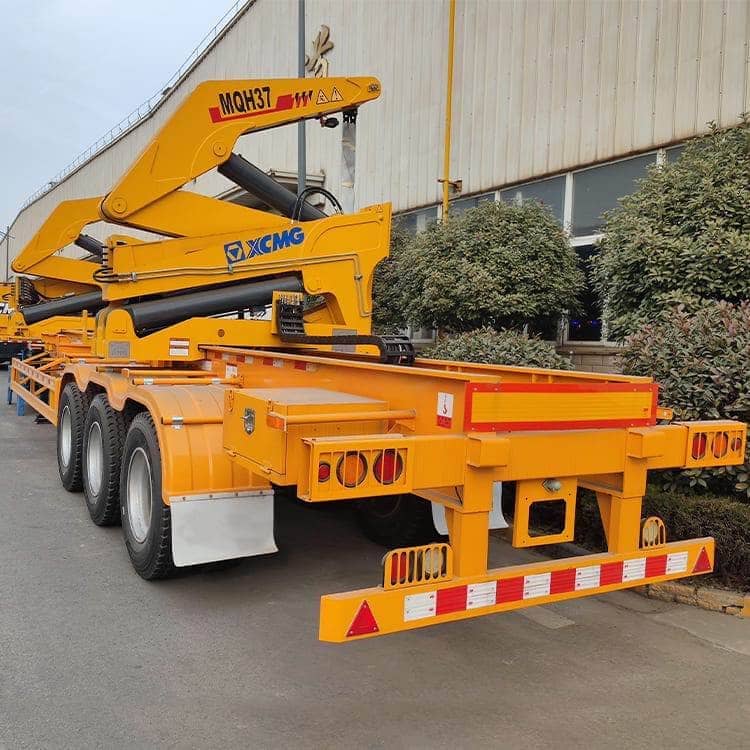

Container Side Loader Trailer | 40T Container Side lift Trailer for Sale in Angola
Container Side Loader Trailer | 40T Container Side lift Trailer for Sale in Angola
Model: 40T Container Side lift Trailer
Dimension: 14100mm*2500mm*4200mm
Loading Container Size: 20ft/40ft container
Lifting Capacity: 45 ton
Tire: 12 units, 12R22.5
Axle: 3 axles, 13 tons, TITAN brand
Trailer Material: high strength alloy steel
Breaking System: WABCO brand
Landing Gear: JOST brand, 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp with anti-theft net

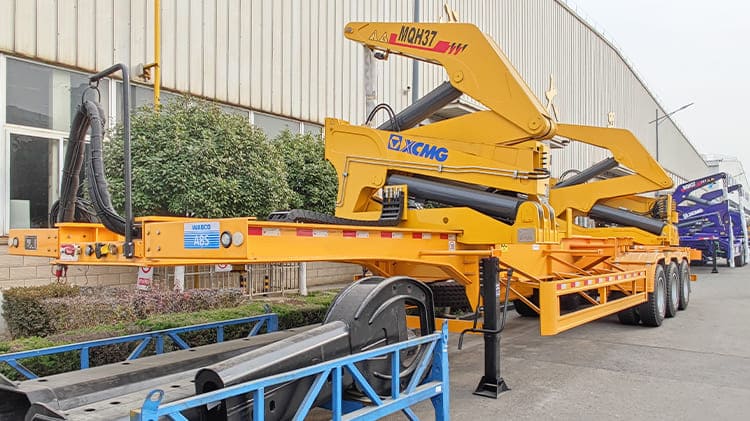

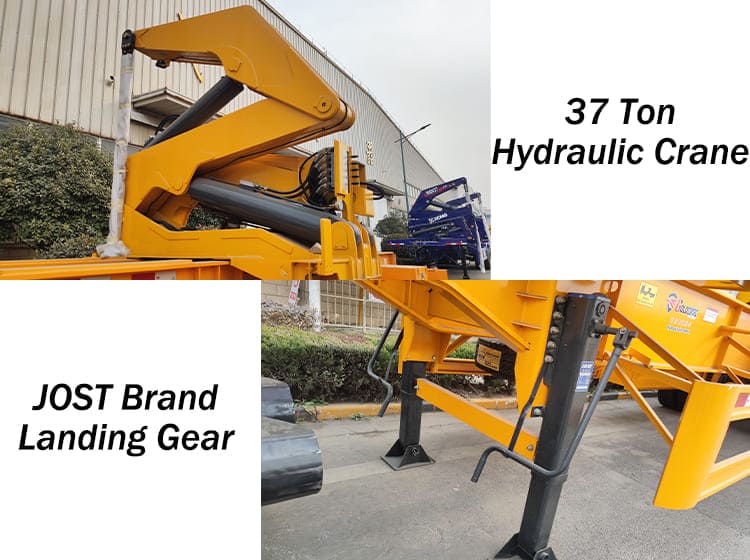

The hydraulic crane on the container side loader can easily achieve vertical lifting, horizontal movement and angle adjustment of the container. The biggest advantage of this hydraulic crane system is that can move the container without relying on complex external lifting equipment.
The advantages of the hydraulic crane are particularly obvious in small sites or complex working environments (such as narrow warehouses or rugged construction sites). The hydraulic crane of the TITAN side loader trailer has a strong load capacity and can carry up to 37 tons. Compared with traditional mechanical cranes, hydraulic cranes can significantly reduce operation time and improve work efficiency.
In order to ensure the safety of container transportation, the 40t container side lift trailer for sale is equipped with an ABS braking system. The system achieves a balance between safety and cost through intelligent power distribution and dynamic control.
Unlike ordinary side loader braking systems, the ABS braking system can adjust power in real time to avoid tire locking caused by sudden braking, thereby effectively ensuring the safety of container transportation. At the same time, the ABS system can also improve the braking response speed, shorten the braking distance, and further improve the braking performance.
The 40t container side lift trailer for sale uses a 13 ton axle, which significantly improves the overall load capacity, enabling to carry a total weight of 45 tons. The axle design effectively avoids the risk of axle breakage caused by overloading. Compared with ordinary axles, the 13 ton axle is particularly suitable for Angola complex road conditions, and can withstand long-term bumps and gravel impacts to prevent deformation of the axle or side loader trailer frame.

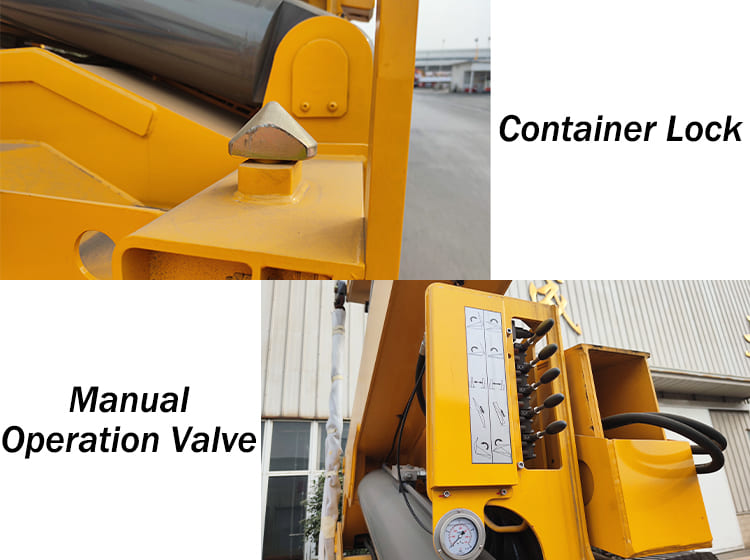

In addition to the loading and unloading functions of containers, the container side loader also has efficient container transportation capabilities that equipped with container lock device that supports the loading of 20 feet and 40 feet containers. Through standardized design, the side loader can be compatible with different types of containers while meeting efficiency requirements.
During operation, Angola users only need to confirm the location of the container and ensure that the container lock is docked in place to complete the fixation, which greatly reduces the operation time and difficulty.

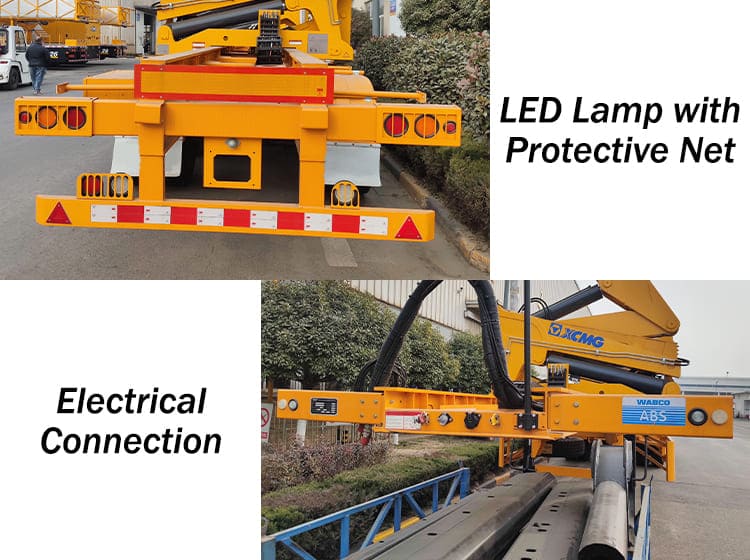

To improve the safety of night driving, all lights on the 40t container side lift trailer for sale use LED technology. The LED lamp not only enhances the visibility of the side loader, but also improves the durability of the lights.
Compared with traditional lights, LED lights provide higher brightness and have a longer service life, which can effectively resist the wear and tear of gravel roads. In addition, in order to prevent the theft of lights, TITAN side loader trailer are also specially designed with anti-theft nets to further enhance their safety.
TITAN adopts a distinctive packaging approach that sets apart from other container side loader manufacturers. The 40t container side lift trailer for sale can be transported using containers, offering flexibility in shipping methods. Alternatively, side loader can also be shipped via RORO ship.
Before delivery, TITAN applies a protective wax coating to all sside loader and wraps in waterproof covers. The double layers protection helps shield the side loader trailer from the corrosive effects of sea salt and ocean winds during transit, ensuring that the equipment remains in optimal condition upon arrival.
