The Extendable Container Side Loader Trailer is a high-end special transport trailer that integrates "self-loading and unloading" and "frame extension". It can efficiently operate independently with various container sizes, from 20 feet to 45 feet, without relying on external lifting equipment.
The Extendable Container Side Loader Trailer is a specialized transport vehicle that combines a self-loading container spreader with a retractable longitudinal beam chassis.
The biggest breakthrough of the Extendable Container Side Loader Trailer lies in its ability to handle containers of different sizes while maintaining road mobility.
It is used for independent logistics transportation and container loading/unloading tasks that do not require large on-site lifting equipment (such as reach stackers or gantry cranes), and is suitable for trunk lines or regional deliveries that frequently switch between 20-foot, 40-foot, or even 45-foot containers.
Extendable Container Side Loader Trailer for Sale In Guyana
Extendable Container Side Loader Trailer for Sale In Guyana
Extendable Container Side Loader Trailer for Sale In Guyana
Extendable Container Side Loader Trailer for Sale In Guyana
Extendable Container Side Loader Trailer for Sale In Guyana
Loading capacity: 45 Ton

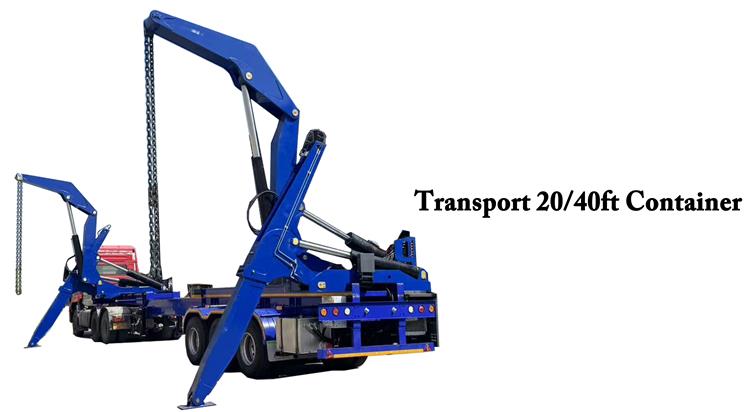

Load: 20 ft and 40 ft container
Power source: Diesel engine
Remote control: 1 unit
Chains: 2 chains+4 hooks

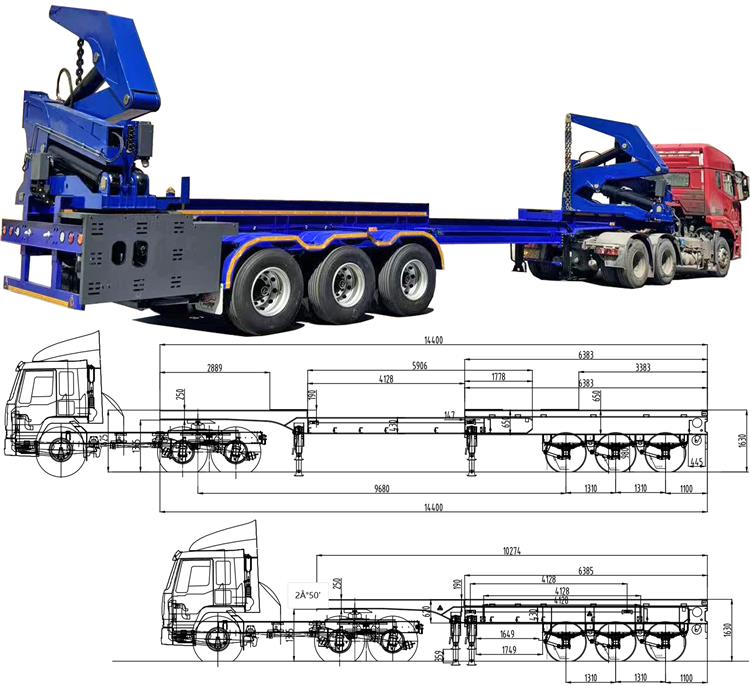

Dimensions: 14400*2500*4200mm
Axles: 3 axle*13 ton;16 tons brake lining
Tires: 12 pcs,12R22.5
Landing gear: FUWA
Braking system: WABCO Emergency valve
Suspension: Mechanical Suspension
Kingpin: 2 inch and 3.5 inch
The Extendable Container Side Loader Trailer can quickly transfer containers from railcars or yards to semi-trailers.
Through the retractable chassis and boom position adjustment, the Extendable Container Side Loader Trailer can perfectly accommodate the loading, unloading, and transport of 20ft, 40ft, 45ft, and even double 20ft containers. When empty or transporting only 20ft short containers, the chassis can be shortened, significantly reducing the turning radius and improving maneuverability in narrow roads, urban areas, and confined yards.
The main beam of the Extendable Container Side Loader Trailer is made of high-strength structural steel (such as HG60/Q690), and its frame length can be freely extended and retracted via hydraulic cylinders.
The front and rear hydraulic lifting arms of the Extendable Container Side Loader Trailer can slide back and forth along the frame tracks to precisely align with the corner lockholes of containers of different lengths.
The Extendable Container Side Loader Trailer can be driven by the tractor's power take-off (PTO) or equipped with an independent small diesel engine, ensuring independent loading and unloading even after unhooking.
The Extendable Container Side Loader Trailer is equipped with a wireless remote control, allowing operators to observe the lifting process from the optimal vantage point, ensuring operational safety.

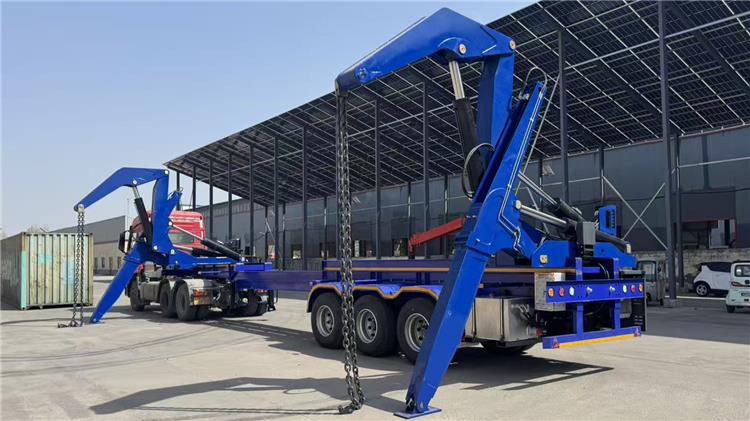

During operation, the left and right hydraulic outriggers extend outwards and brace against the ground, providing extremely strong overturning stabilizing torque. It is equipped with hydraulic locks, overload protection valves, and container torsion locks to prevent overturning or slippage during lifting.
