The 40 ft flatbed trailer can show excellent transportation performance in various terrains and climates. The TITAN flatbed trailer for sale near me can carry 60 tons of cargo with the high-strength chassis, and uses high-quality parts to show excellent shock absorption and transportation efficiency. The flatbed trailer 3 axle can not only transport bulk cargo, but also install standardized 40ft/20ft containers using the container locks on the floor plate.
Flatbed Trailer for Sale Near Me | 40 Ft Flatbed Trailer 3 Axle in Jamaica
Flatbed Trailer for Sale Near Me | 40 Ft Flatbed Trailer 3 Axle in Jamaica
Overall Dimension: 12500mm*2500mm*1580mm
Load Capacity: 60 ton
Trailer Feature: with fuel tank
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Landing Gear: 28 Ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Bumper: 4mm thickened
Lamp: LED Lamp with anti-theft design

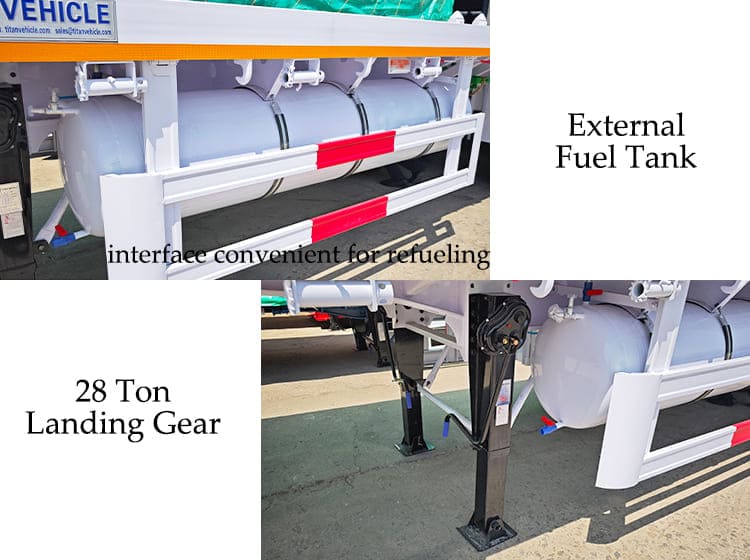

The 40 ft flatbed trailer is equipped with a fuel storage device, and the scientific layout of the fuel tank can ensure that it does not interfere with functional components such as the spare tire rack and tool compartment. The fuel tank is made of high-strength materials with excellent thermal stability, ensuring the fuel maintains stable physical properties in a high temperature environment.
The innovative interface design simplifies the fuel filling and fuel delivery process, and users can complete the work in advance. The flatbed trailer 3 axle fuel tank design reduces the time for mid way replenishment during the transportation process, significantly improving the long-distance transportation timeliness of Jamaica users.

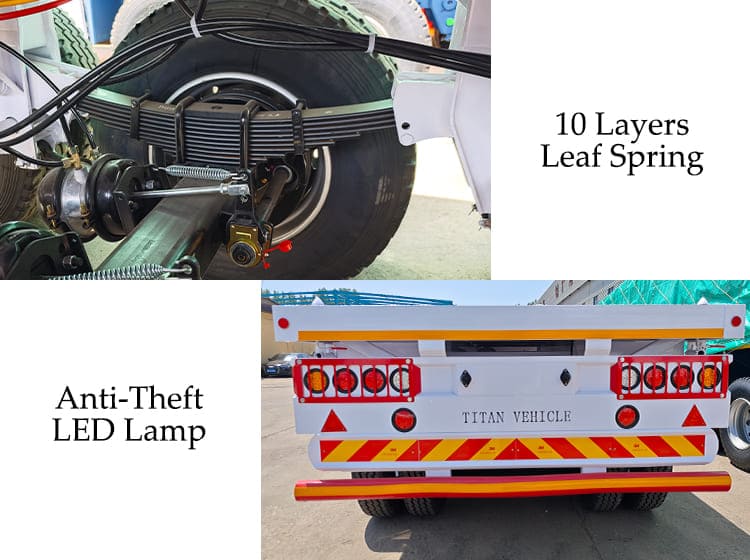

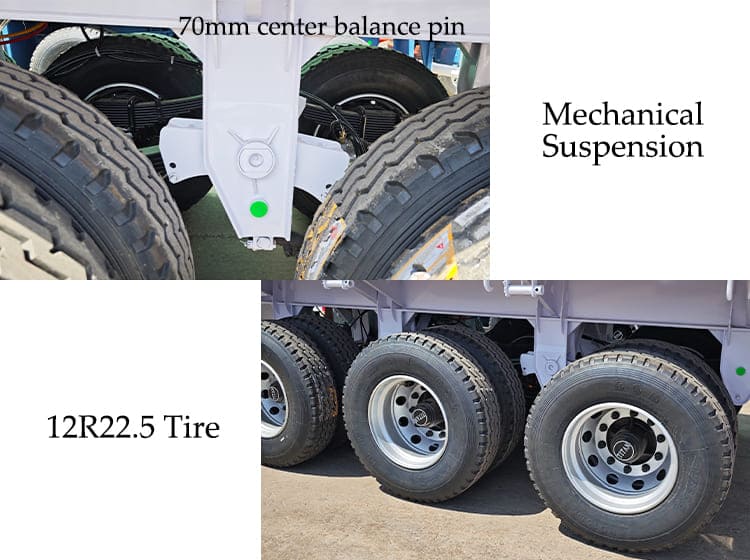

The multi-leaf spring suspension system is equipped with a 70mm center balance pin, which can effectively absorb the impact energy of the road. When passing through deep potholes, the flatbed trailer for sale near me can effectively attenuate the vertical impact force with the suspension system. The high-strength material and four-way reinforcement process of the suspension ensure continuous and stable operation in the tropical climate of Jamaica.
The specially designed preload adjustment mechanism between leaf springs enables the flatbed trailer 3 axle to maintain excellent performance in a high-temperature environment. The environmental adaptability of the suspension has become an important support for the competitiveness of the 40 ft flatbed trailer market.
The flatbed trailer for sale near me cross member and main beam adopt a diagonal brace reinforcement structure, and the support spacing is strictly controlled within 500mm. The carefully calculated interval distribution allows the load to be evenly transferred to each stress node, effectively preventing the risk of flatbed trailer 3 axle deformation caused by local stress concentration.
The 40 ft flatbed trailer cross member is made of 100mm thickened channel steel. After continuous optimization by TITAN, the flatbed trailer 3 axle provides reliable structural protection for heavy-load long-distance transportation in Jamaica.
TITAN flatbed trailer for sale near me adhere to the principle of function priority in the selection of platform materials, breaking through the limitations of traditional smooth steel plates and selecting 3mm thick anti-slip steel pattern plate. The special surface treatment process significantly improves the friction coefficient of the plate.
When the 40 ft flatbed trailer passes through complex road conditions, the displacement of the cargo is controlled within a certain safety range. The pattern plate has been strengthened to improve its reliability under complex terrain conditions and avoid obvious wear and tear when operating on gravel roads.
The flatbed trailer 3 axle is equipped with 12 sets of container locks, and the spacing is designed according to the 20ft/40ft container standard. Therefore, 40 ft flatbed trailer of multiple sizes can be installed, creating a flexible carrying combination capacity and significantly improving the utilization rate and transportation coordination of the flatbed trailer for sale near me. The container lock simplifies the operation process, greatly shortens the time spent on locking, but also ensures the reliability of the fastened container.
When purchasing a TITAN flatbed trailer for sale near me, you can choose to transport by container or ro-ro ship. Before shipment, TITAN will also carry out a unique special packaging method. First, the exterior of all flatbed trailer 3 axle will be waxed, and then covered with specially made waterproof fabric. The composite packaging method can effectively prevent the 40 ft flatbed trailer from being corroded by the humid environment during sea transportation.
