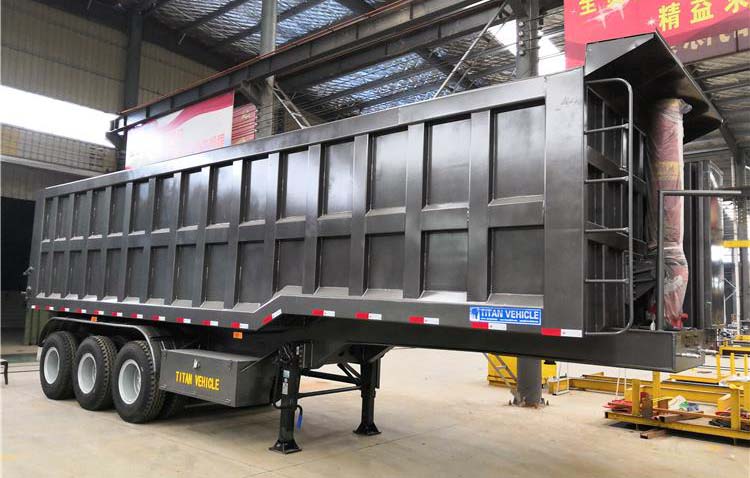

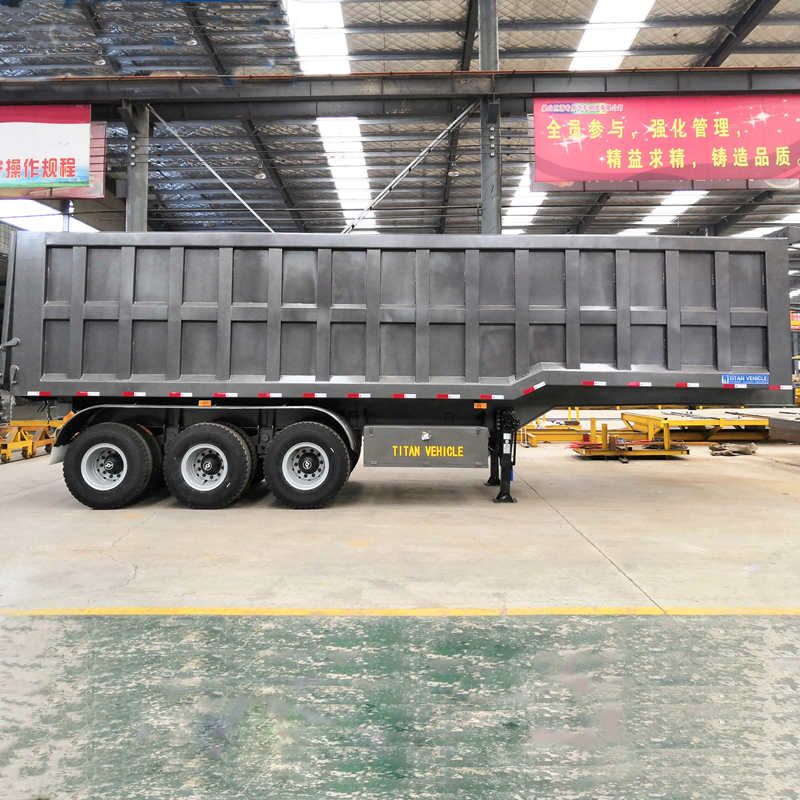

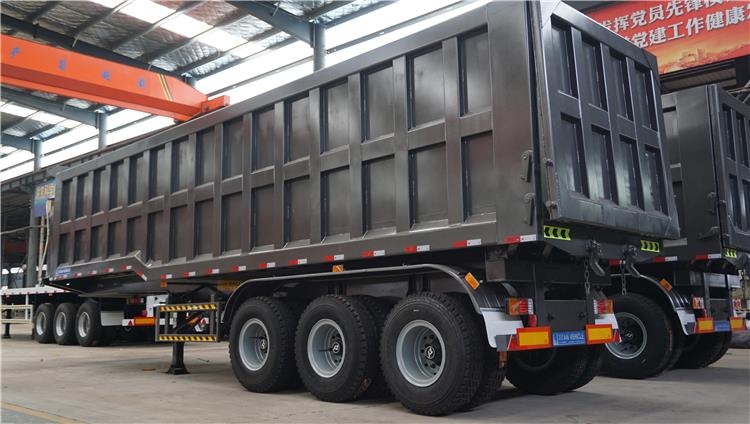

TITAN 3 Axle Dump Tipper Trailer for sale prices adopt high strength steel to make it durable when loading the sand or small stones or rocks. TITAN Tippers trailer equipped with reliable hydraulic HYVA cylinder.
And the loading capacity can reach 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose.
Sinotruk Mini Tipper Truck|Dump Trailer for Sale
Sinotruk Mini Tipper Truck|Dump Trailer for Sale
Sinotruk Mini Tipper Truck|Dump Trailer for Sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )

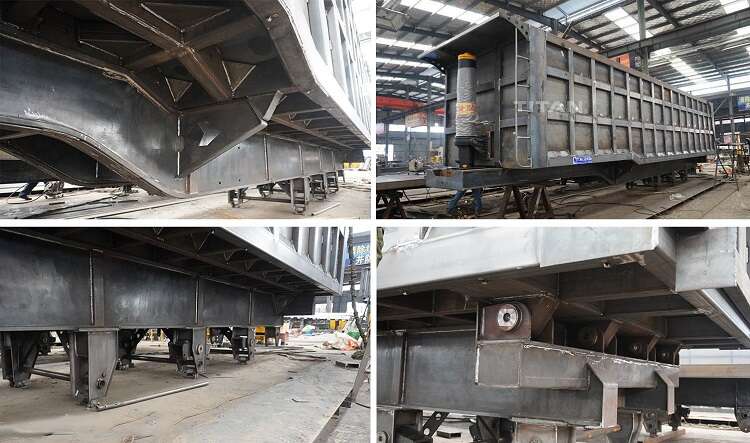

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
