We use high strength steel material to ensure the capacity, the load can be up to 60 to 100 ton payload. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.

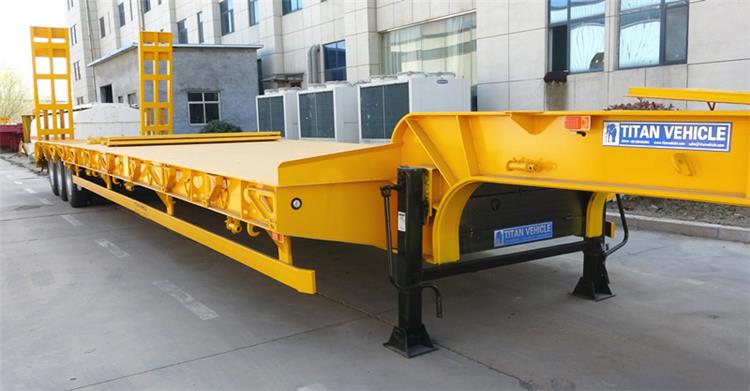

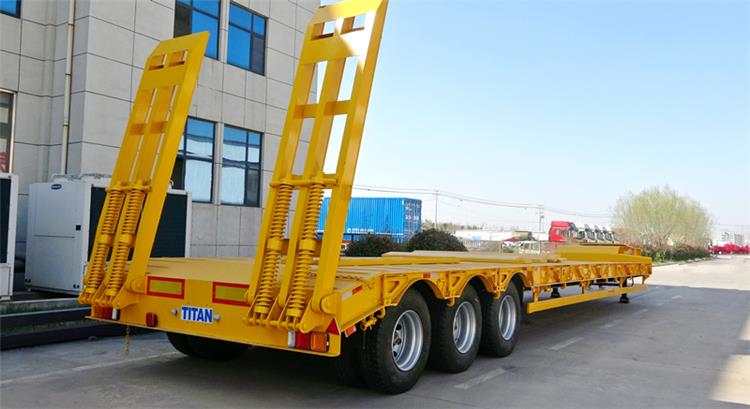

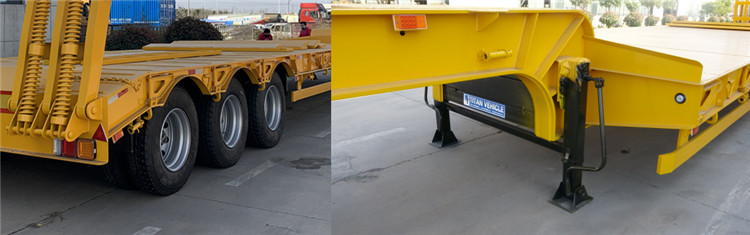

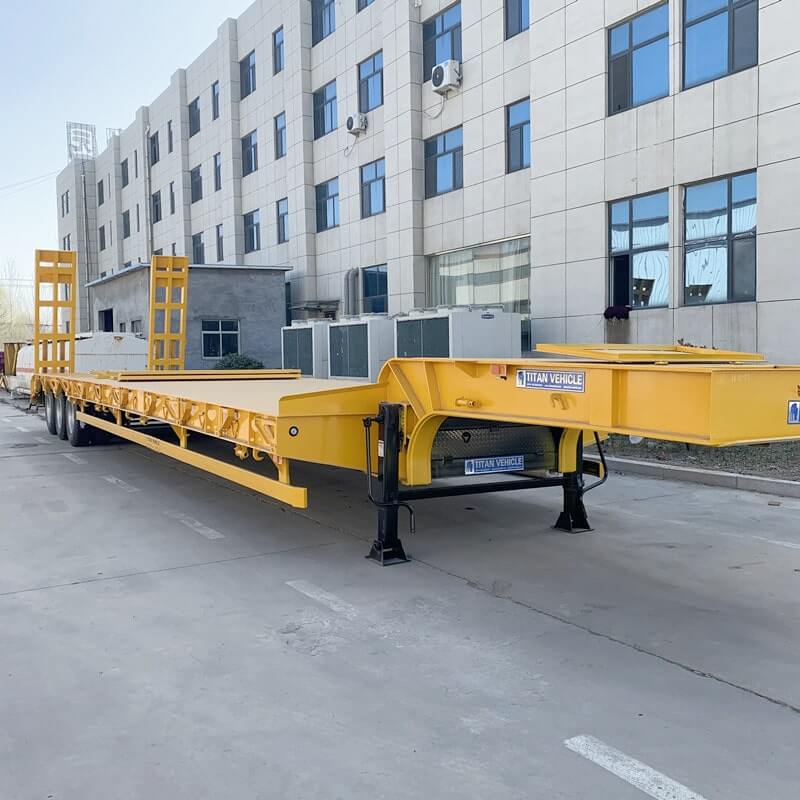

3 Axle 60 Ton Lowbed Low Loader Drop Deck Trailer for Sale
3 Axle 60 Ton Lowbed Low Loader Drop Deck Trailer for Sale
3 Axle 60 Ton Lowbed Low Loader Drop Deck Trailer for Sale
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 60-100T
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
