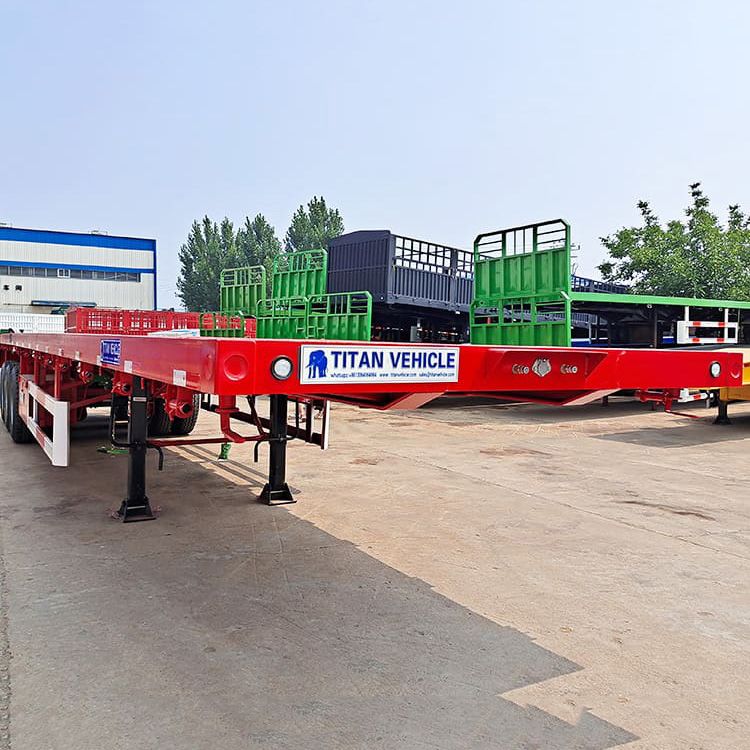

Flatbed Semi Trailer with Airbag Suspension

Flatbed Semi Trailer with Airbag Suspension

12000 USD

Price: 12000 USD



3 axle 40ft flatbed semi trailer with airbag suspension has a better shock absorption and compression resistance.

SKU: Flatbed Semi Trailer with Airbag Suspension
GTIN: 06975766110185
MPN: TITAN6801009
Brand: TITAN VEHICLE

3 Axle Flatbed Semi Trailer with Airbag Suspension:

This 3 axle 40 foot flatbed semi trailer is mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transportation, and is specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength. This 3 axle 40 foot flatbed semi trailer is mainly used to transport 20/40-foot containers, and it is equipped with 12 sets of locks to fix the containers.

The advantage of this flatbed semi trailer is that it is equipped with an airbag suspension, which can be very good for shock absorption and compression.

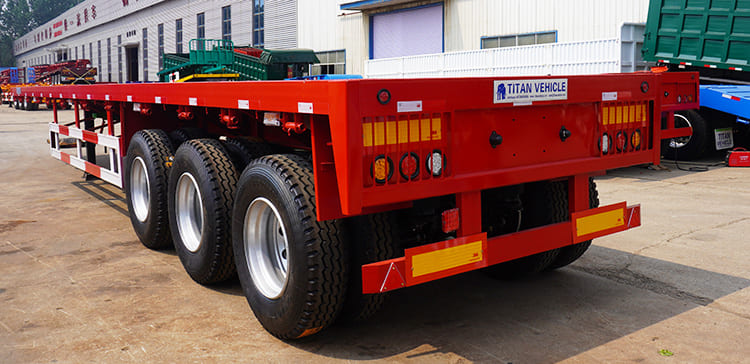

3 Axle 40Ft Flatbed Semi Trailer

New 3 Axle 40 Foot Flatbed Semi Trailers for Sale Near Me with Air Bag Suspension

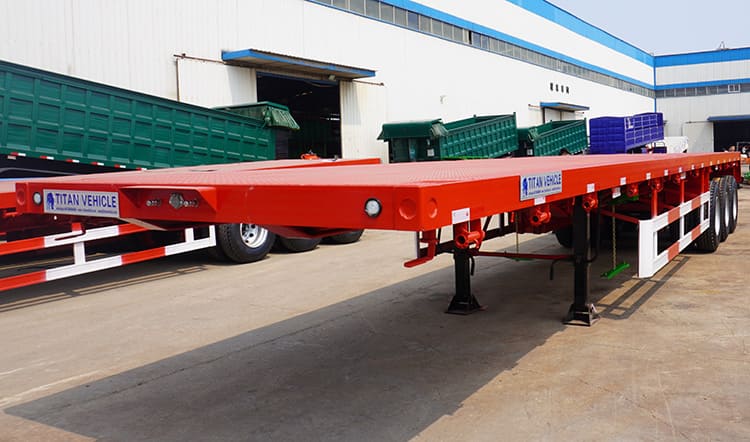

3 Axle 40Ft Flatbed Semi Trailer

New 3 Axle 40 Foot Flatbed Semi Trailers for Sale Near Me with Air Bag Suspension

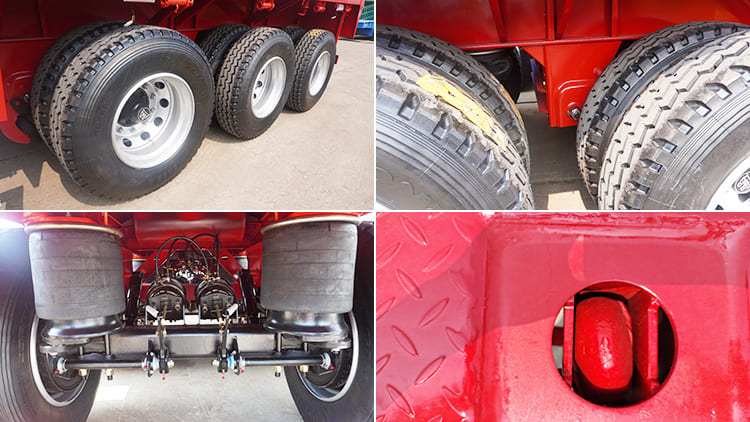

Details of 40 foot Flatbed Semi Trailer for Sale:

In this picture, you can see all the details of the 3 axle 40 foot flatbed semi trailer. The airbag suspension has a good shock absorption effect and can protect the goods at the same time, so if the high value-added goods are often transported, the airbag suspension is the best choice.

3 Axle 40Ft Flatbed Semi Trailer



40 foot Flatbed Semi Trailer Specification:

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

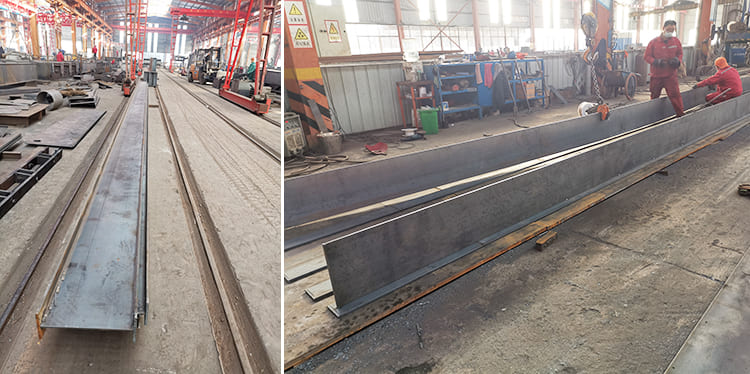

3 Axle 40 foot Flatbed Semi Trailer in the Factory

3 axles 40 foot flatbed trailer

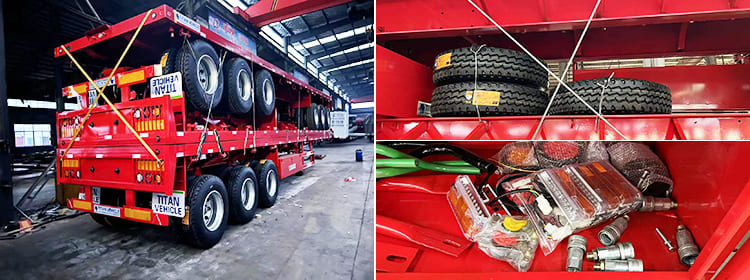

Pakage of the new 3 axle 40 foot flatbed semi trailer

3 axles 40ft flatbed trailer



Video Play of the 40 foot flatbed semi trailer for sale:

3 Axle 40Ft Flatbed Semi Trailer



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

3 axle 40ft flatbed trailer
