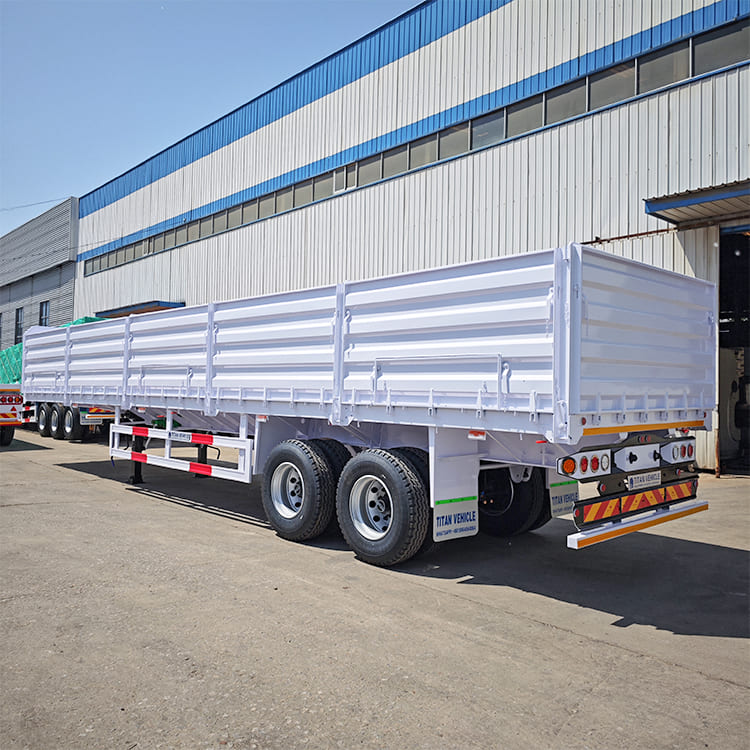

The 2 axle side wall trailer have a wide range of transportation uses, such as equipment, building materials and other goods. In addition, 2 axle side wall trailer can also meet the transportation needs of different distances and flexibly respond to different transportation scenarios.
The side wall trailer is very popular among customers due to the multiple transport functions and simple box design. Whether irregularly shaped goods or bulk materials, the type of flatbed trailer with long side wall can achieve efficient loading and transportation, showing good adaptability.

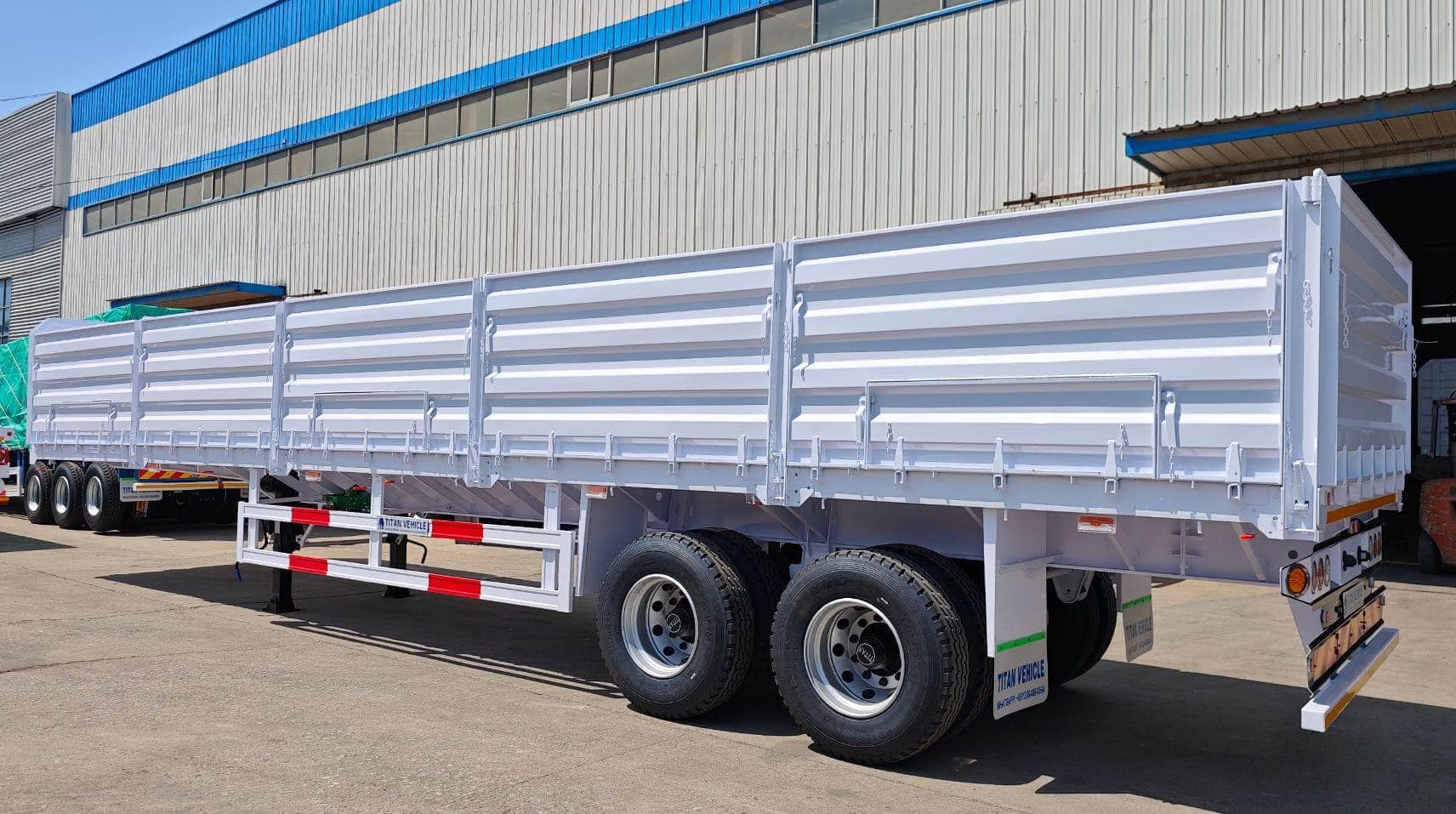

Side Wall Trailer | Flatbed Trailer with Long Side Walls for Sale in Congo
Side Wall Trailer | Flatbed Trailer with Long Side Walls for Sale in Congo
Dimension: 12500mm*2500mm*3200mm
Loading Capacity: 40 ton
Floor Plate: thickened pattern plate
Axles: 2 axles, 13 ton, TITAN brand
Leaf Spring: 10 layers
Suspension: mechanical suspension
Tire: 12R22.5, 8 units
Landing Gear: 28 ton
Lamp: LED lamp

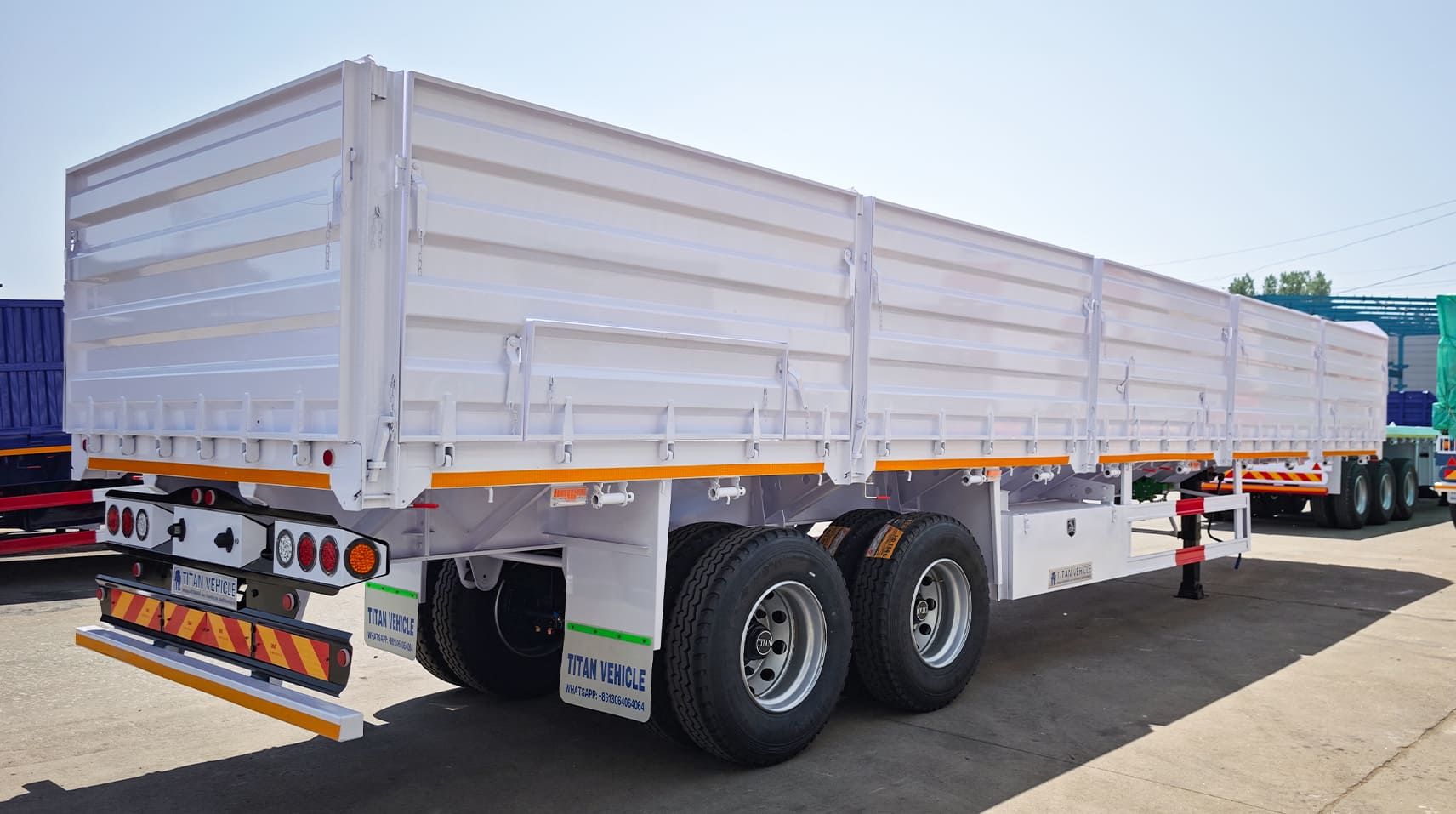

The side wall trailer is white as a whole, and the exterior system adopts a high-visibility design, which is convenient for maintaining a good warning effect under various weather conditions. Compared with the traditional spraying method, the powder spray and baking painting process has been optimized in many aspects.
The process strengthens the adhesion performance of the coating and the substrate, making the coating more solid and improving the adaptability in different climatic environments. Whether a wet and rainy or dry and dusty usage scenario, the flatbed trailer with long side wall appearance can maintain normal use within five years, effectively extending the maintenance interval. In addition, the TITAN flatbed trailer with side walls also supports customized exterior color solutions, which can provide personalized choices according to the needs of customers in the Congo.
Unlike traditional closed trailers, the flatbed trailer with long side wall adopts a detachable sideboard structure. The design of the side wall trailer not only reduces the weight of the whole side wall trailer, but also improves the flexibility of cargo loading, making more convenient in loading and unloading and space utilization.
The overall structure is simple, which not only reduces the difficulty and cost of later maintenance, but also has high adaptability, which can meet the diverse needs of different industries for special cargo transportation.
The flatbed trailer with side walls frame is firmly connected to the cross member and the main beam to build an overall stable loading structure, which enhances the load capacity of the whole flatbed trailer with long side wall and can also meet the actual needs of customers in the Congo for complex transportation tasks.

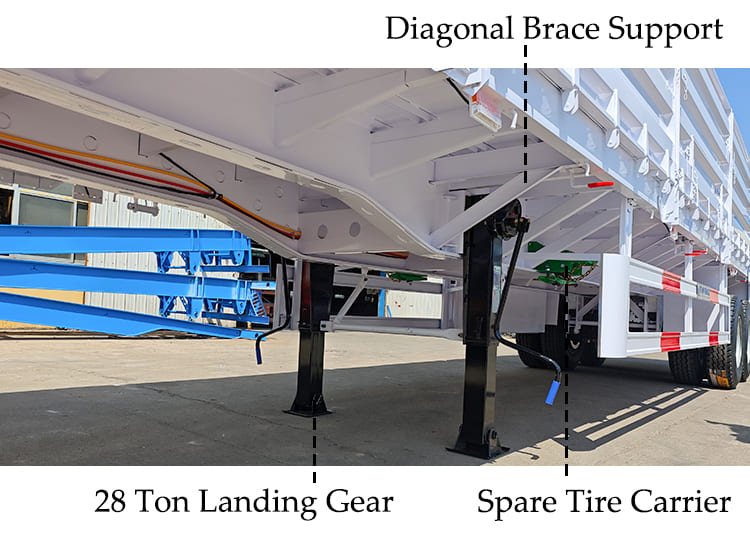

The cross member is used 100mm thickened channel steel and is connected to the main beam through diagonal bracing to ensure the overall strength of the side wall trailer structure. The spacing between the diagonal braces is controlled within 500mm, and the spacing is close, which can effectively disperse the force and prevent local deformation under heavy load.

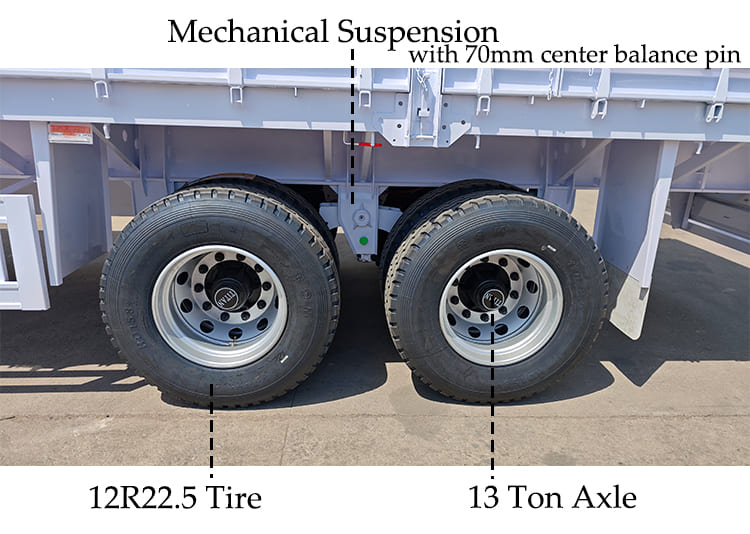

In terms of the suspension system, the flatbed trailer with side walls is equipped with a reinforced mechanical suspension, which improves its stability and adaptability during transportation. In the face of complex situations such as potholes on the road, the leaf spring structure can effectively absorb vibrations, play a role in reducing impacts, and protecting cargo and the side wall trailer body.
The suspension is made of high-strength steel and has good impact resistance and high temperature tolerance. Even in the hot and gravelly road conditions in the Congo, flatbed trailer with long side wall can maintain normal use. In addition, the suspension is equipped with a 70mm center balance pin and reinforced at key front, rear, left and right locations, which not only reduces the impact on the tires but also further improves driving stability.
In terms of base material selection, TITAN focuses on practicality rather than simple cost control. Although smooth base plates are cheaper, the hidden dangers has happened in terms of transportation safety. In contrast, TITAN uses a patterned plate with an anti-slip effect and is thickened to enhance friction and reduce the risk of cargo slippage, which not only ensures cargo safety but also increases the service life of the flatbed trailer with long side wall.
Before delivery, TITAN always sprays wax on all flatbed trailer with long side wall that are about to leave the factory and covers them with special waterproof raincoats to effectively protect from possible erosion by sea wind and seawater during transportation. The packaging measure greatly improves the rust prevention ability of the product during long-distance transportation, which is a major advantage of TITAN in detail management and is different from the standard protection process generally lacking in other side wall trailer manufacturers.
