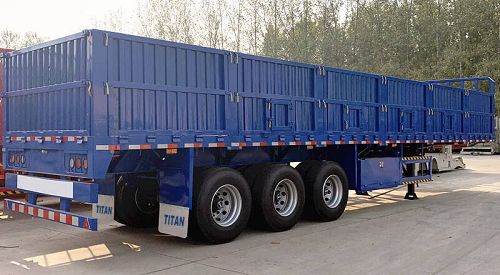

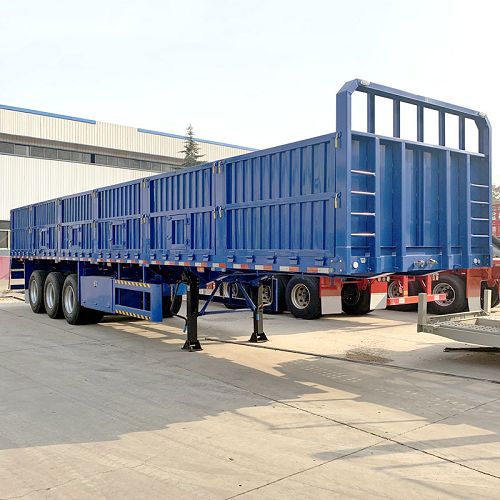

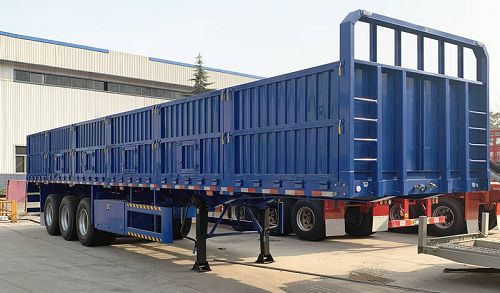

Sidewall cargo semi trailer was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.
TITAN Vehicle adopts high strength steel material to manufacture the sidewall trailer for sale, it can make the trailer have a higher loading capacity and a longer service life. And trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
Tare Weight: About 7.6T
Dimension(mm): 12500x2500x3380mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.
2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. Hight quality side wall, make sure the stable and safety of the loads.
4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.
