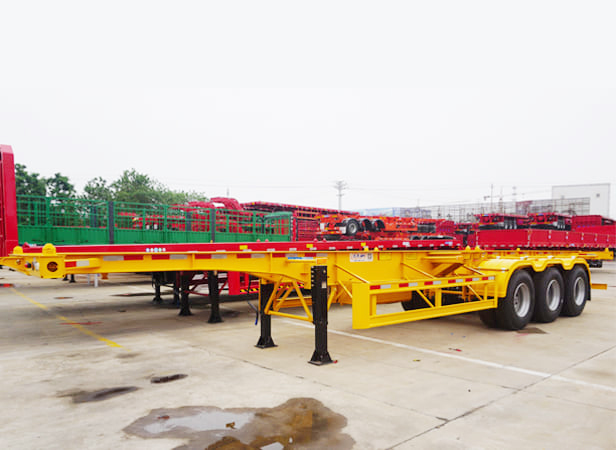

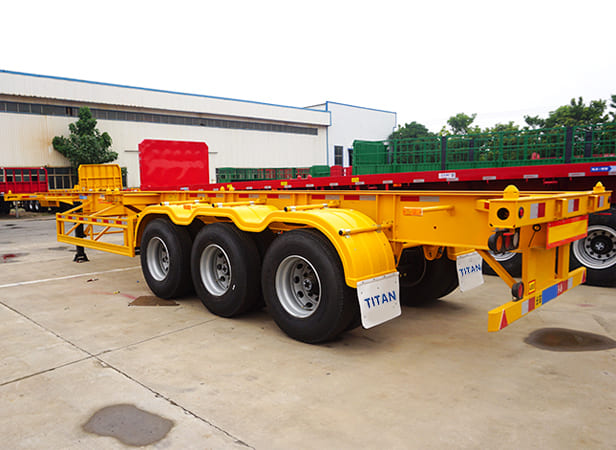

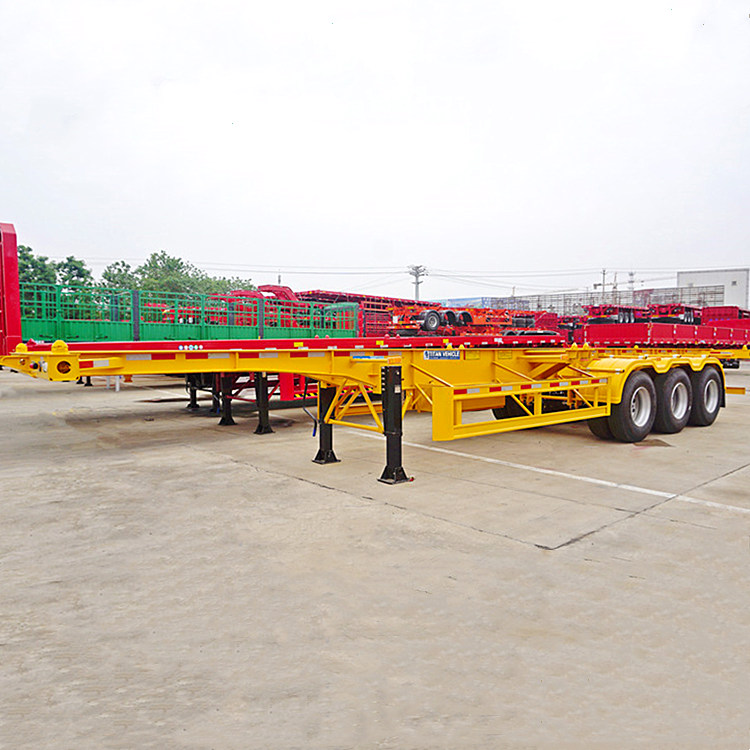

Tri axle 40 ft container chassis trailer are generally named container transport semi trailers. They are semi-trailers with container construction for cargo and other parts. They are mainly suitable for use in ships, ports, routes, highways, and multimodal logistics transportation computer systems. Container transport trailer is still used for container-specific operation models. The difference is that the car is updated and other parts are the chassis frame without a cargo platform. After the container is hoisted to the body and fixed in accordance with the twist lock configuration, it also becomes a component of the frame car. Components. The skeleton car must still be used to run the container, and enjoys the disadvantages of small weight, simple structure and convenient line cutting.

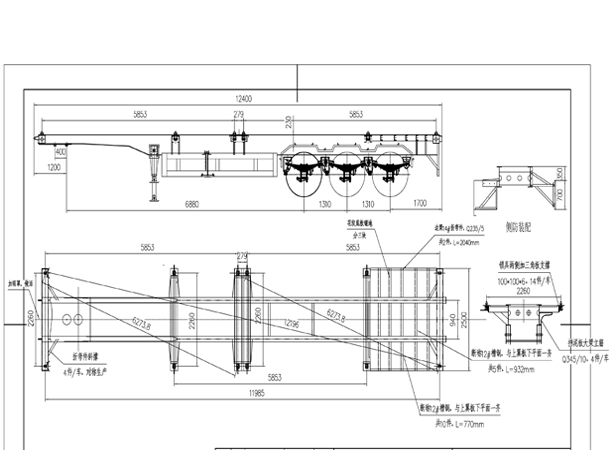

Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

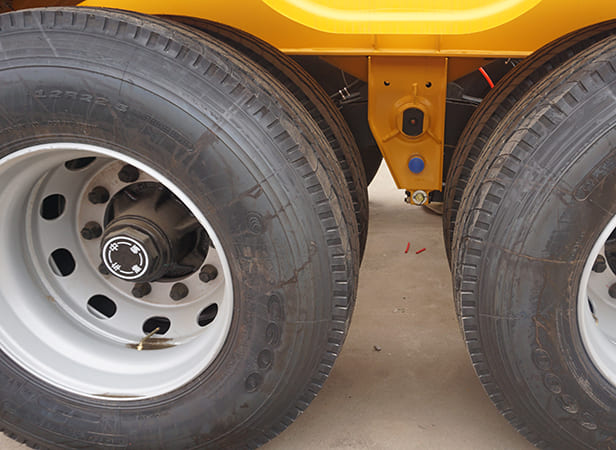

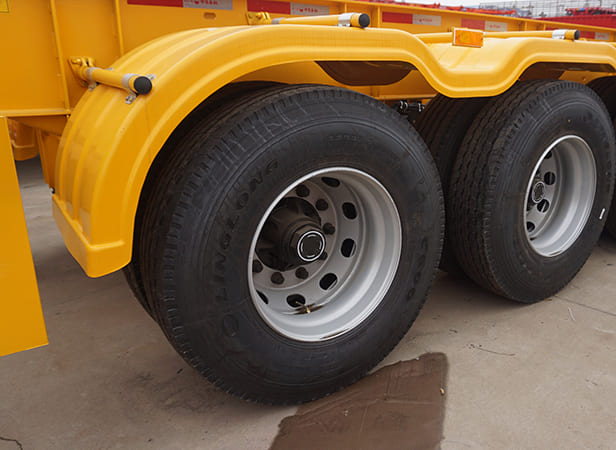

Tire: 13 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

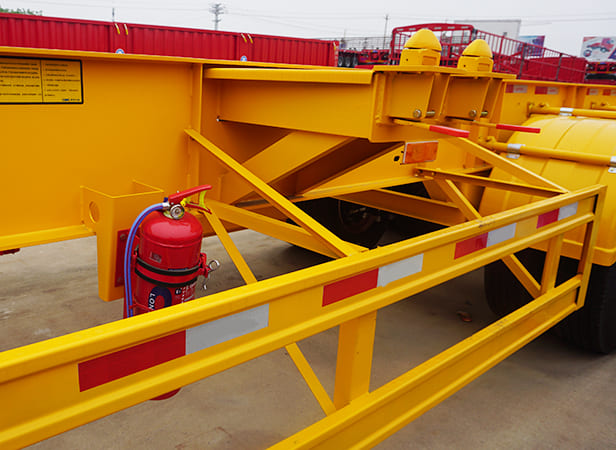

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

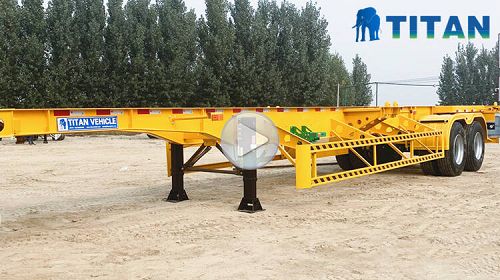

Please click "TITAN Container Skeleton Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
