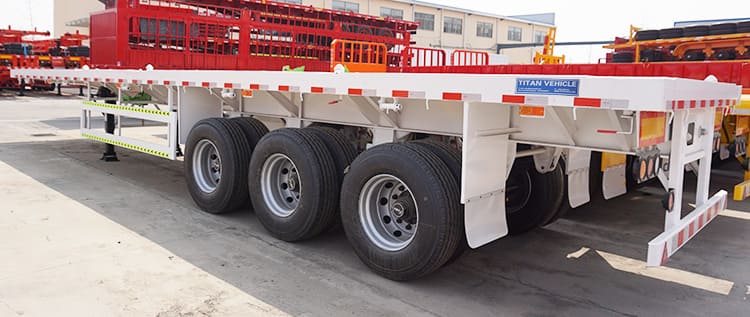

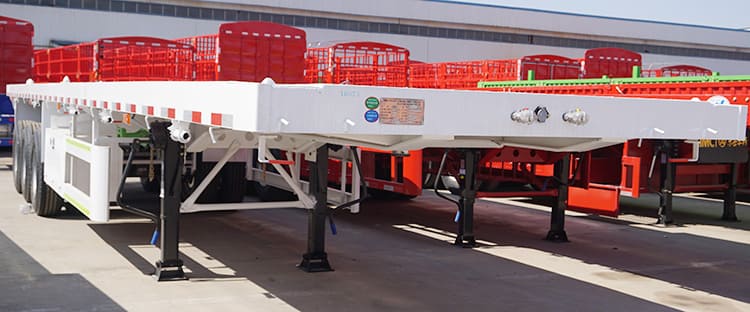

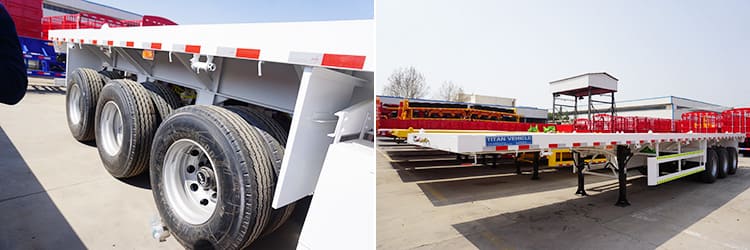

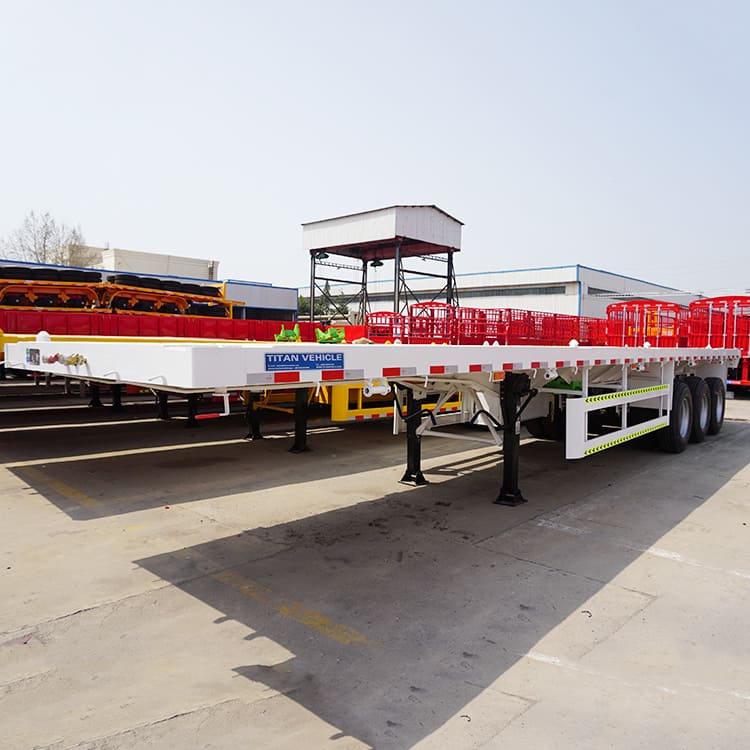

TITAN tri axle flat deck top semi trailer is mainly composed of container locks, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and side and rear lower protection devices, safety accessories and signs, etc.
TITAN adopts the Low carbon high strength alloy steel to make the main beam of the flat deck top semi trailer , it has a higher carry capacity and service life of more than 10 years.
Tri Axle Flat Deck Top Semi Trailers for Sale Price Manufacturers
Tri Axle Flat Deck Top Semi Trailers for Sale Price Manufacturers
Tri Axle Flat Deck Top Semi Trailers for Sale Price Manufacturers
Model: tri axle flat bed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Drawing of the triaxle trailers for sale

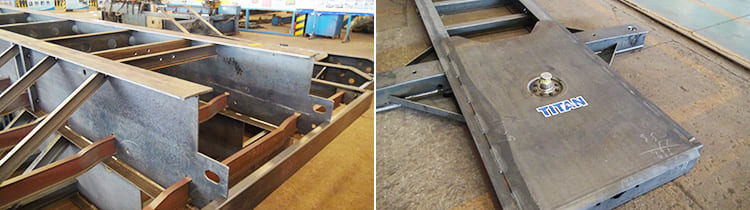

TITAN use automatic submerged arc welding process to weld the main beam of the flat deck trailer. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

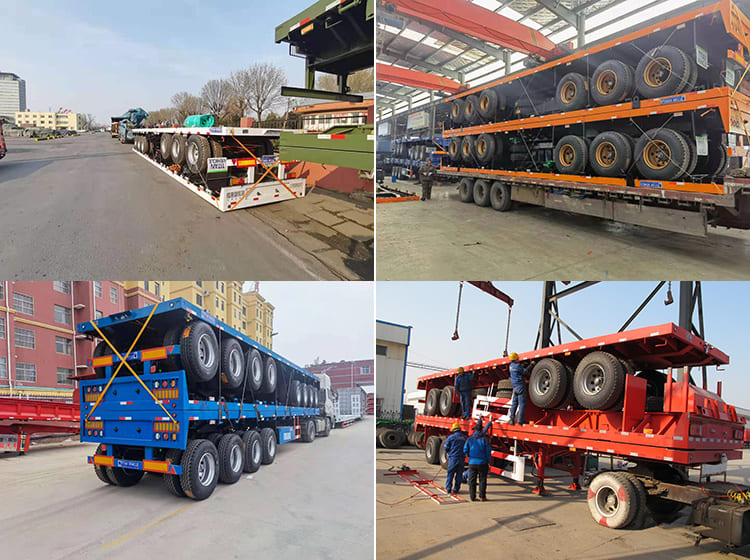

Through this video, you can see different types of flatbed tractor trailer, As well as the process, testing, packaging and customer feedback, etc.
