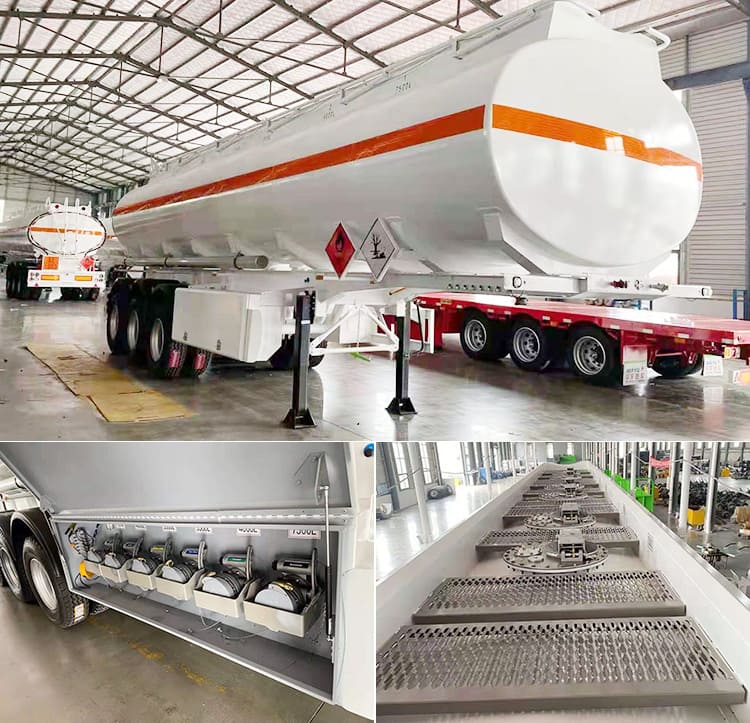

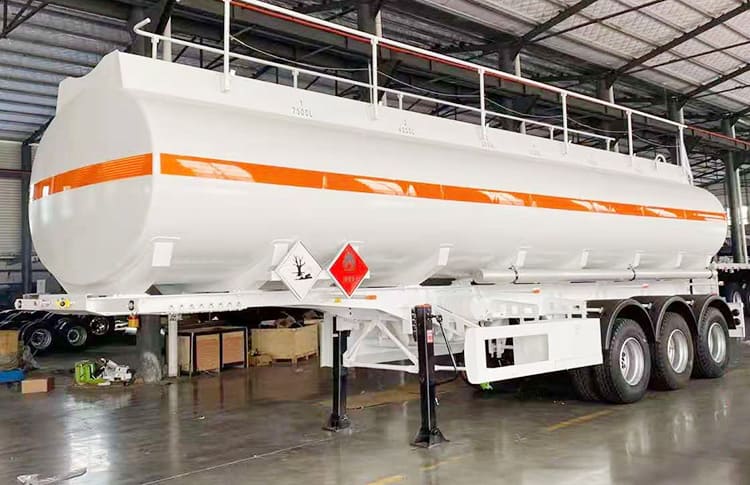

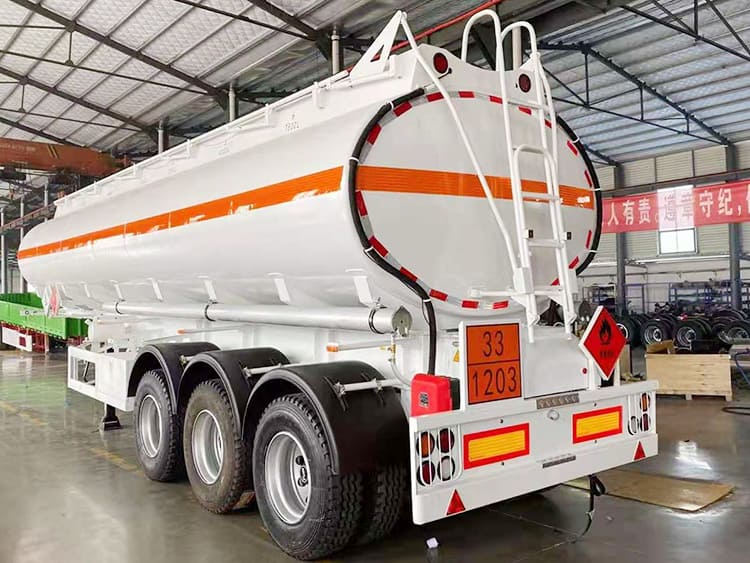

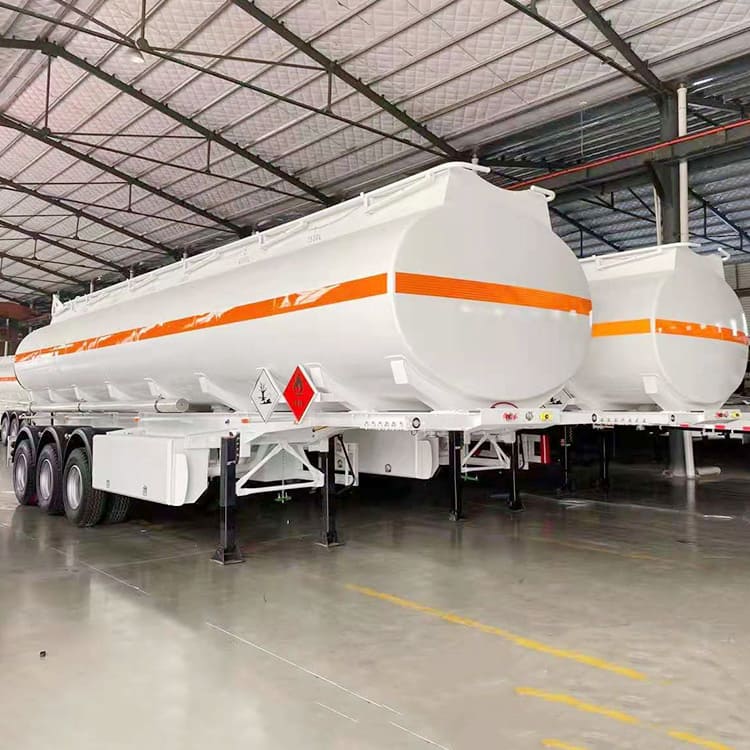

The material of the tri axle fuel trailer for sale produced by TITAN Vehicle can choose stainless steel, carbon steel, aluminum alloy, and the carrying capacity of the petroleum tanker trailer can be 30,000 liters, 40,000 liters, 45,000 liters, etc., or even 90,000 liters.
The tri axle fuel trailer for sale different compartments, like two, three, four, or more compartments, to load different liquids.
Tri Axle Fuel Trailers for Sale Near Me in Zimbabwe
Tri Axle Fuel Trailers for Sale Near Me in Zimbabwe
Tri Axle Fuel Trailers for Sale Near Me in Zimbabwe
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

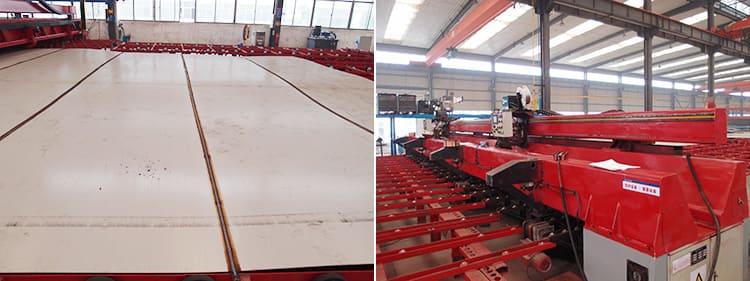

1. The tank body is automatically welded by an advanced large-scale special welding machine.
2. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
3. Water-filled test equipment Water tank: To ensure the high seal of tank body and avoid the leaks oil.
4. The waved board reduces the impact of the liquid on the tanker.
5. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
