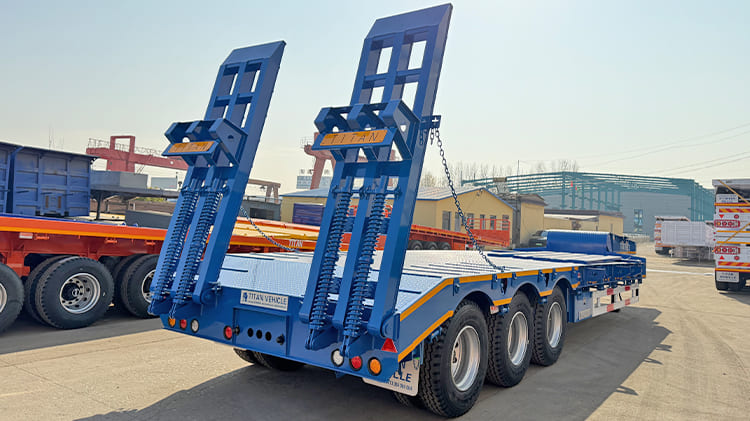

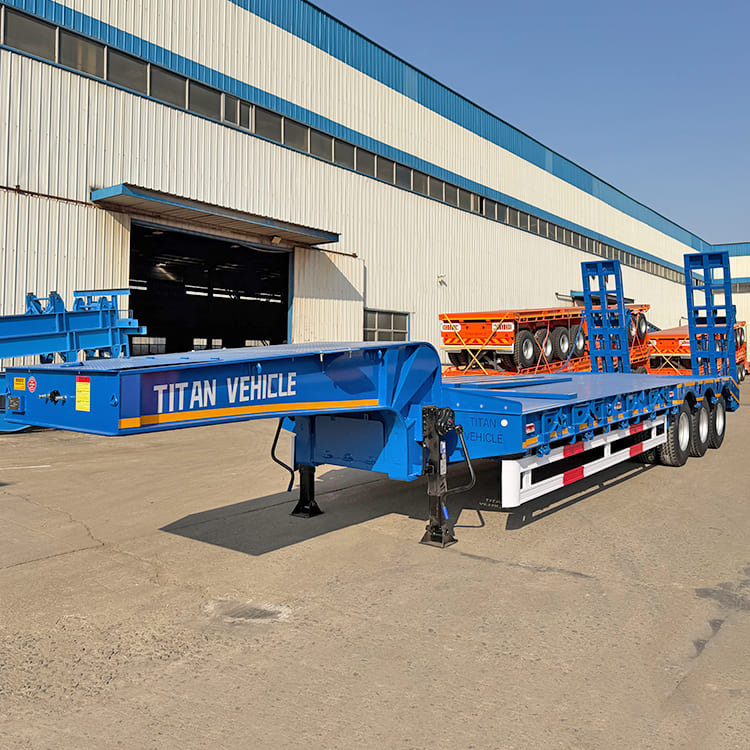

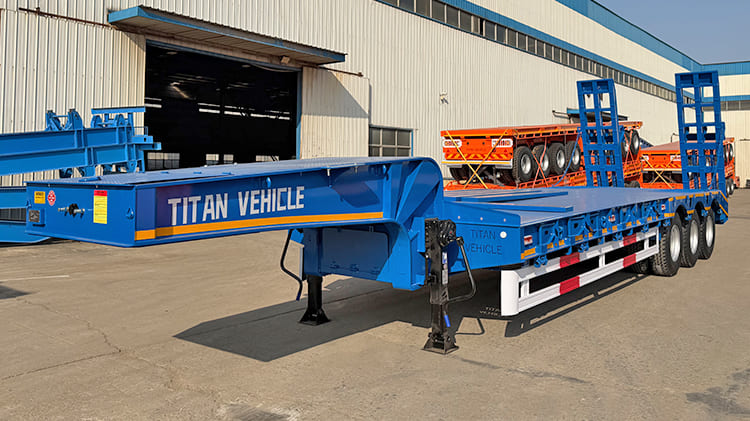

The tri axle low loader trailer for sale adopts an open-frame structural layout that eliminates conventional side panels and roof components. Heavy construction machinery, industrial equipment, and oversized components can be loaded directly onto the deck without clearance constraints, making the low loader trailer highly adaptable for complex logistics operations.

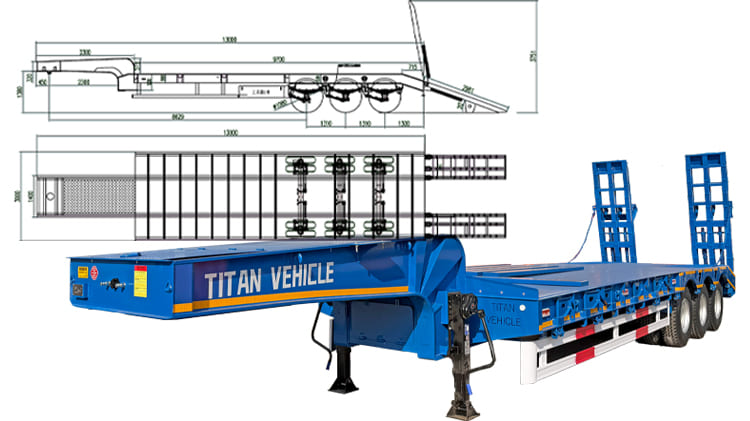

Overall Dimension: 13000mm*3000mm*3400mm
Load Capacity: 60 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton, BPW
Tire: 12 units, 12R22.5
Ramp: thickened spring ramp
Landing Gear: 28 ton
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp
To ensure product integrity during international delivery, TITAN applies a comprehensive protective packaging process to every tri axle low loader trailer for sale before shipment. All exposed steel surfaces are treated with a high-performance anti-corrosion wax that forms a protective barrier against moisture, salt, and oxidation. Afterward, the entire low loader trailer is securely wrapped with heavy-duty waterproof tarpaulin. This dual-layer protection effectively shields the trailer from sea spray, humidity, and harsh marine environments, ensuring it arrives in Namibia in factory condition and ready for immediate deployment.
At the core of the low loader trailer for sale is a high-strength alloy steel main beam engineered to withstand intense load pressure. Compared with standard carbon steel, this advanced material offers higher yield strength and superior tensile resistance.
The result is a rigid and durable chassis capable of sustaining long-term heavy-duty operation without deformation. This structural reliability is particularly important for transport routes in Namibia, where extended distances and uneven terrain place constant stress on hauling equipment.

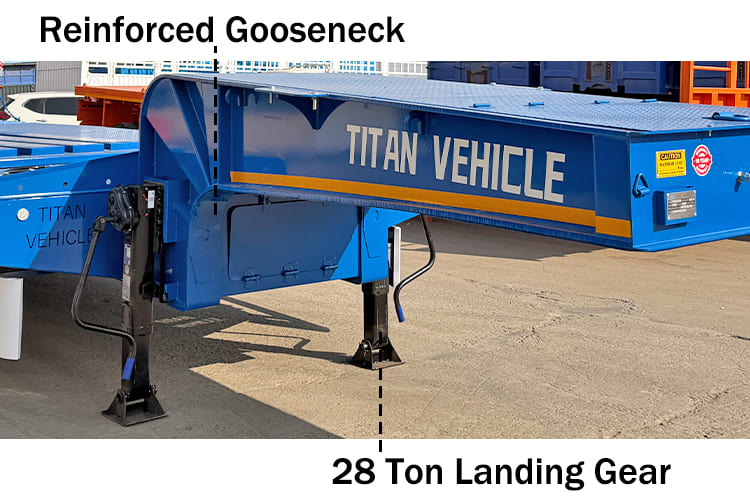

The gooseneck section features a double-layer reinforced structure designed to resist concentrated stress. This reinforcement minimizes torsional deformation and enhances overall chassis rigidity. By improving load transfer between the tractor unit and the trailer body, the tri axle low loader trailer for sale maintains excellent balance and safety, even when operating at maximum capacity on challenging road surfaces.
Supporting the main beam is a network of high-strength steel crossbeams positioned at precise 500 mm intervals. These cross members work together with diagonal bracing to distribute weight evenly across the frame.
This optimized load-sharing structure reduces fatigue at high-stress points and significantly extends the service life of the low loader trailer. For operators in Namibia, where road conditions may include gravel paths, mining access roads, and undeveloped routes, this reinforced underframe ensures dependable long-term performance.
The landing gear system is another critical element of the low loader trailer for sale. Designed with a lifting capacity of 28 tons and a static load rating of 60 tons, it provides stable support during coupling and uncoupling operations. The enlarged base plate distributes pressure across multiple directions, preventing sinking or tilting on soft ground such as sand, mud, or loose gravel—conditions frequently encountered at construction and mining sites in Namibia.

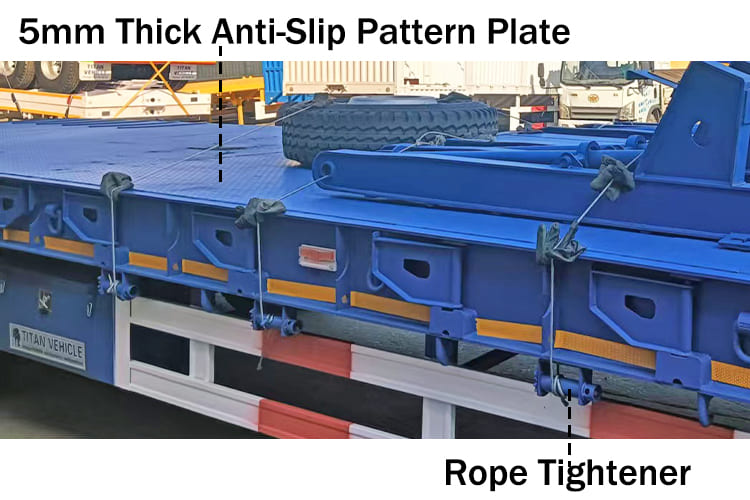

Cargo security is carefully addressed throughout the tri axle low loader trailer for sale design. Continuous side-mounted rope tensioners are installed along both sides of the trailer, offering multiple anchoring points for securing heavy machinery.
The deck surface is constructed from 5 mm thick patterned steel, delivering higher friction and improved grip compared with thinner flooring options. At the rear, layered anti-slip bars further stabilize equipment during loading and transit, reducing movement risk on rough terrain.
The suspension system of the low loader trailer employs a heavy-duty mechanical spring configuration made from high-strength steel. This system effectively absorbs road shocks and reduces vibration, protecting both the cargo and the trailer structure. Whether traveling on highways or uneven rural roads in Namibia, the suspension maintains stable handling and consistent performance over time.

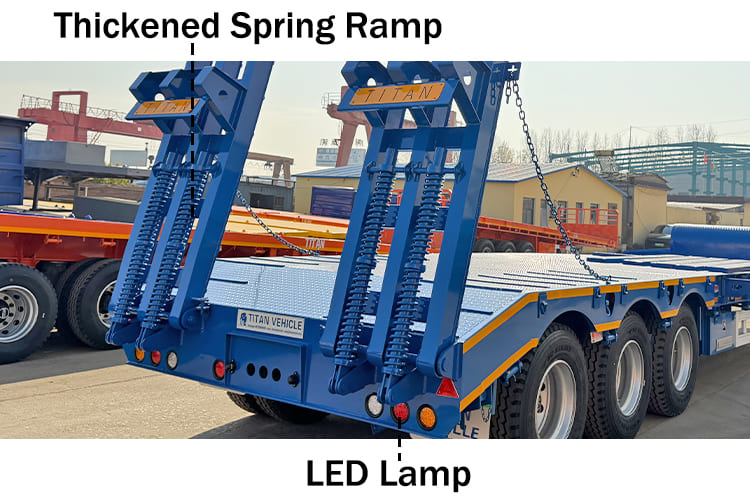

A key operational advantage of the low loader trailer for sale is its upgraded spring-assisted ramp system. Manufactured from 16 mm thick steel, the ramps feature an adjustable angle mechanism that cushions impact during loading. This design allows smooth equipment transfer under heavy loads and can be operated efficiently by a single person, improving safety, speed, and overall productivity for demanding transport operations.
