Product description:

Tri axle semi side tipper trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into tri axle semi side tipper trailer and rear tipping trailer. you can use side dump trailer to help save space.

The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.

Tri axle semi side tipper trailer suitable for large workplaces, Side Tipper Trailer maximum carrying capacity can reach 80-100tons.

tri axle semi side tipper trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

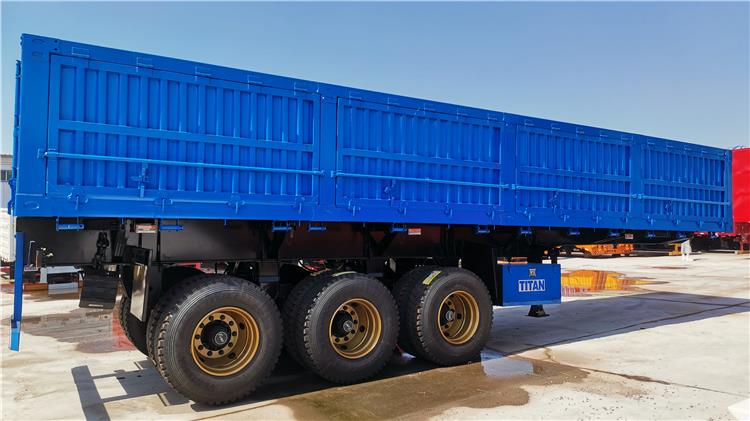

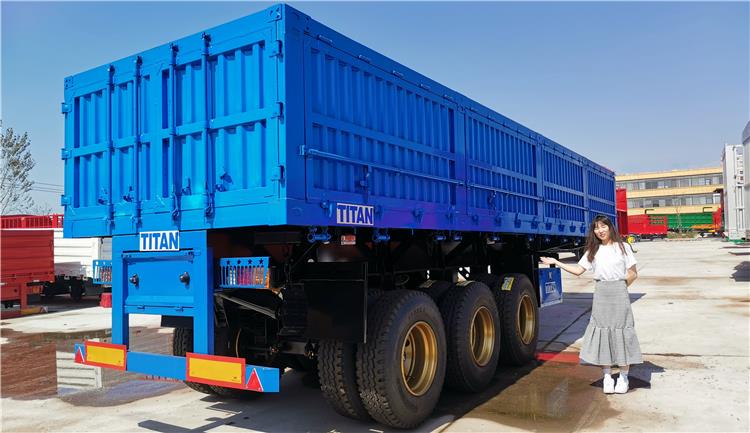

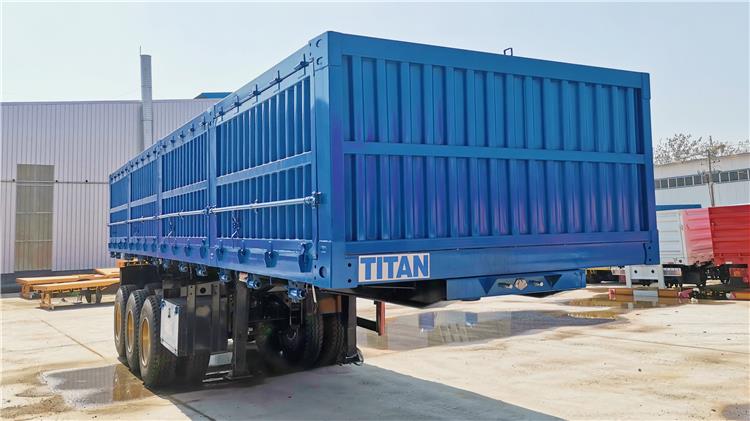

Tri Axle Semi Side Tipper Trailer for Sale In Papua New Guinea - TITAN VEHICLE

Tri Axle Semi Side Tipper Trailer for Sale In Papua New Guinea - TITAN VEHICLE

Tri Axle Semi Side Tipper Trailer for Sale In Papua New Guinea - TITAN VEHICLE

Specification:

Dimension: 11000mmx2500mmx3200mm

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder

Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Accessories: One standard tool box, one rocker handle, one Shaft wrench

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.
