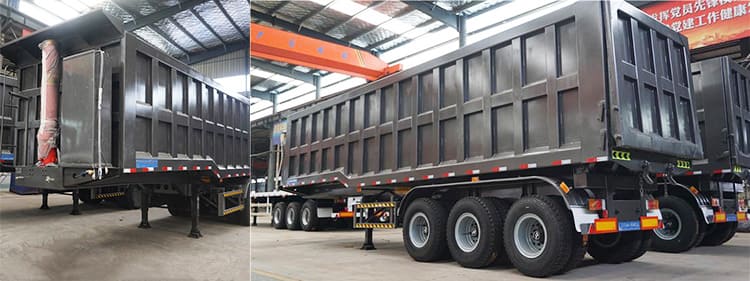

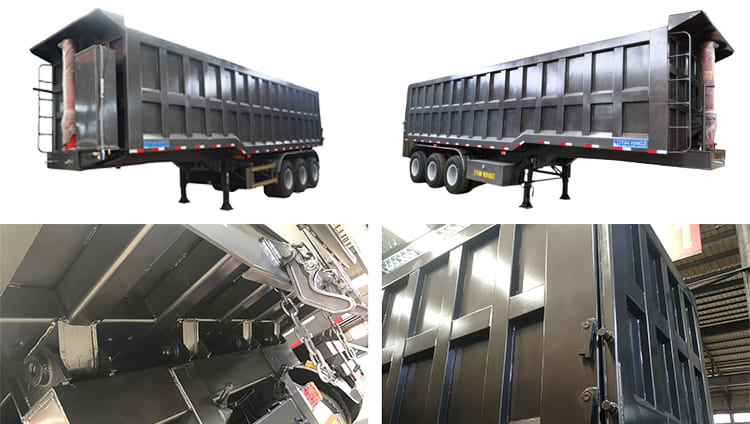

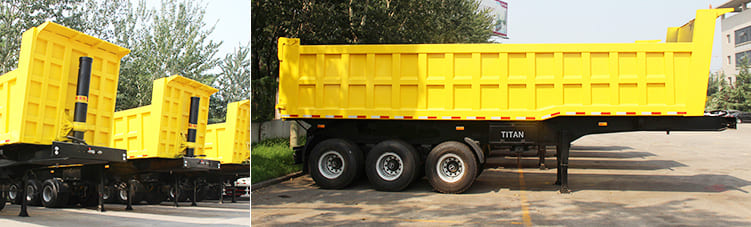

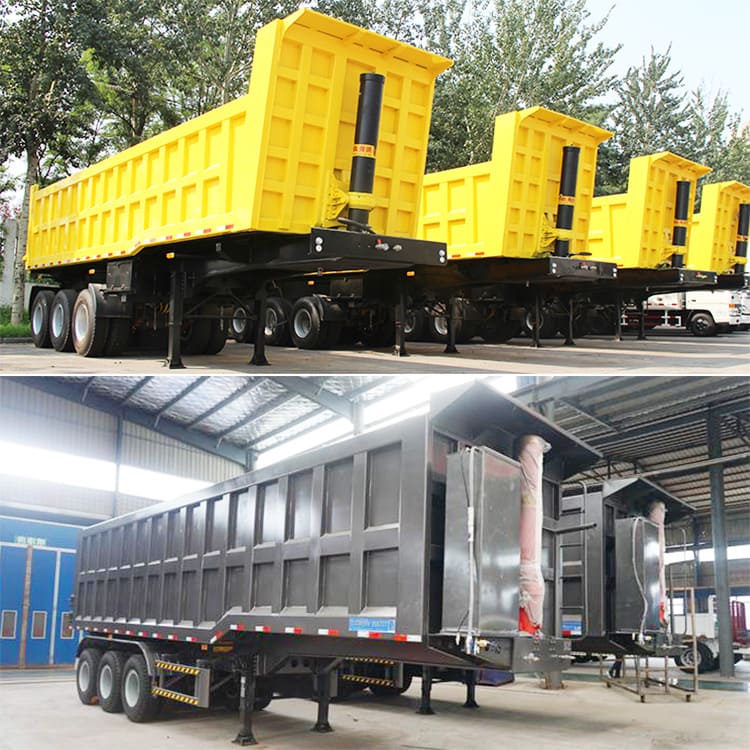

The main beam of TITAN tri axles hydraulic dump trailer is designed with double plates, which have stronger carrying capacity; it is not easy to damage; The heavy-duty cylinder of 33cbm hydraulic dump trialer with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
We use well-known brand parts on the hydraulic dump trailers, such as FUWA, BPW axles. It’s with high performance, and reliable to use.
Tri Axles 33 CBM Hydraulic Dump Trailers for Sale Near Me
Tri Axles 33 CBM Hydraulic Dump Trailers for Sale Near Me
Tri Axles 33 CBM Hydraulic Dump Trailers for Sale Near Me
Dimension: 9000mm * 2500mm *3950mm

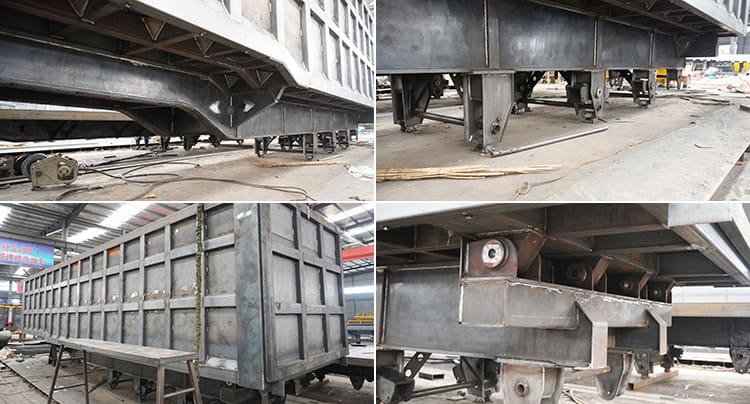

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm
Total volume(m³): 35 CBM
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

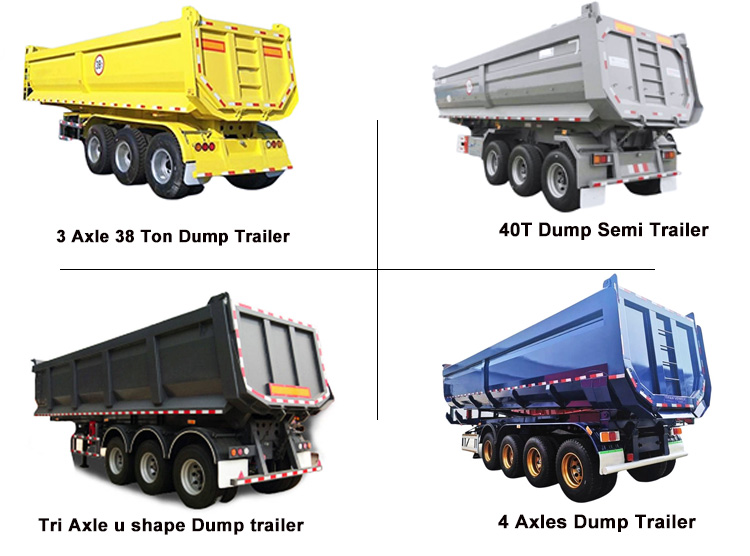

Hydraulic dump trailers for sale can be customized from 15 tons to 80 tons semi dump trailers for sale, 80 tons to 120 tons hydraulic dump trailers, 120 tons-180 tons hydraulic dump trailer prices of different tonnage according to the different cargoes.
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
