Equal Width Low Loader Trailer Price: 18000 USD
The equal width 4 axle 100 ton low loader trailer is a "heavy-duty" semi-trailer specifically designed for transporting ultra-heavy and ultra-large equipment. Compared to ordinary widened or recessed beam trailers, the equal width design maximizes the utilization of the entire vehicle's work platform space and provides greater structural stability.
The equal width 4 axle 100 ton low loader trailer is primarily used in construction materials, mining, and large-scale infrastructure projects. The equal width 4 axle 100 ton low loader trailer maintains the same width between the body and the outer edge of the tires (typically 3.0m - 3.2m), resulting in a flat and unobstructed load-bearing platform, avoiding the awkwardness of traditional recessed beam trailers where wheel arches restrict cargo placement.
The low loader for sale significantly increases the effective loading area, making it particularly suitable for ultra-heavy equipment with wide chassis or irregular structures.

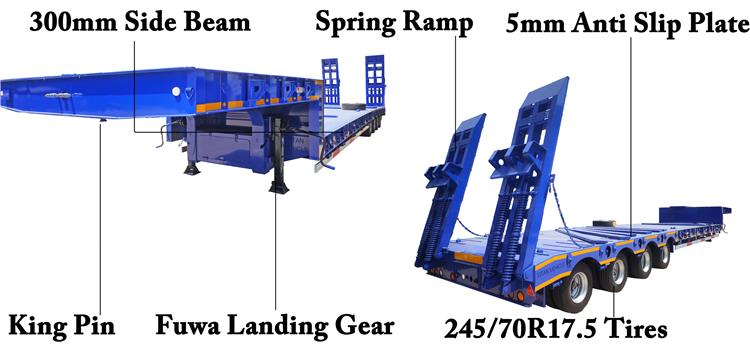

4 Axle 100 Ton Equal Width Low Loader Trailer for Sale In Tanzania

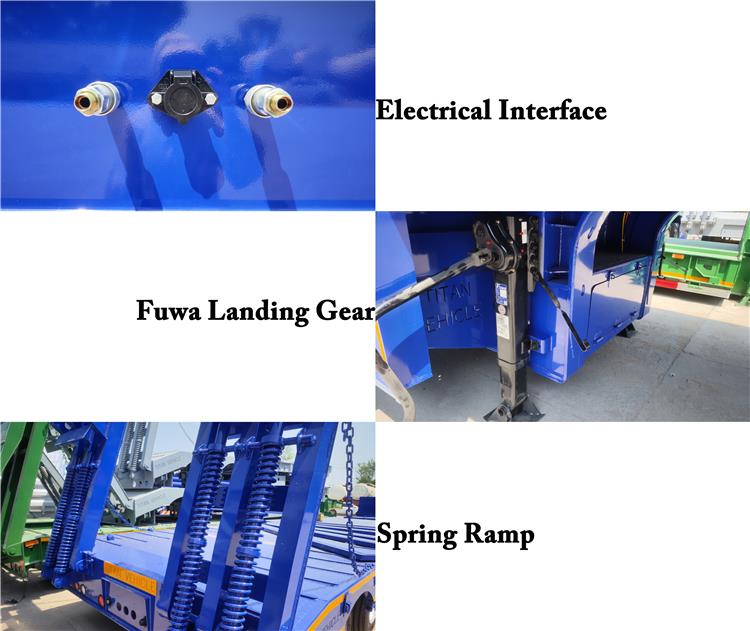

4 Axle 100 Ton Equal Width Low Loader Trailer for Sale In Tanzania

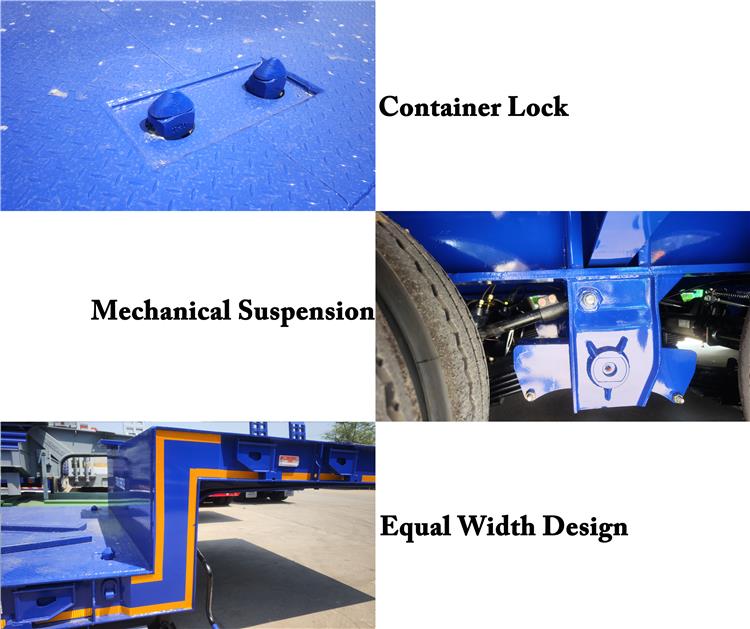

4 Axle 100 Ton Equal Width Low Loader Trailer for Sale In Tanzania

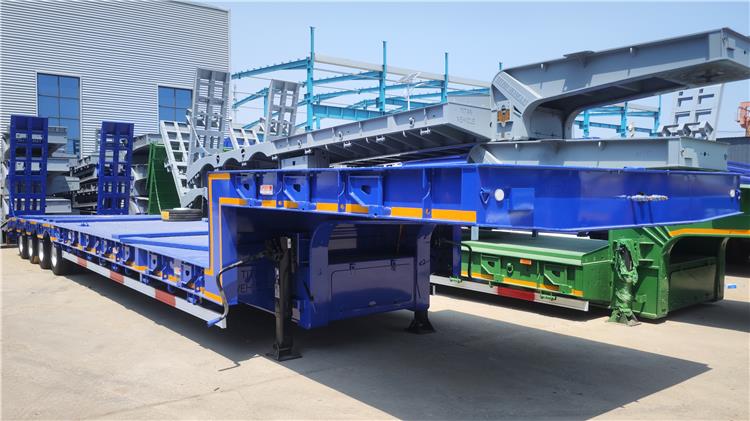

4 Axle 100 Ton Equal Width Low Loader Trailer for Sale In Tanzania

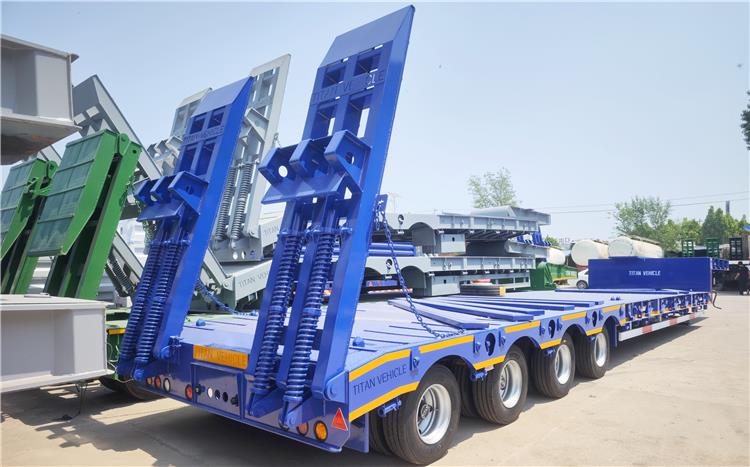

4 Axle 100 Ton Equal Width Low Loader Trailer for Sale In Tanzania
Specification of Low Loader Trailer
Dimension(mm): 16000x3000x1710mm
Loading capacity(ton): ≤100T
Axles: 4 axles, TITAN Brand
Material: Q550D Steel
Bottom Platform: 5mm thick checkered plate
Tire: 16 units, 245/70R17.5 Tires
Suspension: Mechanical Suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing gear: Fuwa brand
Ramp: Spring Ladder
Kingpin: JOST brand
Valve: WABCO valve
Advantage of Low Loader Trailer
The equal width 4 axle 100 ton low loader trailer utilizes a main beam structure welded from HG60/Q690/T700 high-strength steel, exhibiting excellent bending and torsional resistance, ensuring the main beam will not bend or collapse under a 100-ton maximum load.
The low loader is equipped with 4×13T/16T/20T heavy-duty axles (such as BPW, FUWA, or custom-designed axles). The equal width 4 axle 100 ton low loader trailer features a multi-plate heavy-duty mechanical leaf spring suspension (or optional air/hydraulic balance suspension) to evenly distribute axle load, improving its ability to traverse complex road conditions.
The rear of the equal width 4 axle 100 ton low loader trailer is equipped with a dual-circuit hydraulic ladder or a thickened folding mechanical ladder with a small inclination angle (usually less than 15°), facilitating the smooth self-climbing of large tracked equipment onto the work platform.
The equal width 4 axle 100 ton low loader trailer can be equipped with gooseneck anti-slip strips, side extension structures, wireless remote-controlled hydraulic ladders, or steering axles to reduce the turning radius, depending on market demand.
Its durability and adaptability to harsh road conditions are specifically designed for unpaved roads (mining areas, rural dirt roads, construction sites). The chassis undergoes anti-corrosion sandblasting and multiple topcoat treatments, resulting in strong impact and corrosion resistance.
The equal width 4 axle 100 ton low loader trailer for sale emphasizes its high-strength main beam and seismic balance in harsh road conditions, which are precisely the performance characteristics most valued by local engineering contractors.
