4 Axle Container Chassis Trailer Price: 9500 USD
The 4 axle container chassis trailer is designed for transporting high-density heavy cargo such as containers and multi-container combinations. It is commonly used in international and port consolidation shipments where road axle load limits are extremely strict.
The 4 axle container chassis for sale features longitudinal beams made of high-strength steel (such as T700), heavy-duty axles (such as 13-16T class), and 8-12 ISO turn locks, allowing for flexible securing of 20-foot or 40/45-foot containers.
4 Axle Container Chassis Trailer for Sale In Barbados
4 Axle Container Chassis Trailer for Sale In Barbados
4 Axle Container Chassis Trailer for Sale In Barbados
4 Axle Container Chassis Trailer for Sale In Barbados
Specification of Container Chassis Trailer
Dimension(mm): 13500x2500x1620mm
Loading capacity(ton): ≤60T
Axles: 4 axles, TITAN Brand
Tire: 16 units, 12R22.5

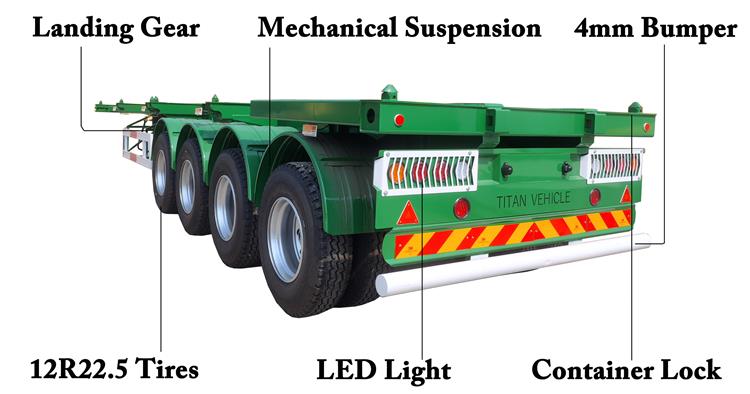

Suspension: Mechanical suspension

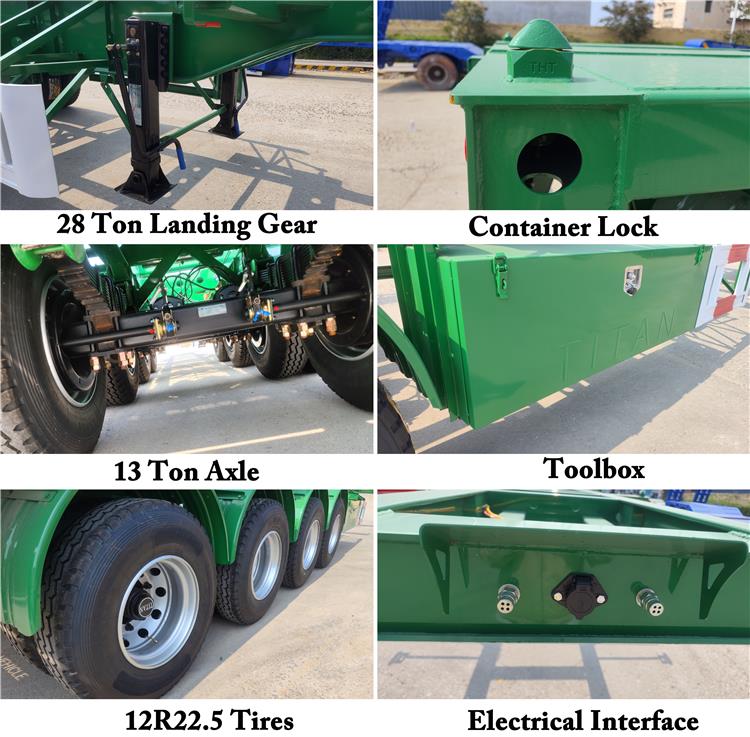

Landing gear: 28 ton
Brake system: WABCO
Advantage of Container Chassis Trailer
The 4 axle container chassis trailer offers significant advantages in load capacity, axle load distribution, and traffic compliance. It is commonly used to simultaneously load two 20-foot containers or one 40/45-foot heavy-duty container. The four axles effectively distribute the axle load, making it ideal for high-intensity, high-load, and intensive transport between docks, yards, and rail freight stations. The 4 axle trailer features a front axle lift and utilizes high-strength main beams made of high-strength steel (such as Q345B, T700, HG60). The longitudinal beams are constructed using I-beam automatic submerged arc welding, ensuring resistance to bending and sinking when carrying heavy loads.
The 4 axle mechanical suspension/air suspension (including front axle lift) of the 4 axle container chassis trailer allows for flexible arrangement of container turnlocks, accommodating rapid locking and securing of various container sizes.
The 4 axle container chassis for sale utilizes a 12-ISO high-quality rotary locking system (supporting 1x40ft, 2x20ft, and 1x20ft mid-mounted) with all-wheel braking on all four axles, significantly shortening braking distance and improving safety under heavy loads. The rated load capacity of the 4 axle container chassis trailer typically reaches 60-80 tons, far exceeding traditional 3-axle vehicles (usually 40-50 tons).
With the first axle lifting function, the 4 axle container chassis trailer can raise the first axle when traveling empty or lightly loaded, effectively operating like a 3 axle vehicle, reducing tire wear and saving fuel. The 4 axle container chassis for sale employs a gooseneck structure design, lowering the overall height and center of gravity after container loading, improving anti-rollover capabilities during high-speed driving and cornering.
The 4 axle container chassis trailer features a reinforced chassis structure, through-beams, and outriggers (such as JOST/FUWA 28T linked operation outriggers) for harsh road conditions and high-intensity operations, resulting in a longer service life.
