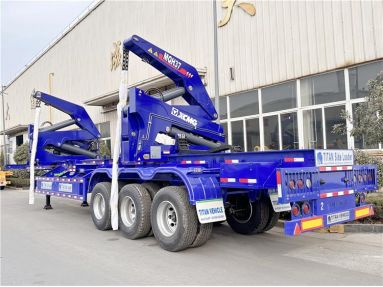

CN Hammar 40ft Container Loader Trailer Price: 46500 USD
Hammar 40 ft container loader trailer is an extremely important and efficient piece of equipment in container logistics, multimodal transportation, and special transportation operations. Hammar 40 ft container loader trailer completely eliminates the dependence on large port cranes or traditional forklifts.

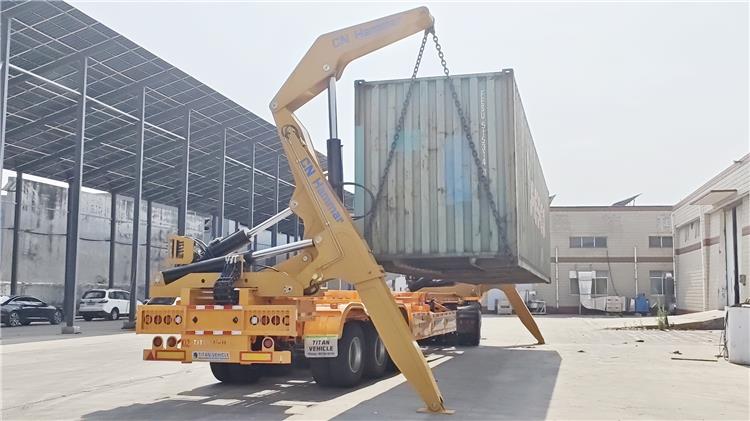

Hammar 40 ft container loader trailer can directly unload 40ft (or 2 units of 20ft) containers onto the ground. Hammar 40 ft container loader trailer can directly pick up and transfer containers between railway freight wagons and road trailers, greatly expanding the transportation coverage of railway containers.
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
CN Hammar 40ft Container Loader Trailer for Sale In Guyana
Specification of Hammar Side Loader
Crane: CN Hammar Brand
Loading capacity: 37 Ton
Load: 20 ft and 40 ft container
Power source: Diesel engine
Remote control: 1 unit
Chains: 2 chains+4 hooks

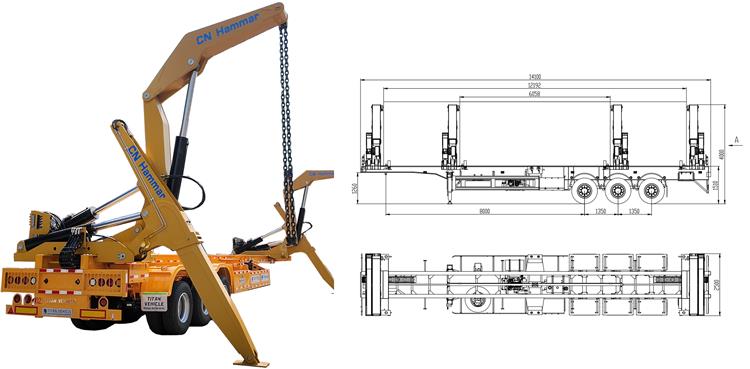

Dimension: 14100*2500*4200mm
Axles: 3 axle*13 ton;16 tons brake lining

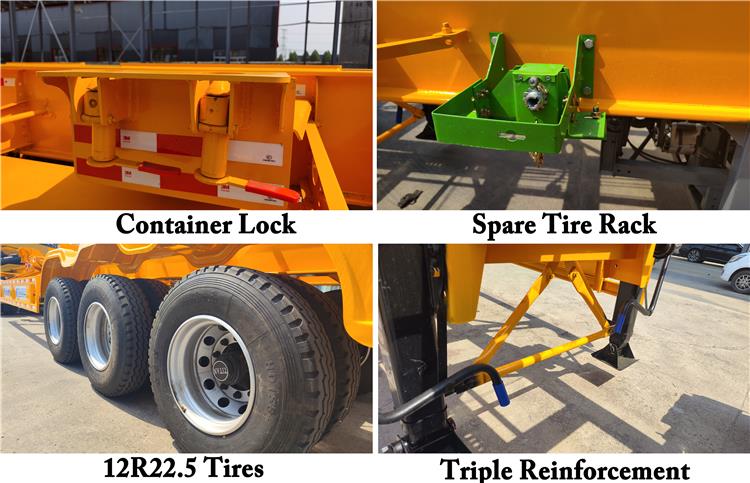

Tires: 12 pcs,12R22.5
Landing gear: FUWA
Braking system: WABCO Emergency valve
Suspension: Mechanical Suspension
Kingpin: 2 inch and 3.5 inch
Advantage of Hammar Container Loader Trailer
Hammar 40 ft container loader trailer supports double stacking of containers on the ground, which is highly practical for logistics parks with limited space and the need to temporarily increase container storage density.
Not only transporting standard containers, by using special lifting attachments and Flat-rack containers, Hammar 40 ft container loader trailer can also be used for lifting and transporting heavy construction machinery, logs, helicopters, heavy military equipment, and other special materials.
The reason why Hammar 40 ft container loader trailer has become a benchmark in the global side loader field lies in its deeply customized chassis and hydraulic system with extremely refined engineering design.
The lifting spreader is equipped with specially designed hydraulic support legs, which can extend and firmly contact the ground or Companion vehicle chassis during lifting operations. Even on uneven ground, beside railway tracks, or on extremely soft foundations, the support legs can be adjusted to ensure a stable center of gravity of the whole trailer, providing excellent anti rollover and anti sliding performance.

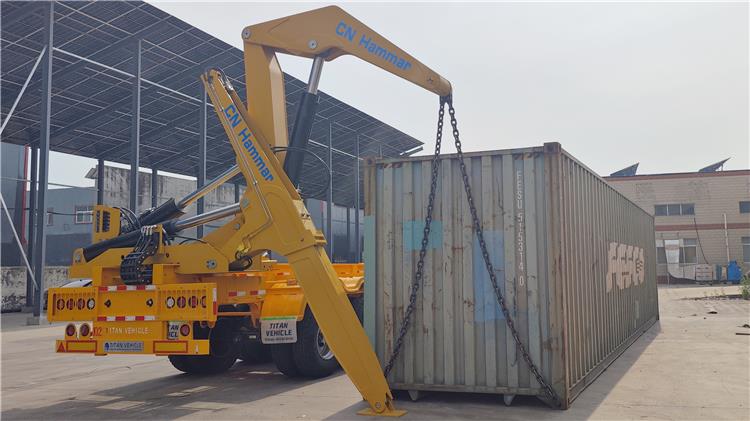

The standard 40ft model of Hammar 40 ft container loader trailer usually has a rated maximum lifting capacity of 36 tons to 45 tons. Hammar 40 ft container loader trailer uses four point chain lifting systems or dedicated Twist Lock Spreader lifting attachments, enabling highly stable “horizontal lifting”. Even if the cargo center of gravity inside the container is offset, the lifting arm can adjust through an independent hydraulic balance system to ensure that the container remains level during lifting. This is especially important for high value, fragile, or dangerous goods (ADR) transportation.

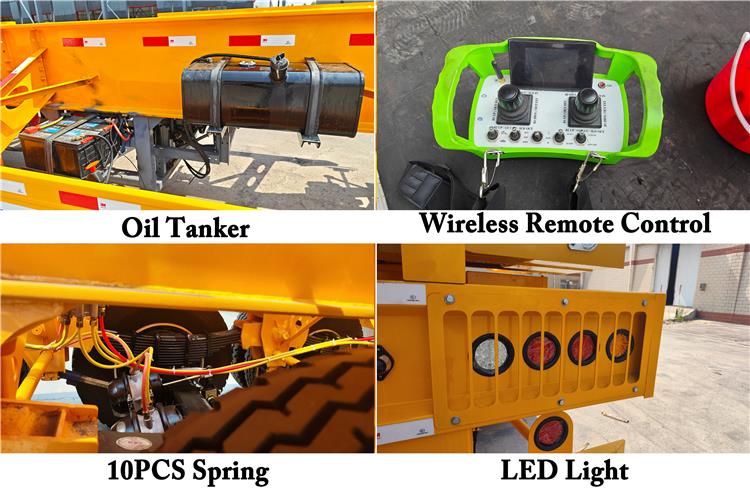

Hammar 40 ft container loader trailer is equipped with international leading brand wireless proportional remote controllers, such as Scanreco. It enables millimeter level precise control of the lifting arm movement, greatly improving on site operational safety.
Hammar 40 ft container loader trailer can also be equipped with an independent diesel auxiliary engine power unit (such as Kubota) installed on the trailer, making it independent from the tractor unit and allowing any truck head to connect and operate directly.
Hammar 40 ft container loader trailer can freely switch between 20ft and 40ft lengths to improve urban flexibility, or it can be configured with a standard 3 axle/4 axle fixed chassis.
