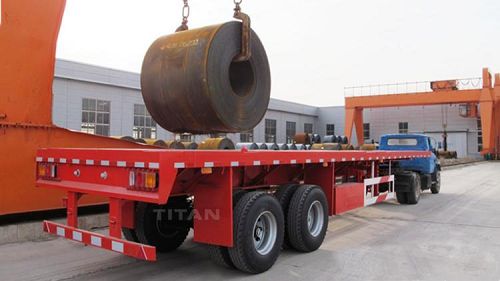

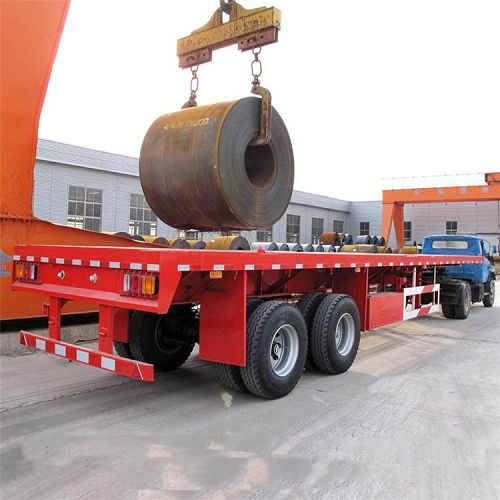

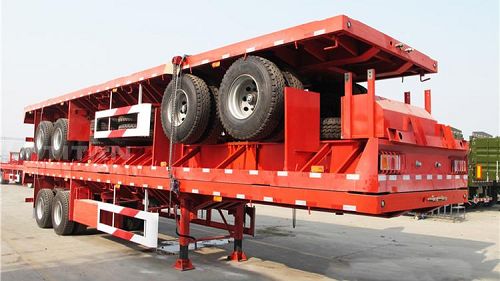

The 40 feet flatbed trailer with bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the car body.
Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.
Buy New 40 Feet Semi Flatbed Trailers With Bogie Suspension for Sale Near Me in Nigeria
Buy New 40 Feet Semi Flatbed Trailers With Bogie Suspension for Sale Near Me in Nigeria
Buy New 40 Feet Semi Flatbed Trailers With Bogie Suspension for Sale Near Me in Nigeria
Tare Weight: About 6.7T
Dimension(mm): 12500x2490x1550
Loading capacity(ton): ≤45T
Axles: 2 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

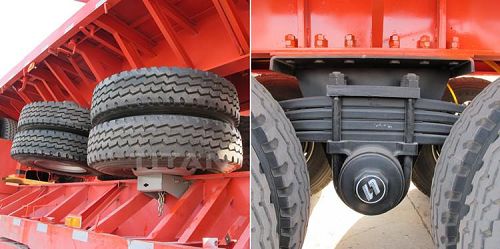

Suspension: Bogie suspension
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN new 40 feet flatbed trailer with bogie suspension adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. TITAN new 40 feet flatbed trailer with bogie suspension uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.
4. Also the TITAN new 40 feet flatbed trailer with bogie suspension floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. To make sure the service life of the TITAN new 40 feet flatbed trailer with bogie suspension, all the spare parts we adopt are world famous brand.
