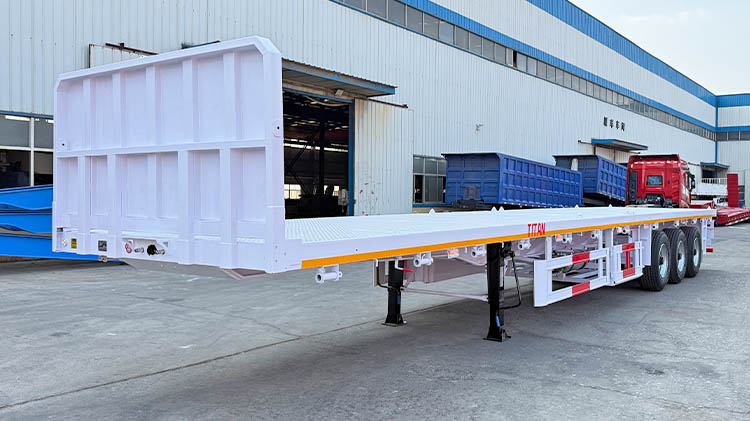

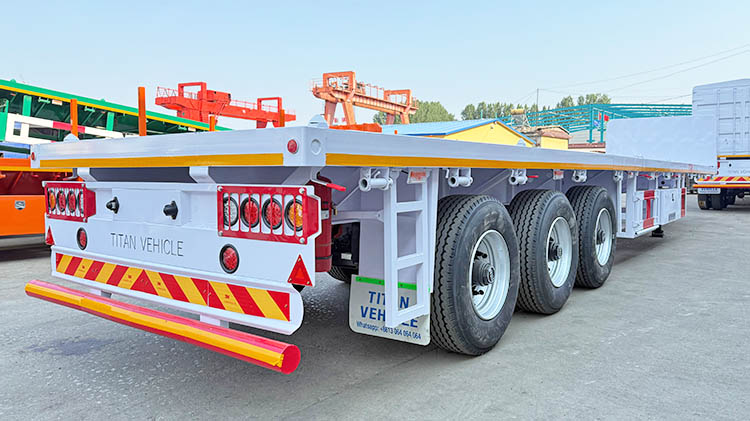

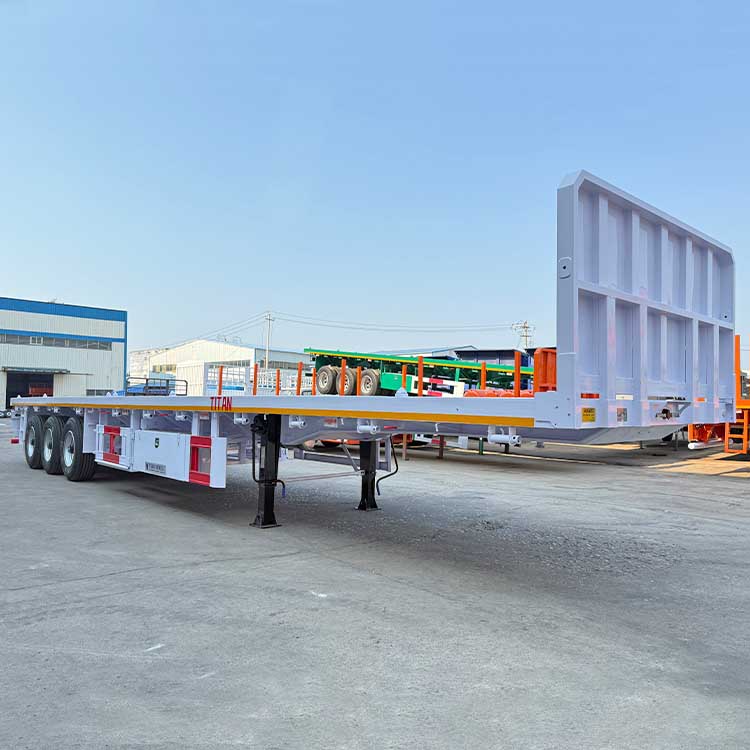

The 40 ft flatbed trailer is built for dependable performance across a wide range of terrain, from inland gravel paths to humid coastal regions. Its design accommodates both containerized goods and bulk materials, providing adaptable transport solutions that meet different logistical demands and make it a popular choice for various applications.
Designed to carry both 20-foot and 40-foot standard containers, the flatbed trailer for sale near me plays a key role in linking port terminals with inland logistics routes. Its structure is engineered to distribute the cargo load evenly across the entire frame, which helps reduce pressure on any single point. The TITAN flatbed trailer approach minimizes the risk of structural fatigue or deformation over time, contributing to longer service life and maintaining the stability during transportation.
Dimension: 12500mm*2500mm*1550mm
Trailer Future: with front board
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 385/65R22.5, 12 units
Suspension: mechanical suspension
Leaf Spring: 10 layers
Bumper: 4mm thickened bumper
Landing Gear: 28 ton
Lamp: LED lamp with anti-theft net

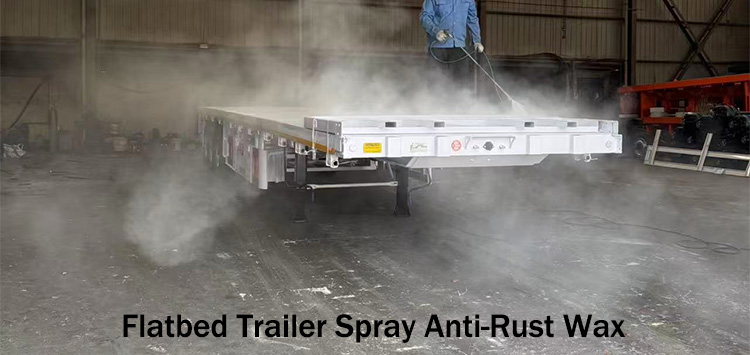

To protect against rust and corrosion, especially during extended sea journeys, TITAN adopts a full-range anti-corrosion treatment before shipment. Each 40 ft flatbed trailer is coated with protective wax and covered with waterproof wrapping.
Depending on the specific transport route and operational needs, Kenya buyers can select between container shipment or roll-on/roll-off (RORO) transport. The flexible delivery arrangement caters to various logistics timelines and helps reduce the overall turnaround time for deployment.
The core structure of the TITAN 20 ft flatbed trailer emphasizes both strength and durability. The main beam is made from Q355 low-carbon high-strength alloy steel, a material known for its high load-bearing capacity and structural rigidity.
To ensure strong and continuous joints, all frame components are joined using submerged arc welding technology. The welding method enhances the durability of the flatbed trailer for sale near me central frame and increases its ability to withstand long-term stress and vibration.
Additional structural reinforcements are concentrated in critical areas, such as the gooseneck, where loads are most intense. Double-layer reinforcement is applied in these sections to improve pressure resistance and maintain overall stability when handling heavy freight. The combination of quality materials and targeted reinforcement improves the 40 ft flatbed trailer resilience, especially in challenging transportation environments like those in Kenya.

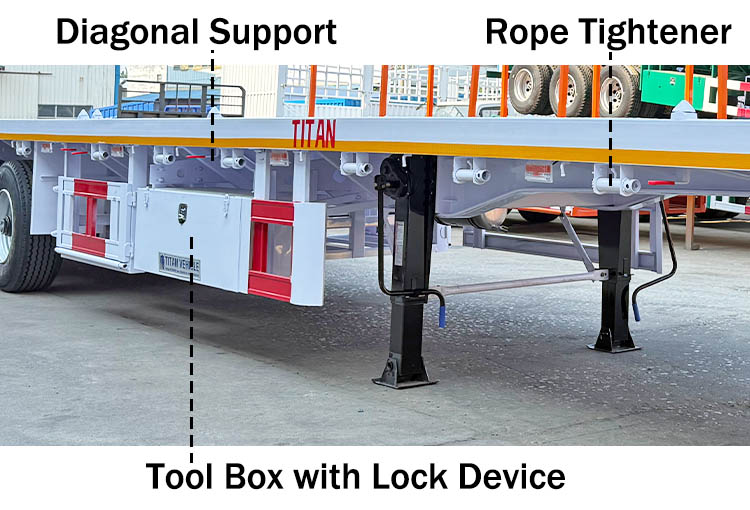

To further enhance chassis stability, TITAN 20 ft flatbed trailer cross members are firmly connected to the main beam with diagonal bracing. The spacing between these braces is kept within 500mm, ensuring balanced force distribution and reducing the chance of frame distortion. Each cross member is constructed from 100mm thick channel steel, enabling the structure to remain dependable under heavy duty operations.
The surface treatment also plays an essential role in extending the flatbed trailer operational lifespan. A powder coating process followed by baking paint application is used, creating a durable and glossy finish.
While more expensive than standard paint, the method offers better resistance to wear, and fading. For sun-intensive climates such as Kenya, the added durability reduces the frequency of repainting and cuts down on maintenance efforts over time.

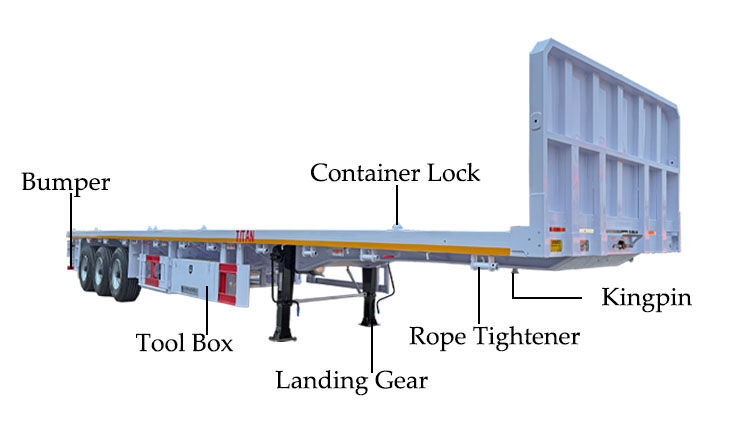

A standout feature of the flatbed trailer for sale near me is its open deck design, which allows for easy handling of both containerized and bulk cargo. The 40 ft flatbed trailer platform is equipped with 12 pre-installed container locks, enabling secure and quick fastening of containers. The setup streamlines the loading process, saves time during operations, and ensures containers stay securely fixed throughout the transportation.

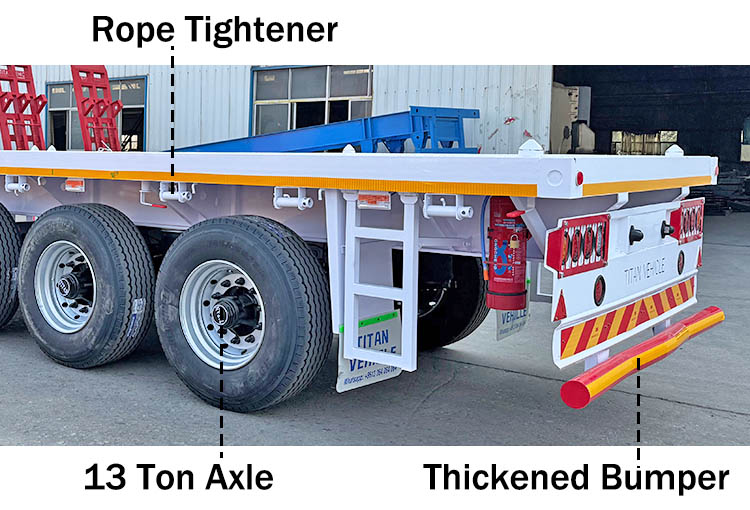

Key to the 20 ft flatbed trailer heavy-haul capabilities are the 13-ton axles, which are built for durability and consistent performance. These axles are well-suited for handling the uneven, gravel-covered roads commonly encountered in Kenya. The improved strength increases the flatbed trailer load capacity—up to 60 tons—and reduces the risk of axle failure caused by overloading or continuous impact, resulting in safer and more stable transport.

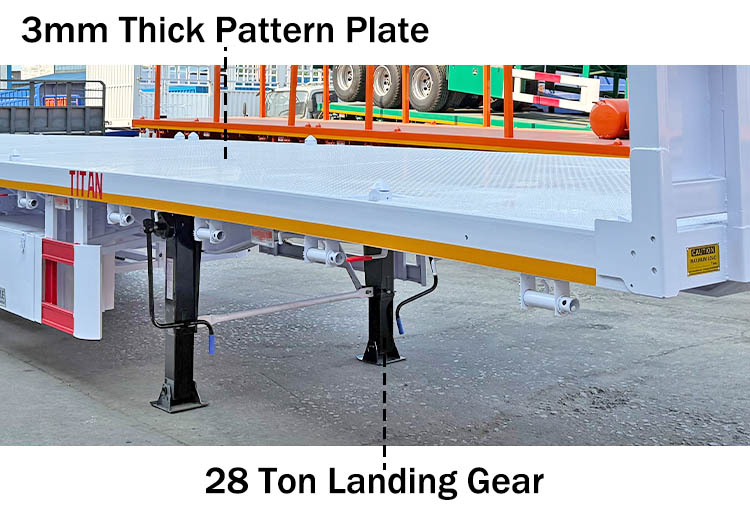

The landing gear on the 20 ft flatbed trailer is built for both durability and ease of use. With a load-bearing capacity of up to 28 tons, provides stable support during loading, unloading, and parking, even on uneven ground. The user-friendly control system allows for straightforward operation, helping ensure safety and efficiency. The simple and intuitive design also makes accessible for operators of all experience levels, enhancing overall practicality for transport teams.
