The extendable semi trailer offers consistent and dependable performance across a wide range of environments, from dry, dusty inland roads to humid and salt-laden coastal regions. Its ability to transport, making it a practical and preferred option for transporters operating under Philippines diverse conditions.
Specifically developed for the efficient transportation of standard containers, the extendable semi trailer for sale is widely utilized in seaports, warehouse hubs, and intermodal freight systems. Its design supports streamlined cargo handling procedures, minimizing the time required for loading and unloading, which in turn helps reduce operational costs.
In addition to container transport, the 20m extendable semi trailer type is also well-suited for carrying bulk cargo, allowing logistics operators to maximize the equipment utility across different types of haulage tasks.

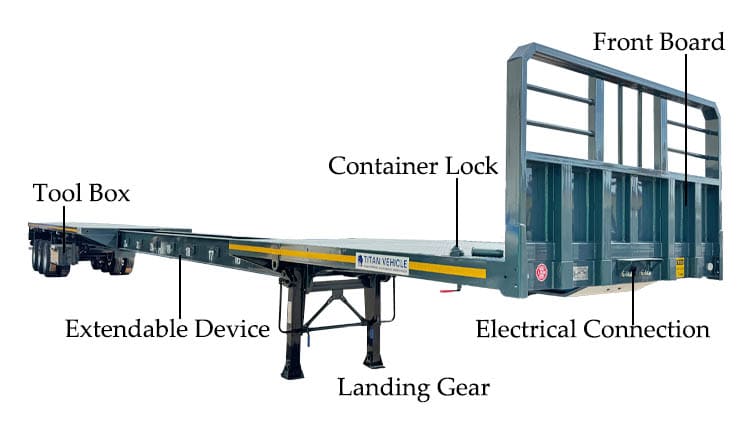

20m Extendable Semi Trailer for Sale in Philippines
20m Extendable Semi Trailer for Sale in Philippines
Original Dimension: 12500mm*3000mm*1650mm
Extend Dimension: 24000mm*3000mm*1650mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate

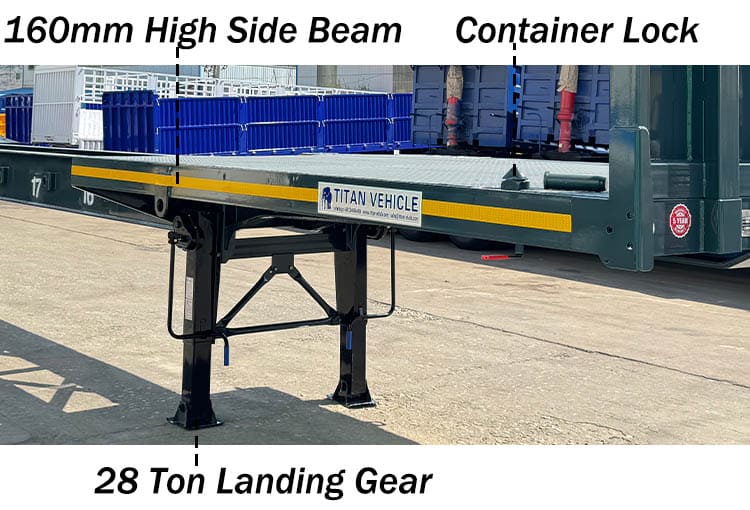

Landing Gear: 28 ton x 2
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units
Leaf Spring: 10 layers
Suspension: mechanical suspension
Bumper: thickened
Lamp: LED Lamp with net
A key feature of the 20m extendable semi trailer manufacturing process is the use of automatic submerged arc welding. The technology enhances the consistency and strength of weld joints throughout the 20m extendable semi trailer structure, creating a more stable and robust frame. In contrast to manual welding, the automated process ensures greater uniformity and bonding strength, significantly reducing the risk of cracks or failure when the extendable semi trailer is under stress.
The structural strength of the 3 axle extendable semi trailer for sale is further reinforced by its use of 100mm thick channel steel in the cross beams. The thicker material strengthens the chassis and helps prevent warping or deformation when operating under full load conditions in Philippines.

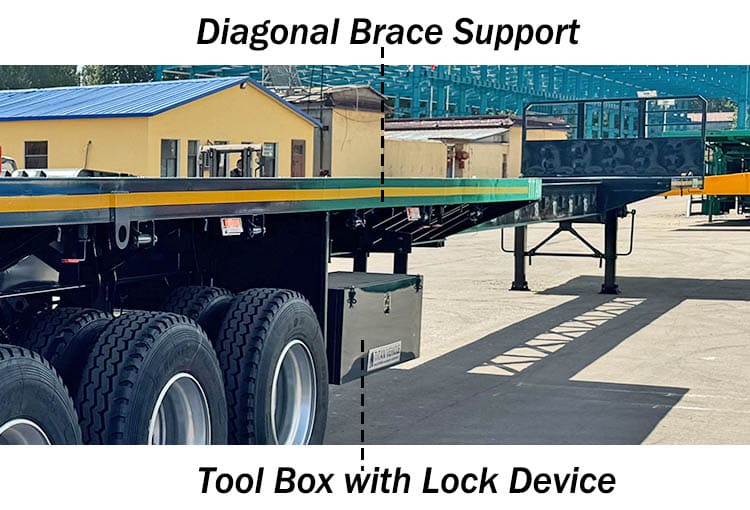

Diagonal bracing is installed between the cross beams, using a triangular load-sharing design that connects securely to the main beam. These braces are spaced at intervals no greater than 500mm, helping distribute pressure evenly throughout the structure and improving resistance to flexing, especially under the strain of dense, heavy cargo.

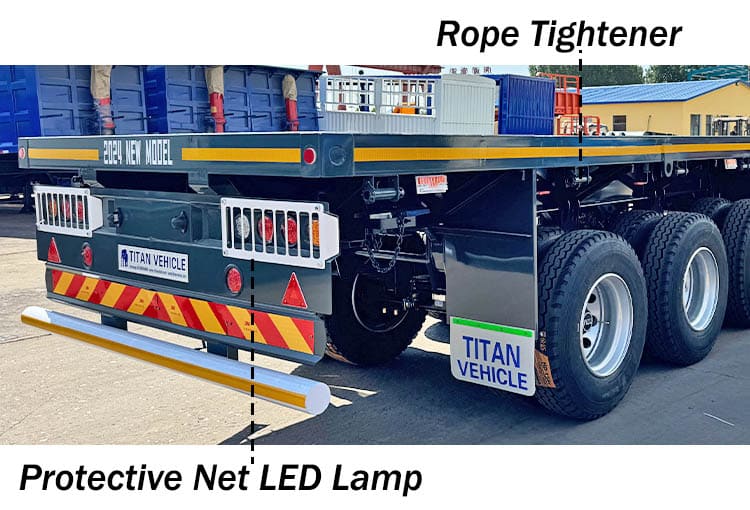

Along the sides of the 20m extendable semi trailer, multiple rope tighteners are installed as part of an integrated cargo restraint system. These components enable operators to fix cargo at several points along the extendable semi trailer for sale flatbed plate, reducing the chance of movement during sharp turns, sudden stops, or travel over uneven terrain in Philippines. When combined with the non-slip floor and adjustable securing straps, the system greatly enhances overall cargo stability and transport safety.
The extendable semi trailer for sale floor is made from high-strength alloy steel with inherent corrosion resistance and excellent load-bearing capacity. These properties become particularly valuable during prolonged use in harsh climates, such as those in Philippines. The material selection protects the floor from rust and surface degradation, helping to maintain the structural integrity of the extendable semi trailer over the long term.
At the front end of the 20m extendable semi trailer, the traction plate, crafted from a single 12mm-thick steel sheet, forms the connection between the extendable semi trailer and the tractor. The single-piece design ensures uniform stress distribution and strong towing performance. When combined with built-in shock-absorbing components, the traction system protects the extendable semi trailer for sale from the damage typically caused by sudden braking, rough roads, or abrupt directional changes, improving operational safety and reduces the chance of trailer detachment or structural failure.
The suspension system is another core strength of the extendable semi trailer. Constructed with high-tensile steel, includes a multi-layer shock absorption setup that incorporates a 70mm center balance pin and reinforced side supports. The robust design helps absorb road impact and protects both the extendable semi trailer for sale structure and its cargo when navigating Philippines uneven or rugged terrain.
To ensure that each extendable semi trailer arrives at its destination in excellent condition, TITAN applies a comprehensive set of anti-corrosion measures before international shipping. A full-body application of protective wax is the first step, forming a moisture-resistant barrier over the surfaces. After that, each unit is encased in a tailor-made waterproof rain cover. The dual-protection method provides effective defense against saltwater corrosion, sea air, and moisture damage encountered during ocean transport.
