The extendable trailer for sale has been meticulously enhanced to align with Argentina transportation standards while offering a dependable and efficient option for transporting both containerized freight and bulk materials. Built with a reinforced structure, the 6 axle extendable trailer delivers stable performance under a wide range of load conditions.
Its design ensures that when operating at full capacity, weight is spread evenly across the frame. The load distribution is critical for minimizing pressure points that can lead to long term deformation or fatigue in the 6 axles 62 meters trailer structural components.

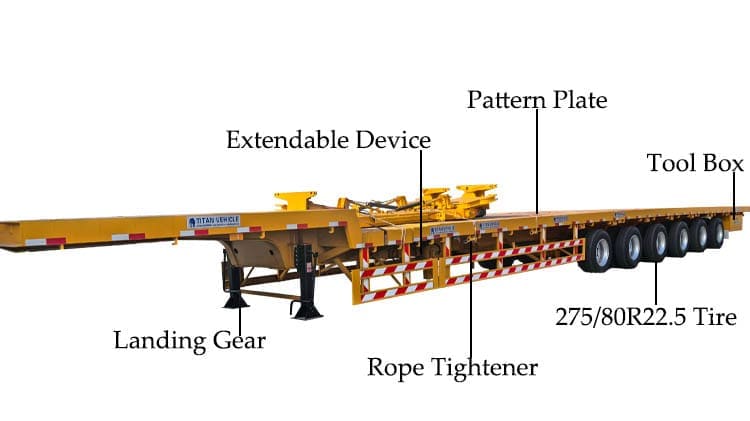

Original Dimension: 24150mm*3000mm*1650mm
Extend Dimension: 65000mm*3000mm*1650mm
Load Capacity: 90 ton

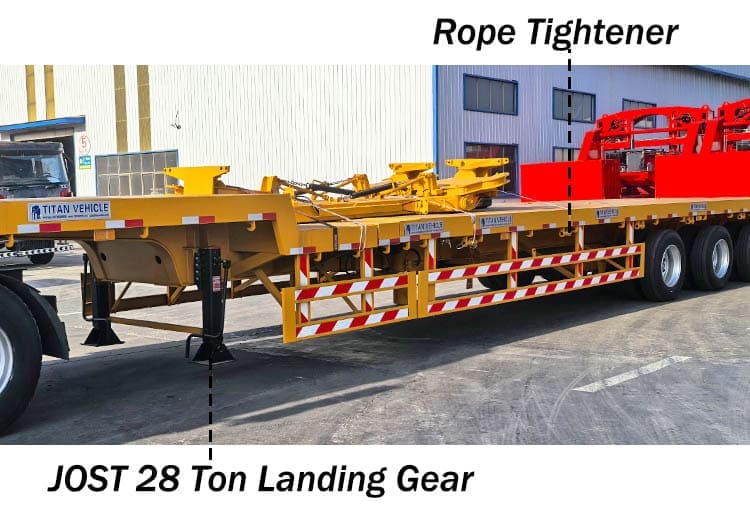

Landing Gear: 28 ton, JOST brand
Axles: 6 axles, 13ton, TITAN brand
Tire: 24 units, 275/80R22.5
Leaf Spring: 10 layers
Suspension: mechanical suspension

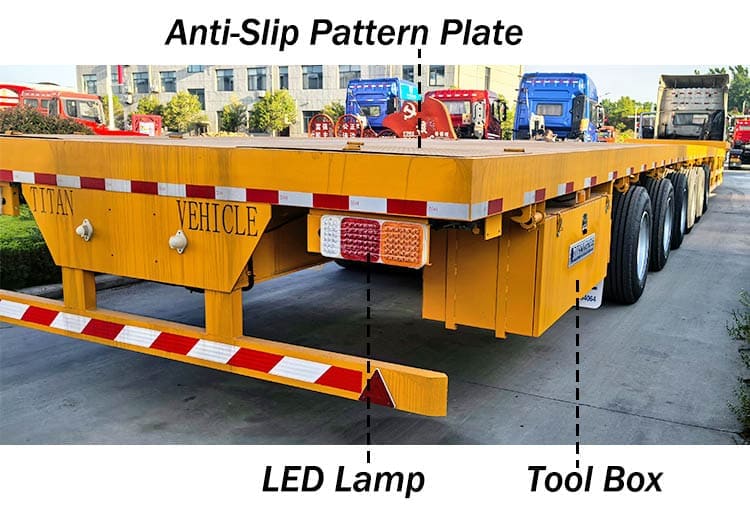

Lamp: LED Lamp
A notable improvement is seen in the external coating of the 6 axles 62 meters trailer. Instead of traditional paint, TITAN utilizes powder spraying combined with a baking finish process. The method significantly increases the surface resistance to environmental wear and fading.
Though the treatment incurs a slightly higher cost during production, provides better surface adhesion, protection against corrosion, and resistance to chipping or peeling. Field use has demonstrated that extendable trailer for sale coated in this way maintain the visual appearance for more than five years, helping operators in Argentina cut down on repainting needs and save money on long term upkeep.
In terms of material selection, the main frame of the 6 axle extendable trailer uses HG60-grade high-tensile alloy steel. The material is widely recognized for its strength, fatigue resistance, and durability under pressure. With its enhanced mechanical properties, allows the extendable trailer for sale to perform reliably under full loads across extended periods.
To support this strength, the cross beams integrated into the chassis are made from 100mm thickened channel steel. These beams provide critical structural support and improve the extendable trailers load-carrying capabilities. Even during heavy duty transport, the 6 axles 62 meters trailer maintains structural integrity, reducing the chances of flexing or warping.
To further improve the trailer's overall frame strength, diagonal bracing is incorporated between the cross beams. These bracing elements form triangular reinforcements that not only connect beams more securely but also help in distributing force across a wider surface. The triangular layout enhances frame rigidity and supports long term stability even during tough working conditions.
All joints and frame sections are welded using an automated submerged arc welding process. The advanced technique ensures that each weld is consistent and deep, avoiding the weak points sometimes found in manual welding. By maintaining high quality welds throughout the frame, the extendable trailer for sale gains a stronger structure capable of withstanding the demands of daily transport in Argentina varied road environments.
The braking system on this 6 axle extendable trailer has also been upgraded for better safety and efficiency. Equipped with 16-ton brake pads, the extendable trailer for sale benefits from quicker response times and increased braking force. These large-capacity pads help reduce the possibility of wheel lock during emergency stops, enhancing tire safety and overall operational control. When operating in unpredictable or challenging road conditions, the advanced braking system can reduce stopping distance by over five meters compared to standard pads.
Additionally, the air brake system uses reinforced high pressure rubber pipes, chosen for the resilience and longer service life. These pipes outperform typical air lines in both durability and reliability and are designed to operate effectively for up to ten years. The extended service life of these components helps reduce repair frequency, offering Argentina transporters a more economical solution in the long run.
To ensure the 6 axles 62 meters trailers arrive in prime condition during overseas transport, TITAN takes protective measures that include a double anti-corrosion strategy. First, a layer of wax is applied over exposed surfaces to defend against moisture and oxidation. Then, a fitted waterproof rain cover is added to shield the extendable trailer from salt-laden air and sea spray during maritime shipping. The packaging system protects both the visual finish and the structural components , making sure reaches Argentina ready for immediate use.
