The detachable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the detachable gooseneck trailer.

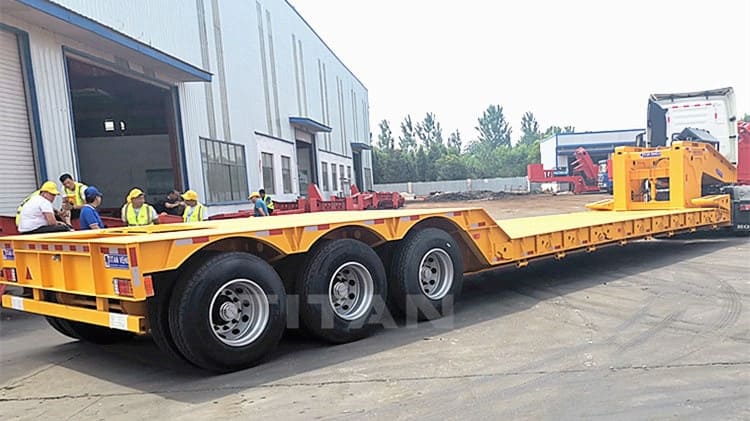

80ton Detachable Gooseneck Trailer

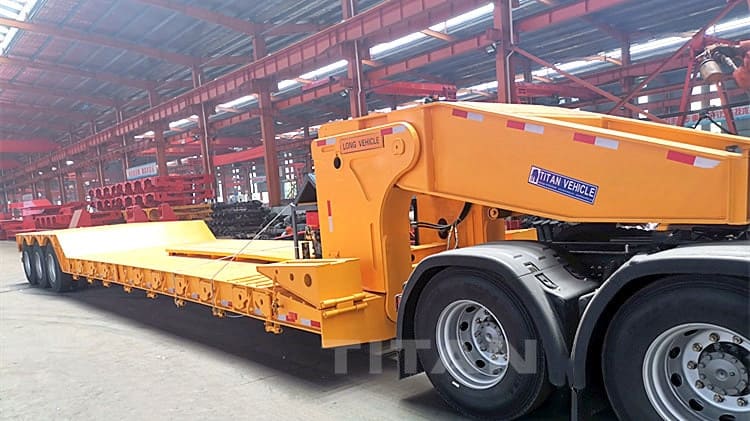

3 Axle Detachable Gooseneck Trailer
80ton Detachable Gooseneck Trailer
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

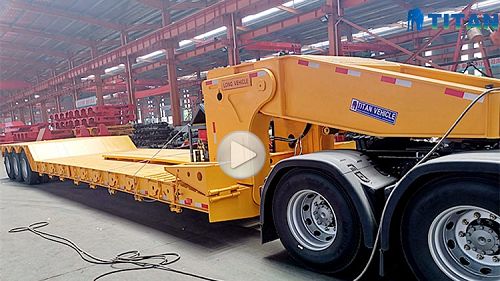

Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
