To ensure dependable operation across diverse road networks in Guyana, the extendable flatbed trailer has been upgraded with several critical structural enhancements. These refinements not only align with regional transport requirements but also reinforce the unit’s long-term reliability under heavy-duty use.
Original Dimension: 12500mm*3000mm*1650mm
Extend Dimension: 24000mm*3000mm*1650mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high

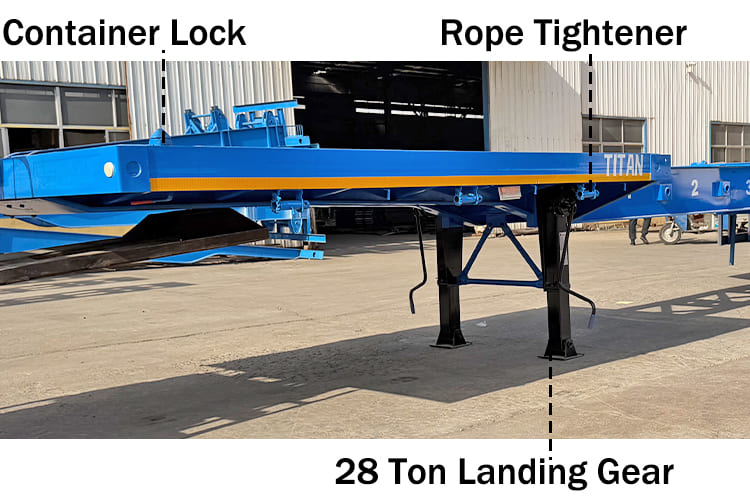

Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units,
Bumper: thickened
Leaf Spring: 10 layers
Suspension: mechanical suspension

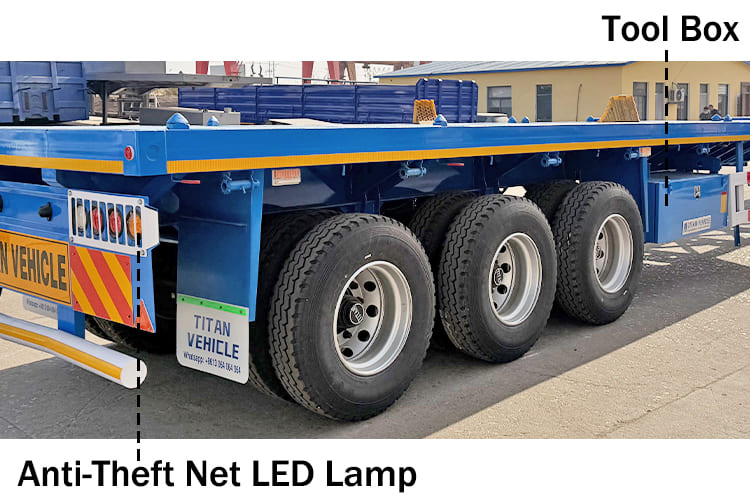

Lamp: LED Lamp
The primary frame of the extendable flatbed trailer is built using Q355 low-carbon, high-strength alloy steel. This material selection improves wear resistance, extends the service life, and strengthens the structure during prolonged operations. Supported by an optimized frame layout, the trailer maintains stable performance even when carrying substantial loads.
TITAN applies automated submerged arc welding throughout the production of each extendable flatbed trailer for sale, ensuring consistent weld penetration and a secure connection at every joint. The uniformity of this process further enhances the structural integrity of the extendable flatbed trailers 3 axle.

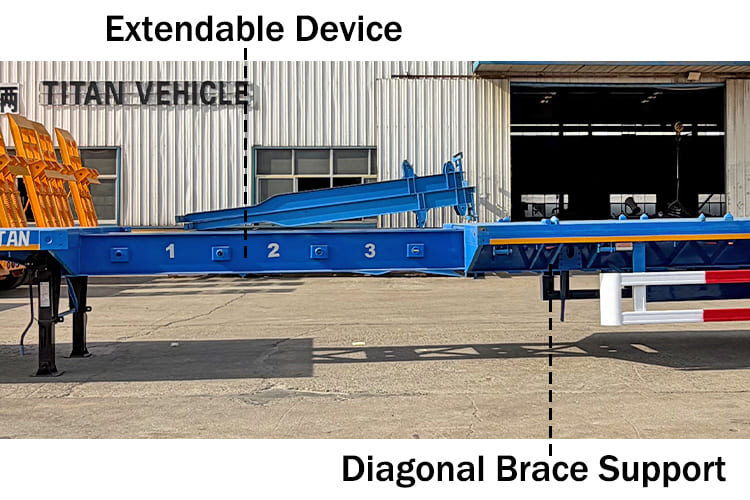

The chassis design incorporates diagonal braces that firmly connect the cross beams to the main beams. This reinforced arrangement efficiently disperses pressure and minimizes bending or twisting while the trailer is in motion. The spacing between braces—precisely controlled within 500 mm—adds additional rigidity to the extendable flatbed trailer, improving reliability when traveling across varied terrain in Guyana.
For surface protection, TITAN applies advanced powder-spray coating to the extendable flatbed trailer for sale, followed by high-temperature baking. Compared with traditional paint, powder coating adheres more firmly, resists peeling, and provides superior protection against corrosion and UV damage. This durable finish preserves the appearance of the extendable flatbed trailers 3 axle even in regions with intense sunlight or harsh climatic conditions.
The trailer deck is engineered to accommodate different types of cargo. A high-strength patterned steel plate is used for the flooring due to its friction properties, wear resistance, and anti-slip surface.
This plate withstands heavy loading and resists rust formation, making the extendable flatbed trailer suitable for humid or coastal areas, including logistics routes frequently used in Guyana. Its long-term performance ensures consistent operational reliability during daily transport tasks.
The suspension system is constructed from high-strength steel and incorporates a multi-stage buffering mechanism designed to absorb road impact. A 70 mm center balance pin, combined with reinforced side structures, creates a highly stable suspension assembly for the extendable flatbed trailer for sale.

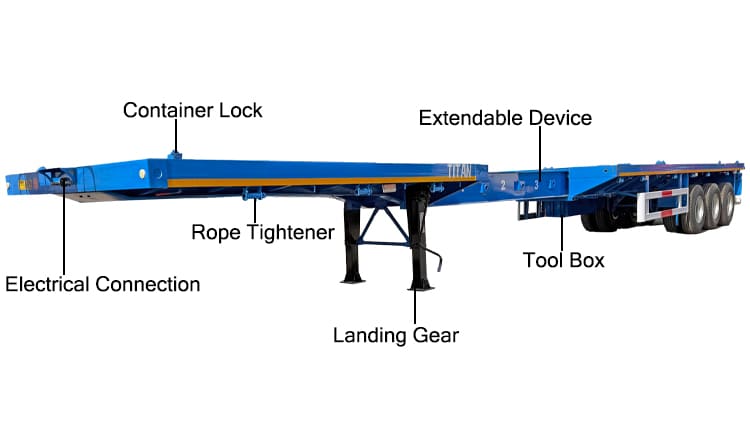

Cargo security is managed through rope-tightening devices installed along the edges of the deck. Their simple, efficient mechanism minimizes shifting during sharp turns or sudden braking and supports safer, more streamlined loading procedures.
Additionally, adjustable container locks are fitted on each extendable flatbed trailers 3 axle, ensuring compatibility with multiple container sizes. This adjustability allows the trailer to maintain stability under changing load conditions, extending the lifespan of the extendable flatbed trailer and enhancing its versatility during different transportation scenarios.
The 12 mm one-piece steel traction plate positioned at the front connects the tractor to the deck body of the extendable flatbed trailer for sale. This design, combined with built-in shock-absorbing features, improves operational safety and contributes to the dependable performance associated with TITAN’s extendable flatbed trailers 3 axle.
When moving oversized or concentrated loads, the weight is distributed evenly across the extendable flatbed trailer for sale, reducing stress buildup and preventing deformation. For operators prioritizing durability and high load capacity, TITAN’s extendable flatbed trailers 3 axle provide a strong and stable solution suitable for demanding logistics tasks.
For export, customers can select between container shipment or roll-on/roll-off transport. Before dispatch, each extendable flatbed trailer for sale receives a comprehensive protective treatment that includes a full-coverage wax coating and a custom-fitted waterproof cover. This dual protection shields the trailer from salt spray, moisture, and corrosion during ocean shipping, ensuring that every extendable flatbed trailer arrives in excellent condition and ready for immediate use.
