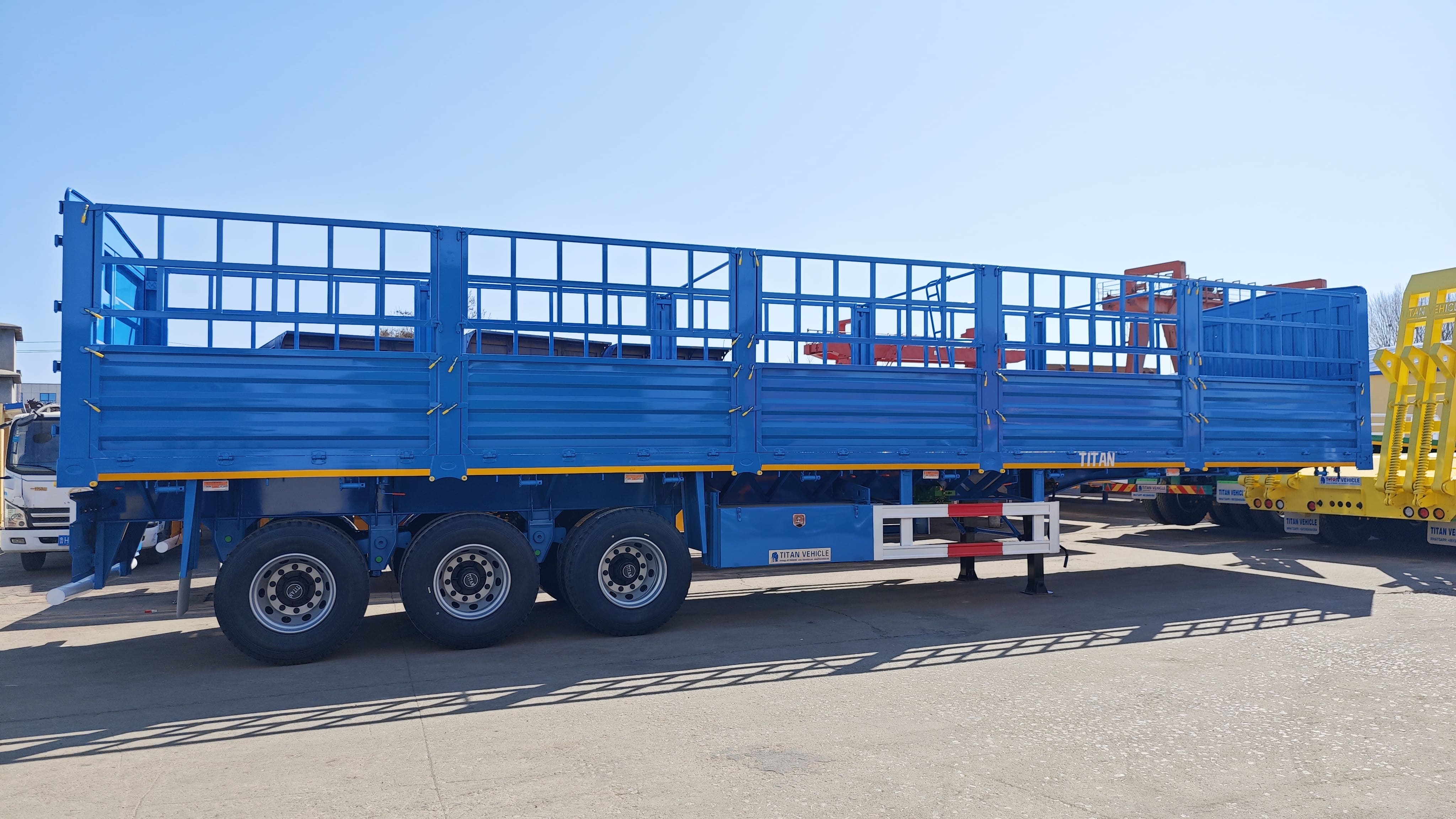

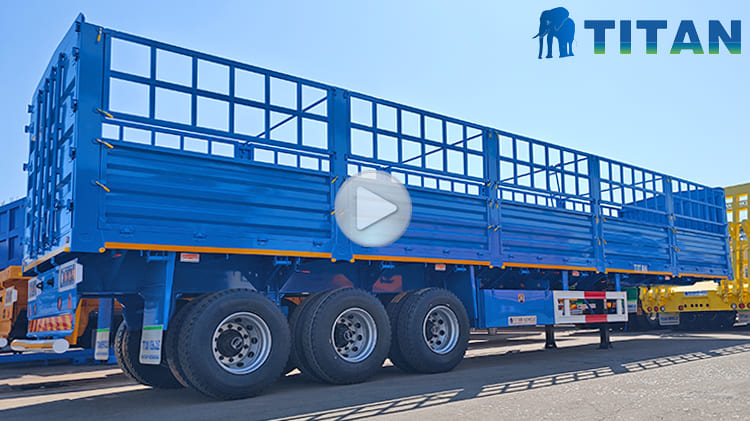

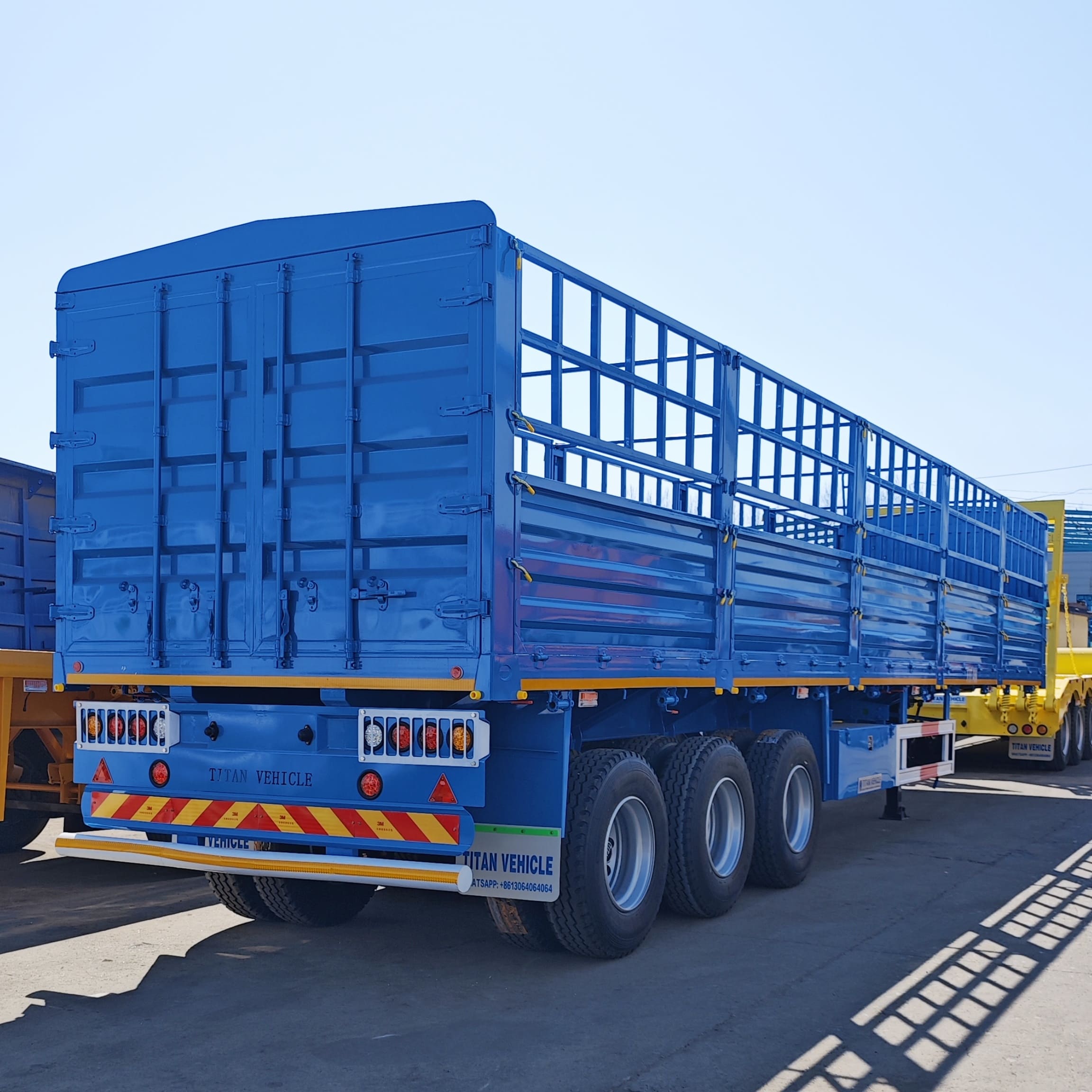

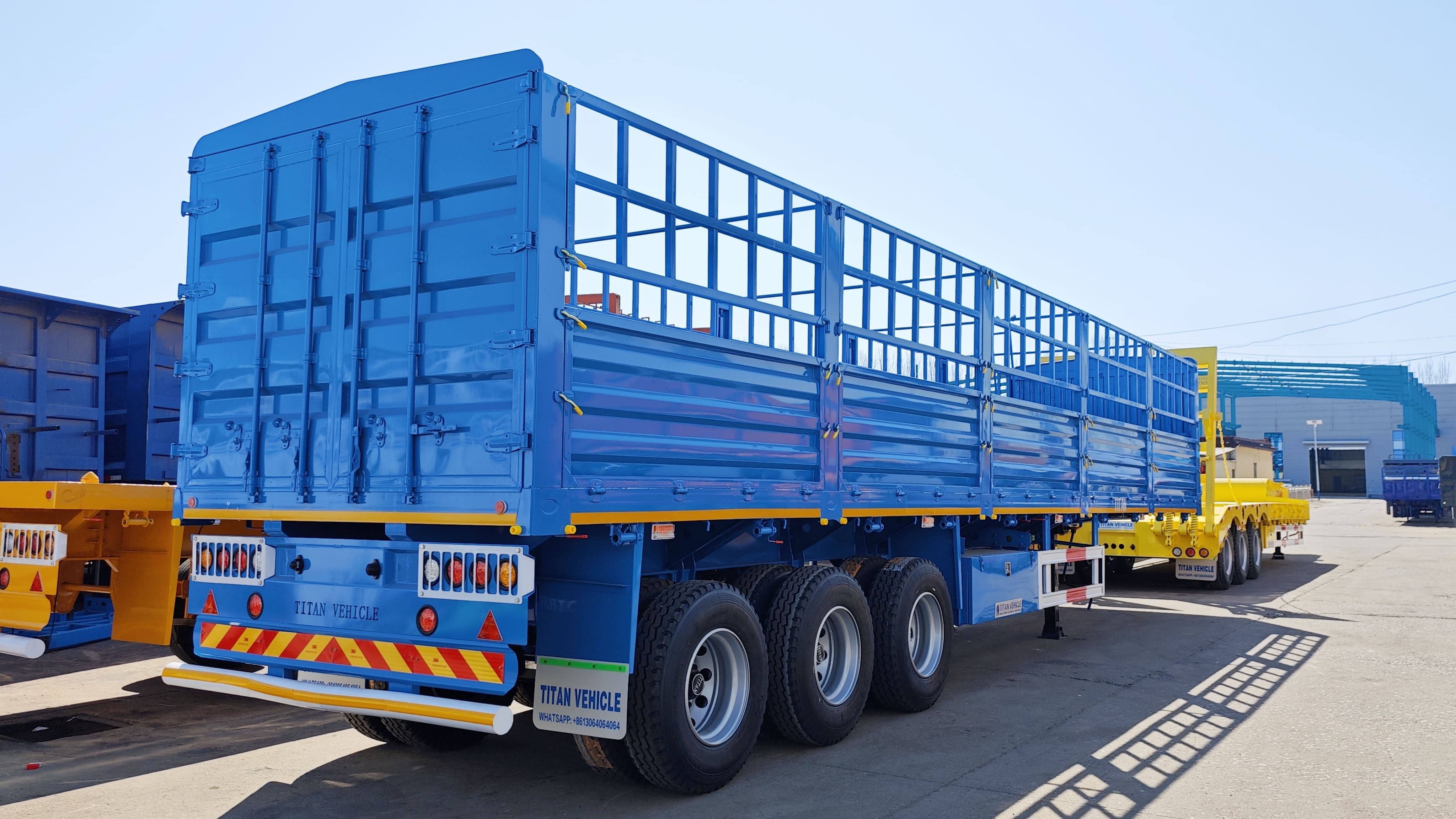

The 3 axle fence trailer can carry a maximum weight of 60 tons and is suitable for transporting all kinds of bulk cargo. The appearance of the fence semi trailer is bright and colorful, adopting powder spray and baking painting, which has the characteristics of high adhesion and not easy to fall off the paint. At the same time, the whole fence trailer has a reflective strip design, which can also ensure the transportation safety when the light is dim.
3 Axle Fence Semi Trailer for Sale in Nigeria
3 Axle Fence Semi Trailer for Sale in Nigeria
3 Axle Fence Semi Trailer for Sale in Nigeria
Dimension: 12490mm*2490mm*2000mm
Loading capacity: 60 ton
Axles: 3 axles, TITAN brand
Sidewalls height: 1600mm
Suspension: mechanical suspension
Tire: 12R22.5, 12 units
Landing Gear: 28 ton

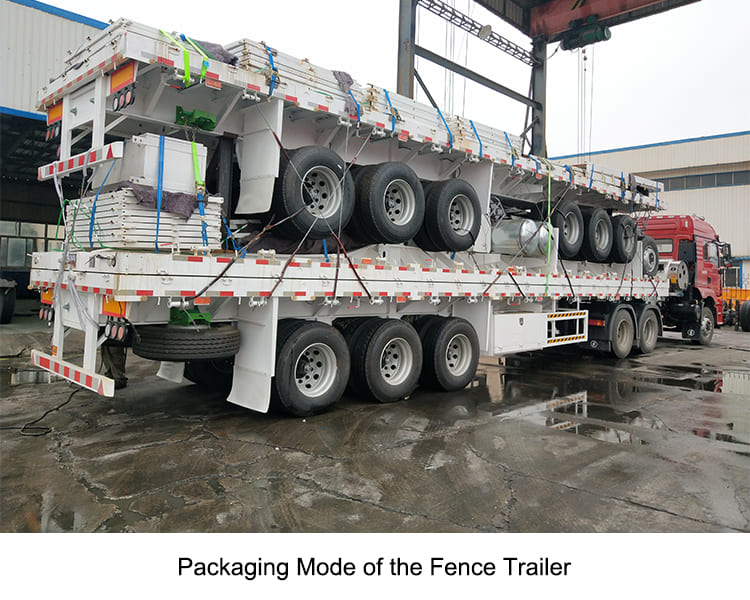

Transportation, can be shipped by a container. It can also shipped in RORO ship. Before delivery, TITAN spray wax and cover all fence semi trailer with waterproof raincoats, which can effectively prevent them from being corroded by seawater and sea winds during shipping. It is worth mentioning that other companies do not have this similar services.
The main beam of the fence trailer is made of low carbon and high strength alloy steel, and the automatic submerged arc welding process is also adopted. The above construction method ensures the integrity of the main beam, so that the 3 axle fence trailer has more bearing capacity. At the same time, the gooseneck lower has plate reinforcement, gooseneck double plate, so that the deformation of the fence semi trailer is small when under the heavy load.

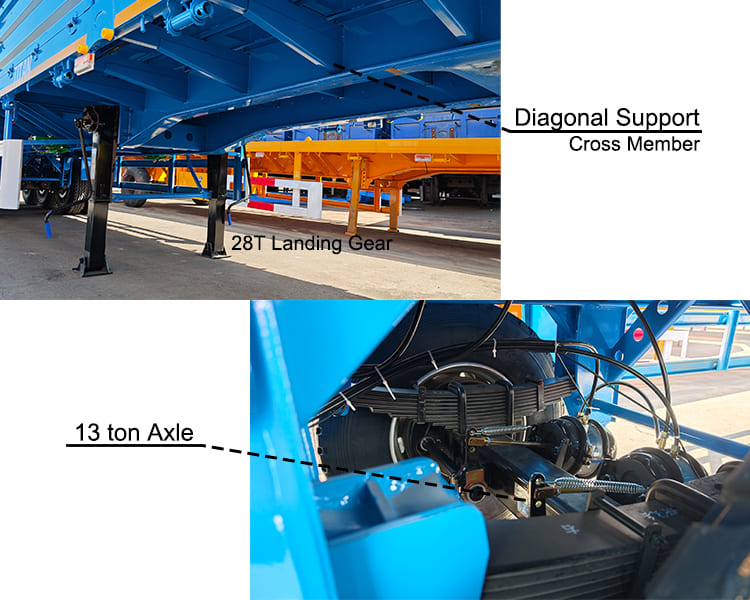

The thickened 100mm channel steel is used as the raw material of the fence semi trailer cross member to ensure the stability of the fence trailer structure when transporting cargoes. And the fence semi trailer cross member adopts a fixed structure supported by a diagonal brace, and the spacing would not exceed 500mm, which can more guarantee that the 3 axle fence trailer will not be deformed under heavy pressure. In order to better strengthen the 3 axle fence trailer, 6 laying beams are installed at the cross member, which can ensure the flatness of the fence semi trailer floor plate.
The floor plate design of the TITAN fence trailer has high load-bearing capacity and excellent anti-skid, the key factor is different from other manufacturers' choice of thickened steel and the design of the pattern plate. 3mm thick pattern plate, can be more non-slip and durable.

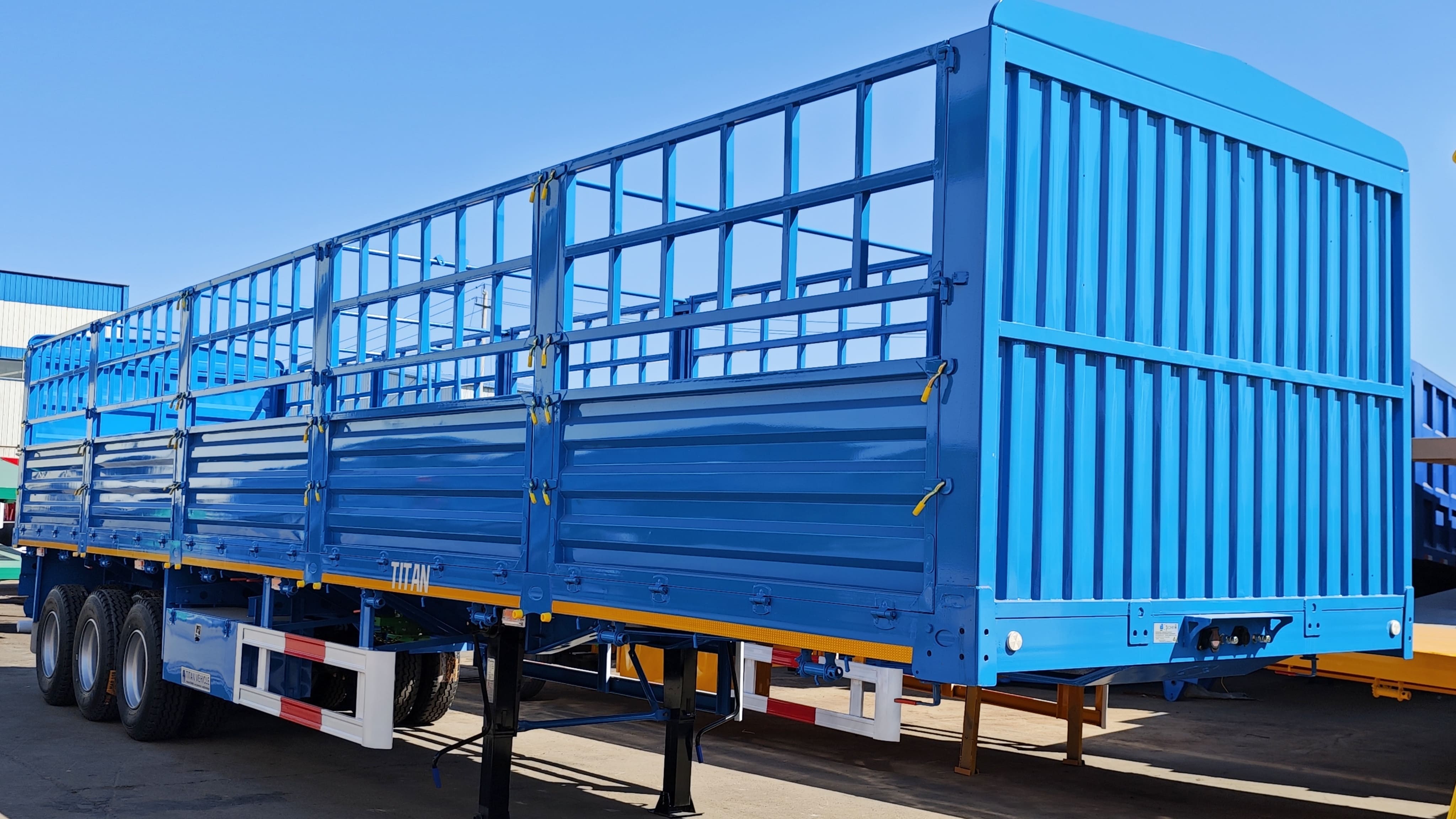

The fence trailer sidewall is also made of the same high-strength alloy steel material, the design of the lower sidewall is the strong solid part that ensure the safety of the transportation of bulk cargo; The design of the upper sidewall can ensure ventilation and aesthetics, and the fence semi trailer can have more possibilities in choosing the type of transport cargoes, and also improve the cost performance of the customer to buy the fence semi trailer.
The landing gear of the 3 axle fence trailer also plays a crucial role in the high bearing capacity of the fence trailer. The 2.8 ton landing gear is solid and durable, showing excellent support and stability during the load bearing process to ensure the safety of the cargo.

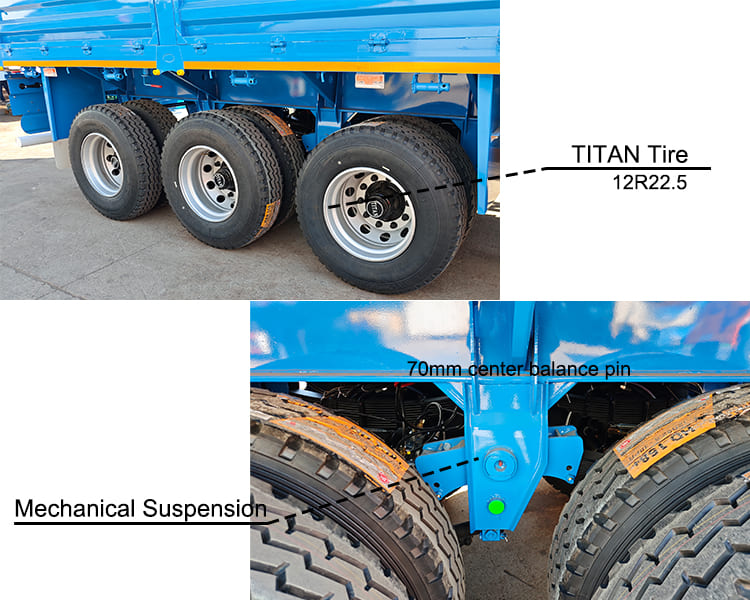

The suspension of the 3 axle fence trailer is an reinforced mechanical suspension with a 70mm center balance pin, which plays an important role in the damping performance of the fence semi trailer and can greatly avoid damage to the cargo in transit. At the same time, the front and back, left and right sides of the fence trailer suspension were reinforced, which was specially designed for the road conditions in Nigeria, so as to effectively reduce the unnecessary wear of the fence semi trailer and tires.

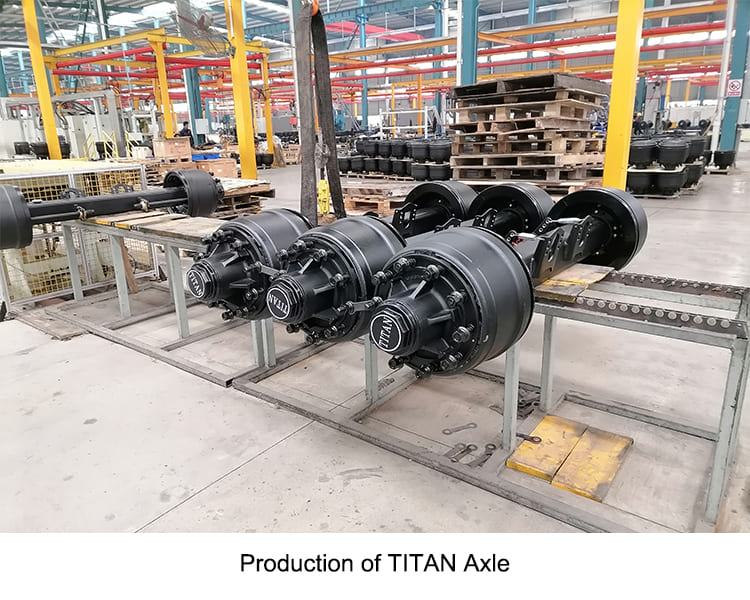

In order to ensure the safety of the 3 axle fence trailer and the cargo, the brake system needs to have a better and advanced configuration. The fence trailer is equipped with 13 tons of axle and 16 tons of brake pads, which ensures the bearing capacity of the fence semi trailer, and the brake system is also greatly improved. Compared to the normal braking system, 3 axle fence trailer has a faster response and a shorter braking distance of more than 5 meters.

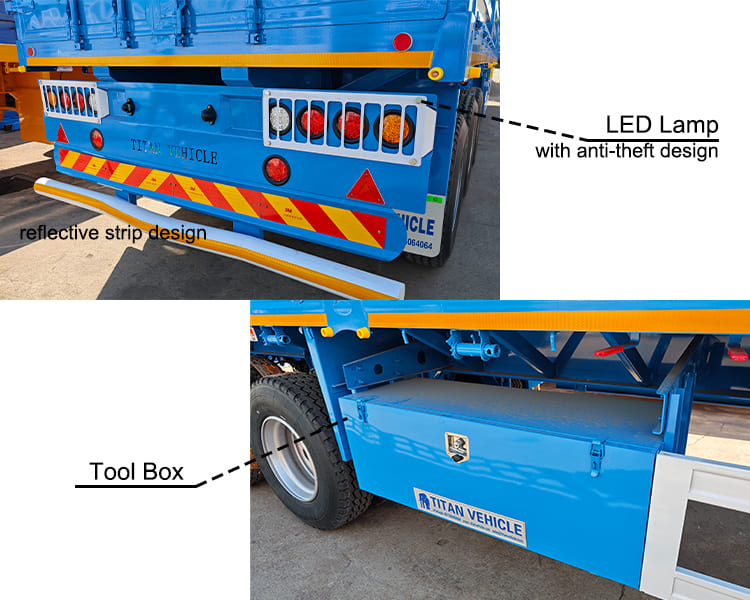

TITAN has own ability to independently produce fence trailer tires and has 9 years of production experience. Through testing in China, the tire can travel 200,000 kilometers without any problems in 2 years. The whole 3 axle fence trailer uses LED lamps, but also equipped with anti-theft design. Purchase also comes with a set of taillights and side lights.
