Price: 10000 USD

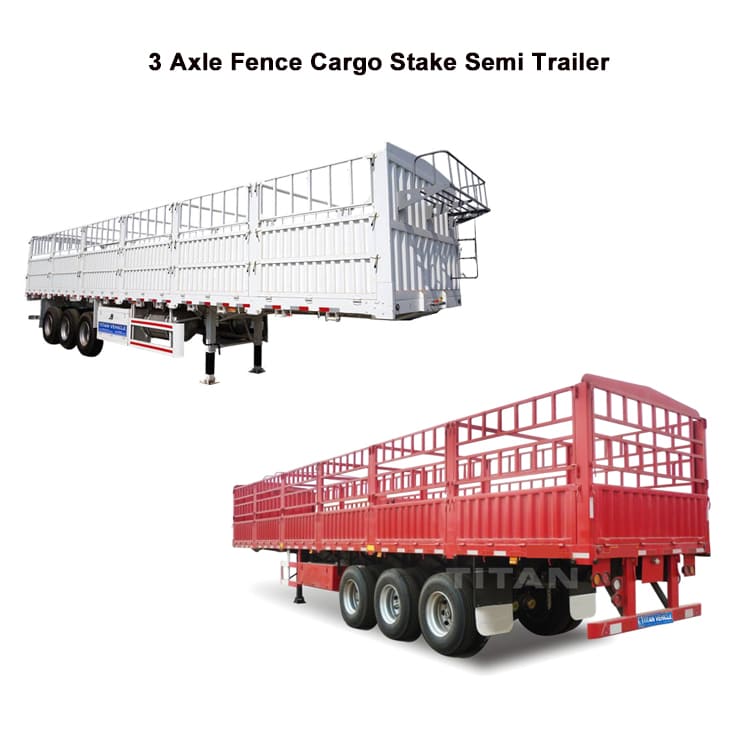

The 3 axle fence cargo stake semi trailer is suitable for medium and long-distance transportation, mainly transporting bulk cargos and containers
TITAN 3 axle fence cargo stake semi trailer has 2 axle, 3 axle, 4 axles, and the loading capacity also can be choosed, like 30/40/60/80 tons. All can be customized by customers's requests. The height of the fence and the color of the whole fence cargo trailer can be customized by your needs.
TITAN use world famous brand parts on the 3 axle fence cargo stake semi trailer, like jost landing gear, Wabco etc.,which make the trailer has a longer service life.
3 Axle Fence Cargo Stake Semi Trailer for Sale Price
3 Axle Fence Cargo Stake Semi Trailer for Sale Price
3 Axle Fence Cargo Stake Semi Trailer for Sale Price
Dimension(mm): 12490x2490x3500mm
Loading capacity(ton): 50T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle uses high-strength steel to manufacture the fence cargo trailers, so that the trailer has higher carrying capacity and longer service life.

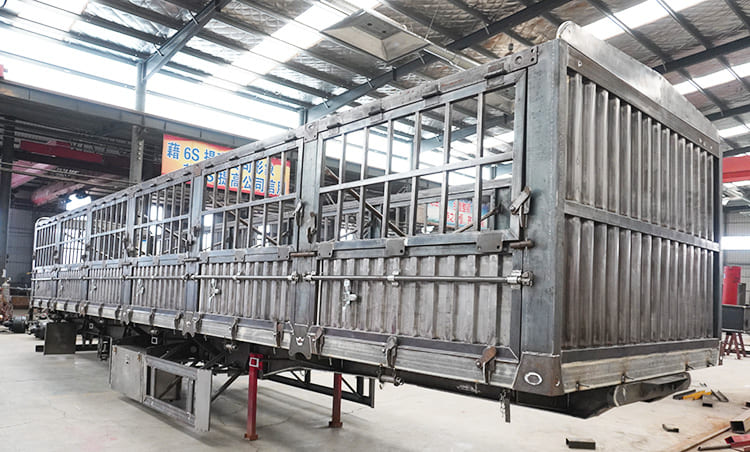

2. TITAN Vehicle Use advanced welding technology to manufacture the main beam of the stake semi trailers, making the chassis of the trailer stronger and less prone to deformation.
3. TITAN adopts world-renowned brands as fence cargo trailer accessories, such as jost landing gear, etc., which prolongs the life of the trailer.
4. fence cargo trailer can be customized and produced according to customer needs, with good quality and low price.
TITAN Fence cargo trailers are used to load various products and materials such as sand, bags, poultry, etc. There are also some bulk cargoes that are very widely used in the transportation industry.
The fence cargo trailer has a fence structure design. We have 2/3/4 axle fence trailers with 30/40/60/80/100 tons load capacity for customers choice. The colors and sidewall heights also can be customed.
Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
