Fence cargo trailer was popular by logistics companies as its multipurpose application.It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.
Fence flatbed trailer can be used to load the containers after adopt the container locks for it.
TITAN production the sidewall trailer fence semi trailer adopts high-quality material, important accessories and configuration all adopt domestic and aboard brands.
Main beam adopts Q345 high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.

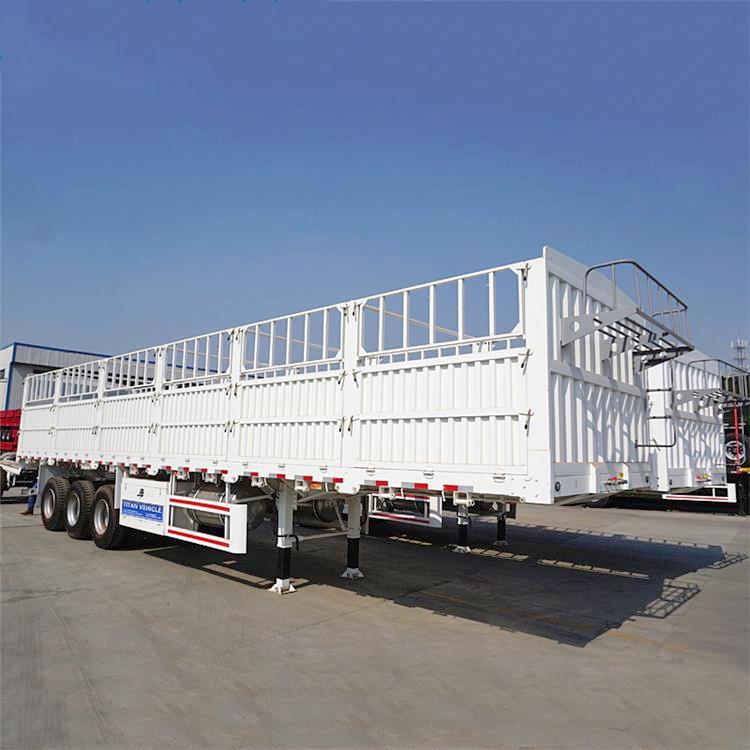

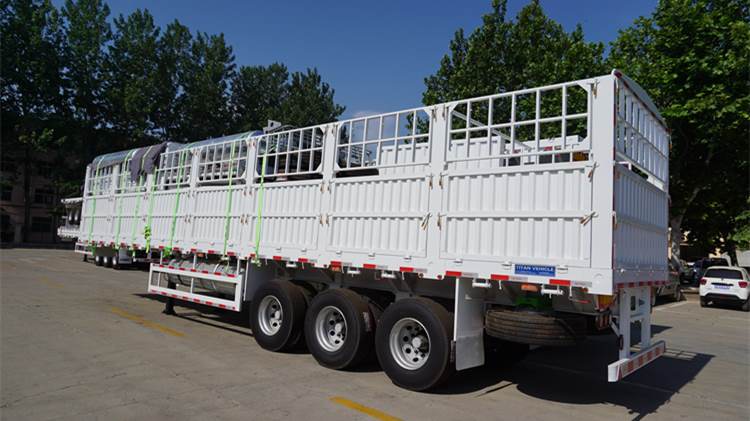

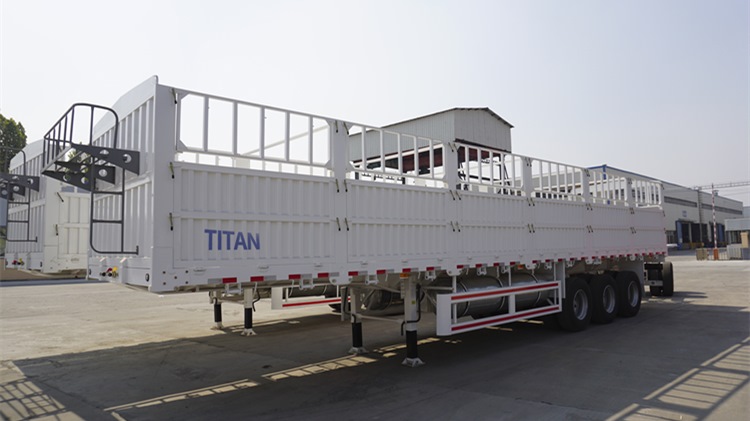

TITAN 3 Axle Fence Semi Trailer
Dimension(L*W*H): 12500*2500*3530mm
Loading capacity: 60 tons
Axle: 3axles x13ton,TITAN axle
Tire: 12R22.5,12units
Material: Q345B high strength steel
Main Beam: 500mm high,8mm thick; upper plates:14mm thick; Bottom plates:16mm thick
The thickness of sideboard:1.5mm
Side beam: 160mm channel steel
Bottom platform: 3mm,checkered plate
Spring: 10pcs,13mm thick
Suspension: 8mm thick,70mm king pin
Landing gear: 28ton
Brake system: Emergency relay valve
Sidewall: 80cm sidewall+80cm fence+20cm tent pole
Tool box: 1 set tool box
Spare Wheel Carrier: 2 pcs
High strength square tube 5*5 model / Door panel

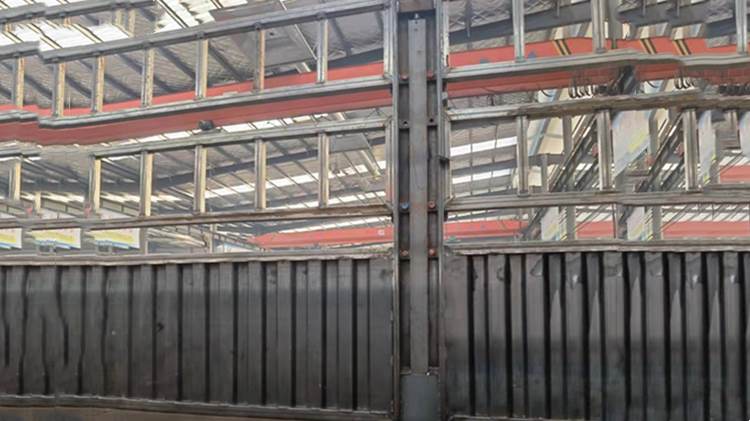

Reinforced column

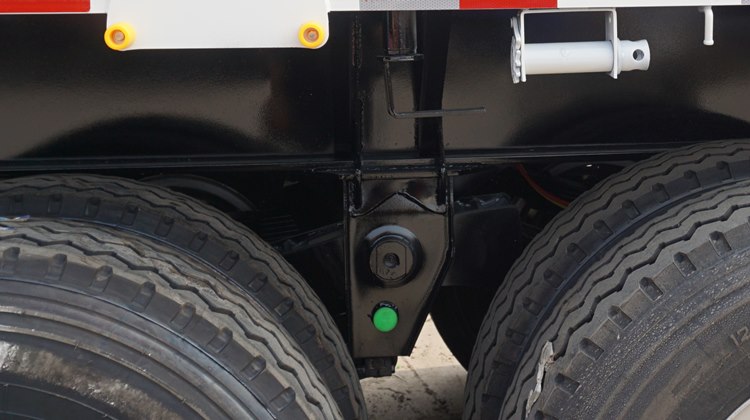

Suspension

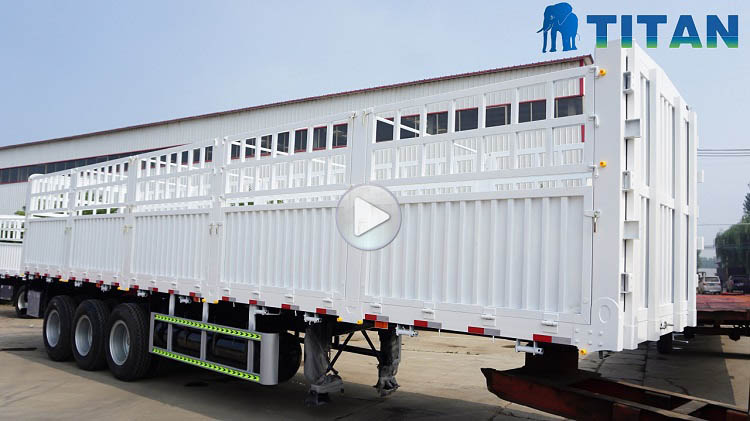

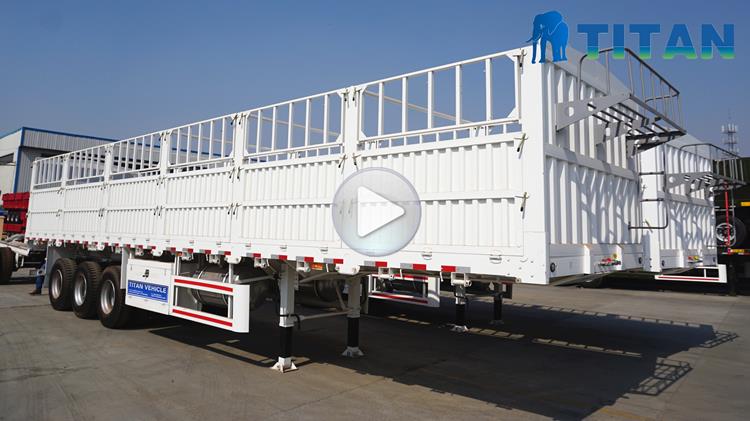

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
