The detachable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the detachable gooseneck trailer.

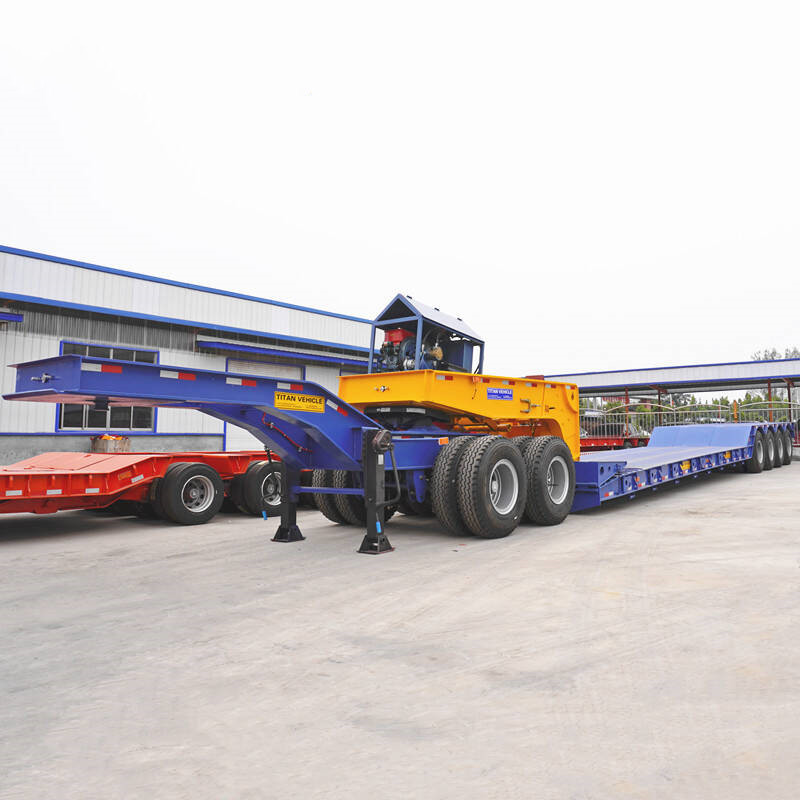

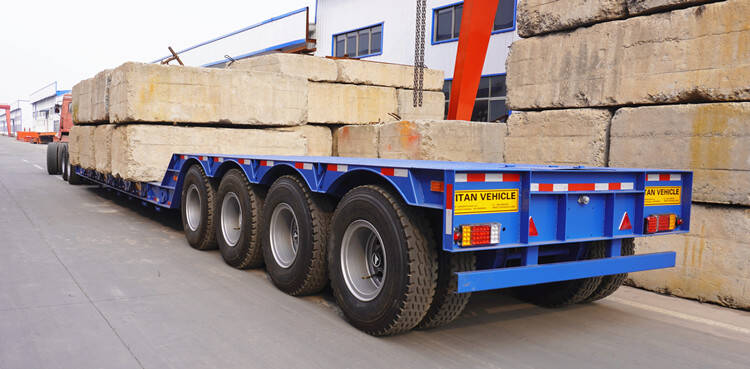

TITAN 4 Axle 150 Ton Detachble Gooseneck Lowboy Trailer--USD 32000
Dimension: 17900*2500*2200mm
Loading capacity: 150 ton
Material: Q460C High strength steel
Main beam: Height: 500mm; Width: 230mm;
Side beam: 250 I-beam 10/8/10
Working platform length: 7400mm
Working platform height: 800mm
Bottom platform: 5mm checked plate
Axle: 4 axles, 16 ton with 2 axles dolly TITAN
Tire: 12R22.5, 16 units;
Gooseneck: Hydraulic detachable gooseneck
Power pack:12KW disesel engine with Hydraulic station
Suspension: Mechanical leaf spring suspension
King pin: 3.5 inch bolted type
Braking system: WABCO emergency brake valve
Color: Optional

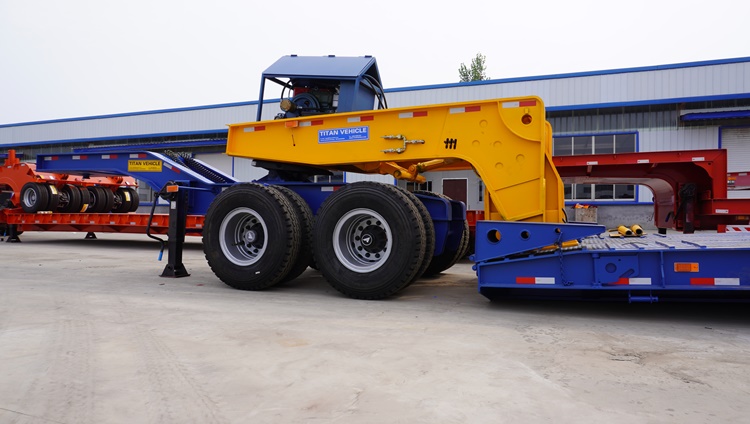

Detachable gooseneck

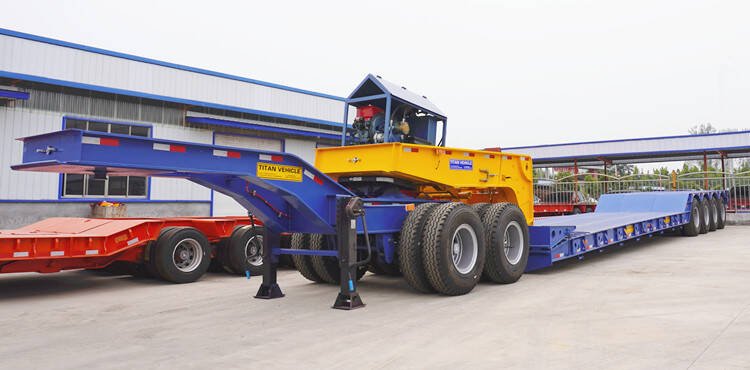

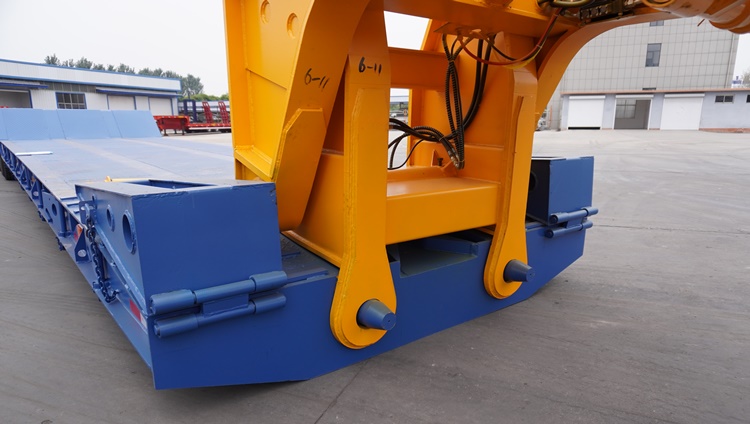

Detachable part's detail

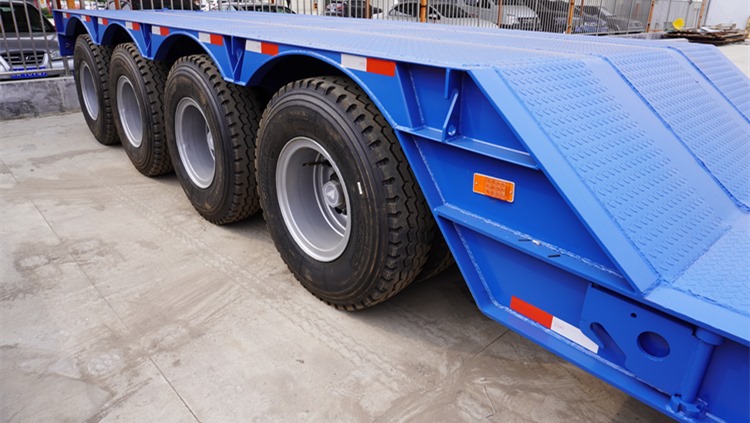

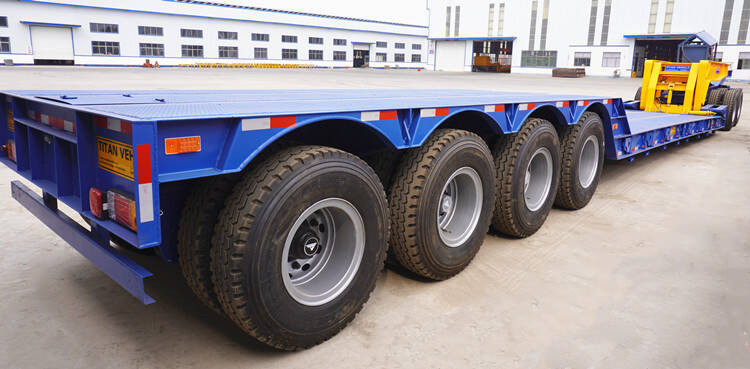

Side beam

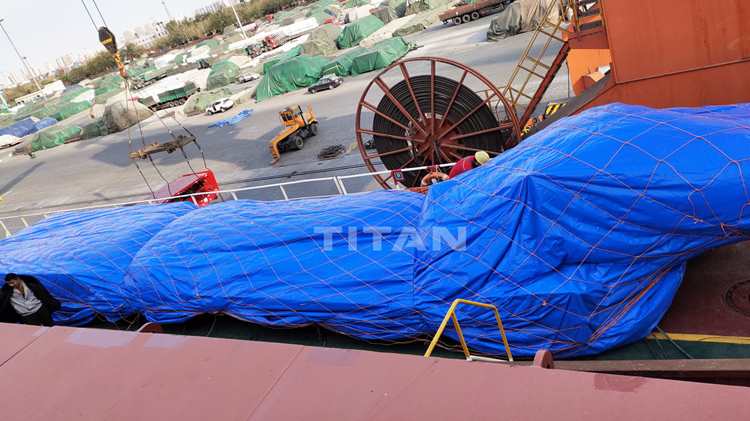

Professional package

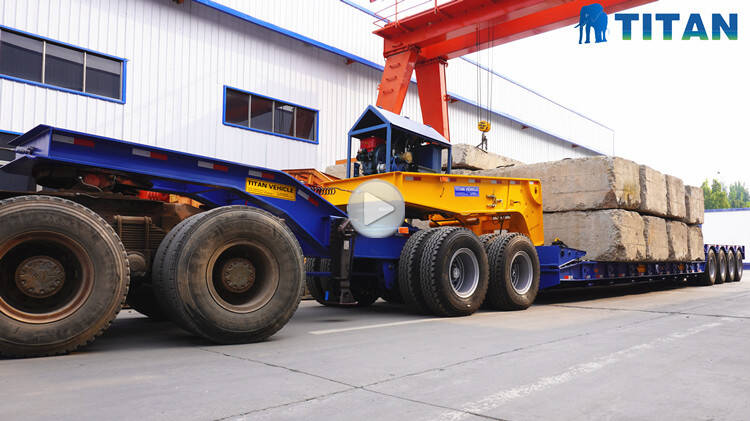

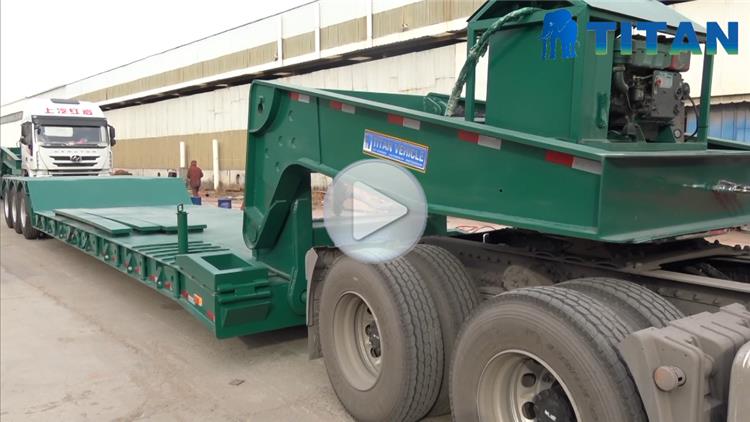

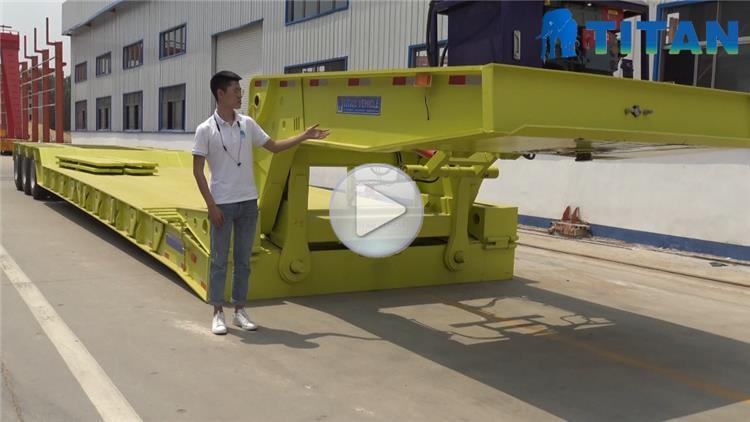

Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
