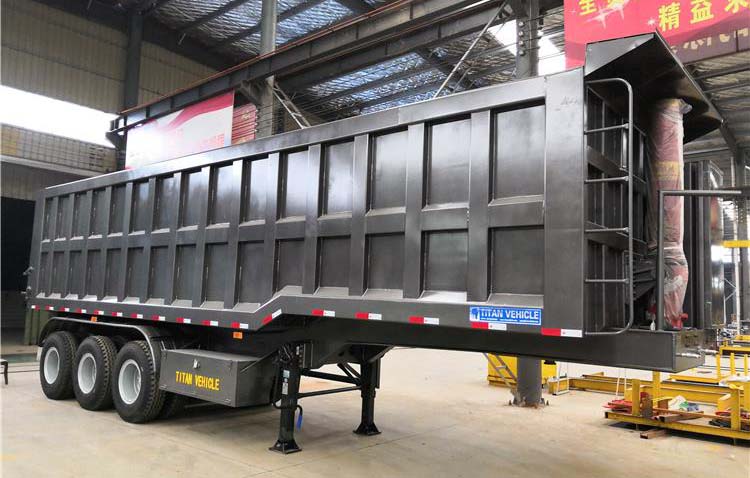

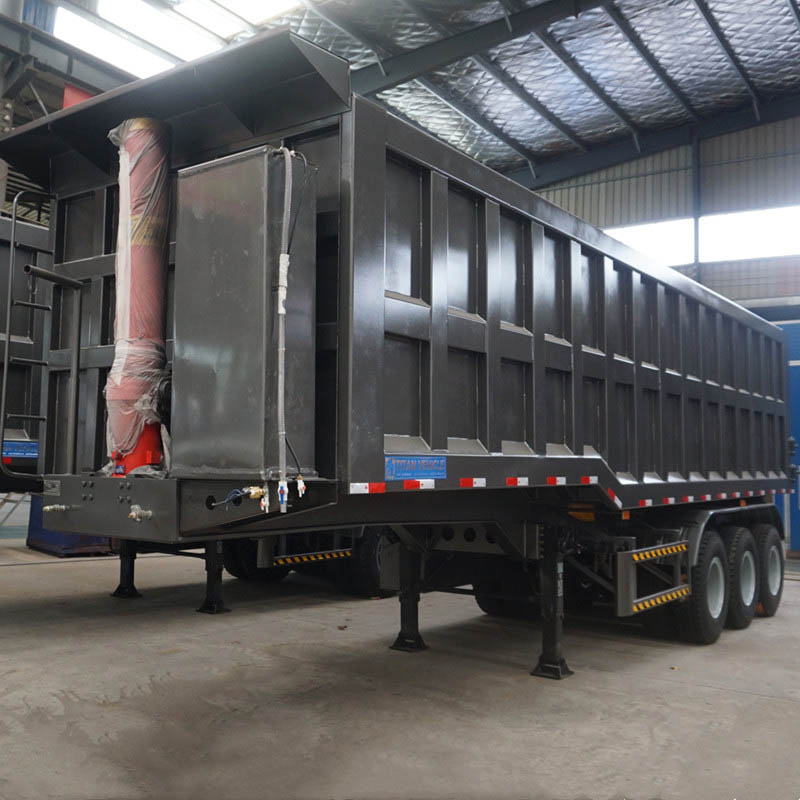

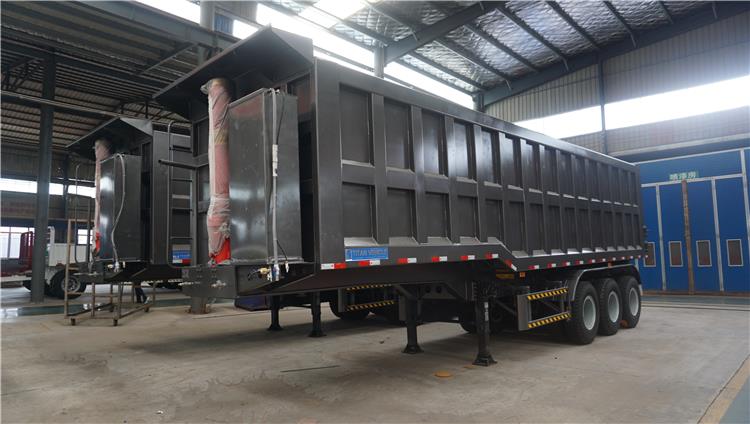

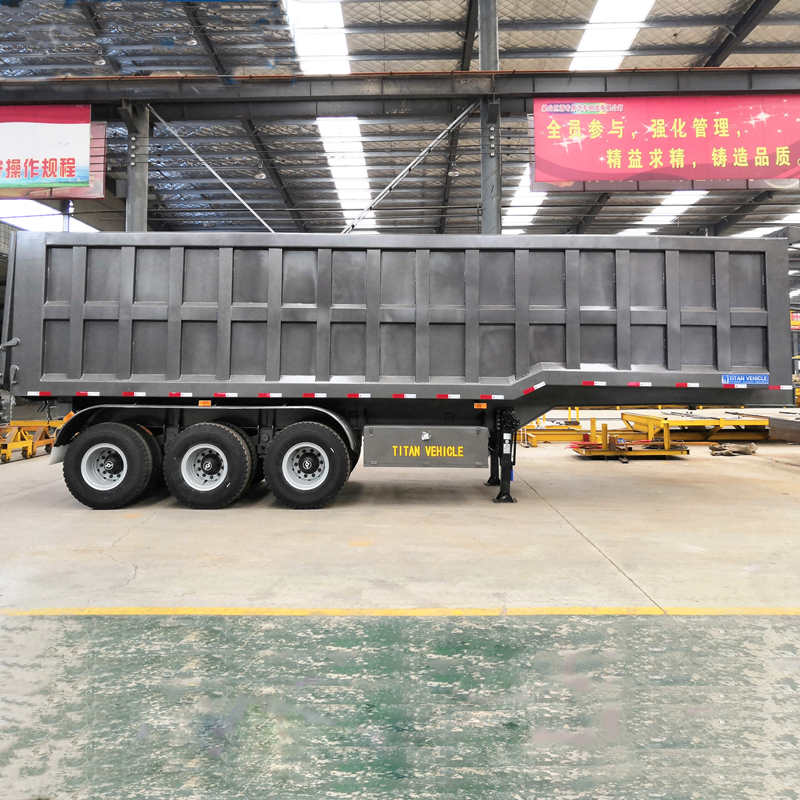

3 Axle 100 Ton Tipper Trailer is a big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Tipper Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.
TITAN 3 Axle 100 Ton Tipper Trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

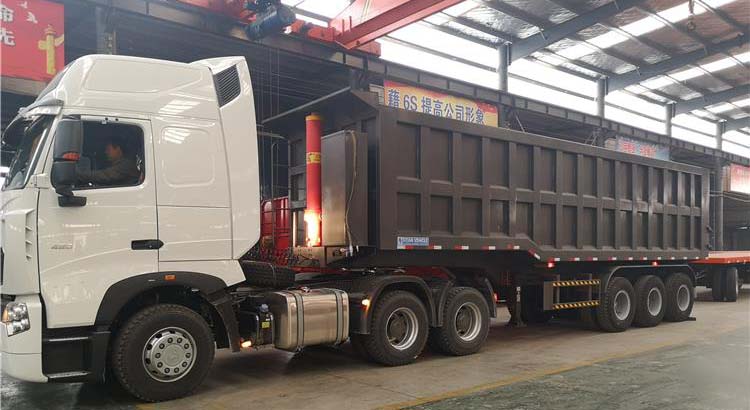

TITAN 3 Axle 100 Ton Tipper Trailer--USD 22000
Dimension: 10500*2500*2000mm
Material:Q345B High strength steel
Cargo body size: 8300*2370*1800mm
Cargo body volume:35m³
Payload:100 Ton

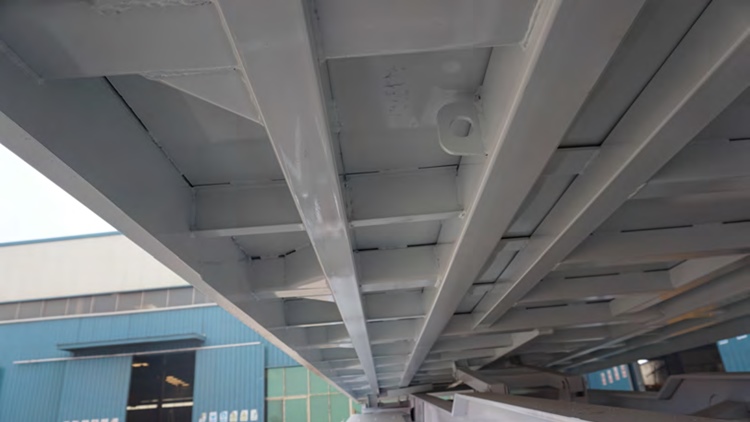

Main beam: Middle plate:480mm height , 6+6mm thick; Upper:14mm thick; Bottom:16mm thick
Bottom thickness: 8mm
Sidewall thickness: 6mm
Axle: 3 axles, 16 ton TITAN
Tire: 11R20, 12 units

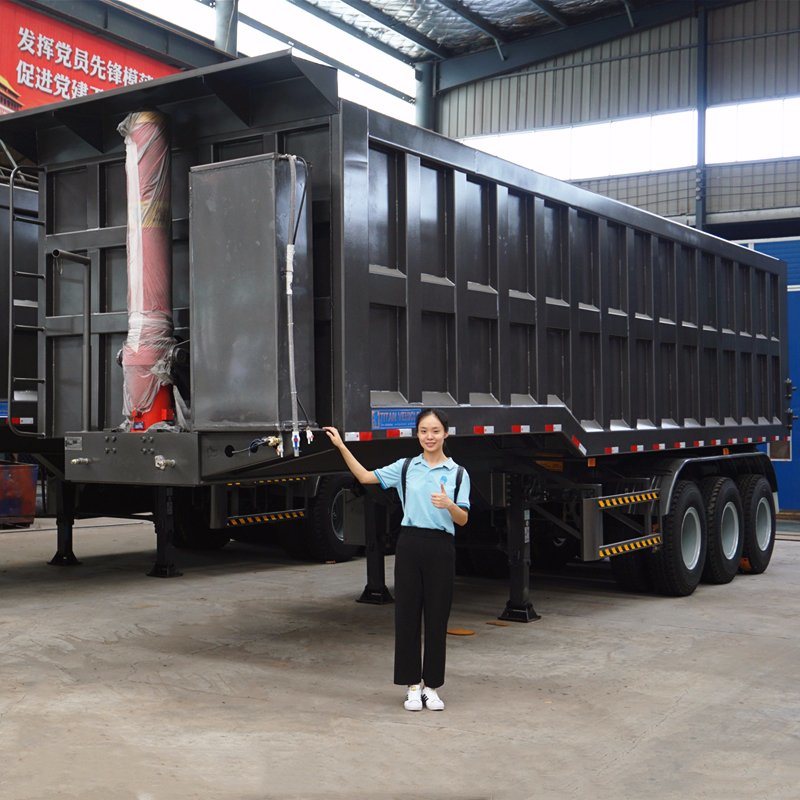

Hydraulic system: TITAN 214 Heavy-duty hydraulic cylinder
Suspension: 100mm thickness, 70mm king pin
Spring: 10 pcs , 16mm thickness
Landing gear: Jost E100
Braking system: WABCO emergency brake valve
Accessories: 1 standard tool +1 spare tyre carrier
Color: Optional

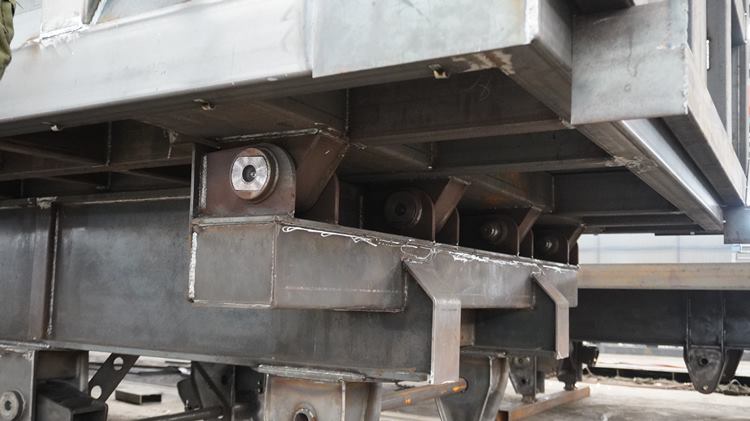

Heavy duty flip brackets, the flip bracket has 4 heavy-duty flip brackets, which are more stable and firm; the brackets are independent.

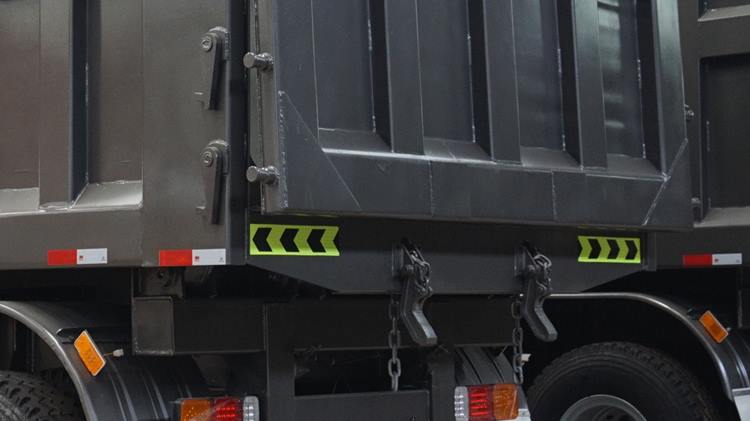

Double bukle
Professional package

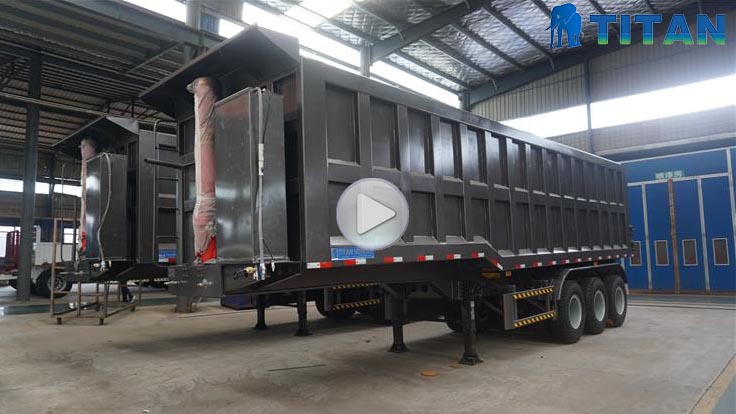

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
