TITAN dump trailers adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.
TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
We use the well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

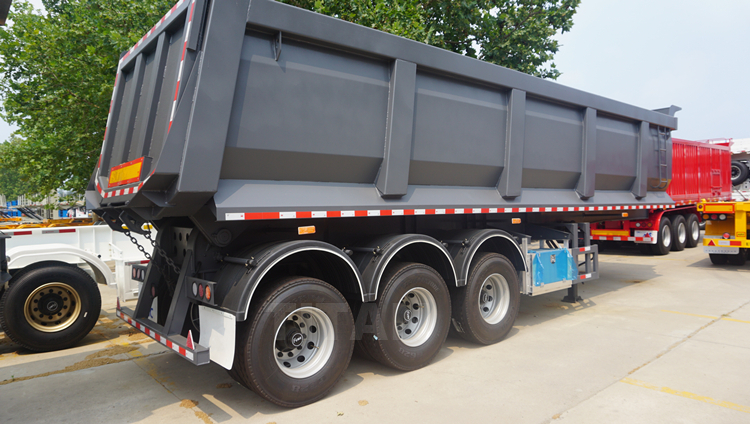

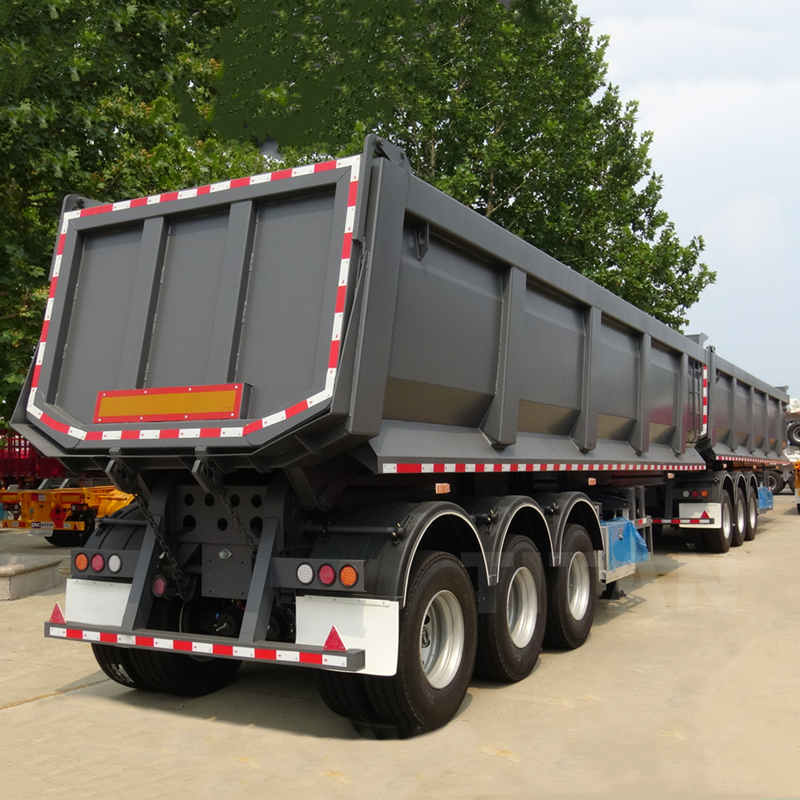

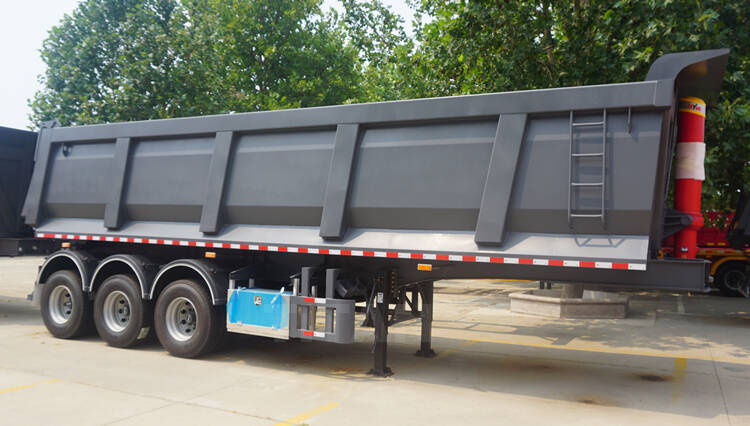

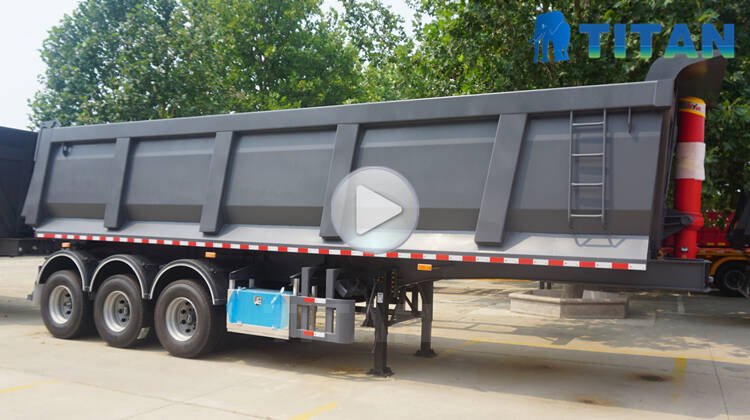

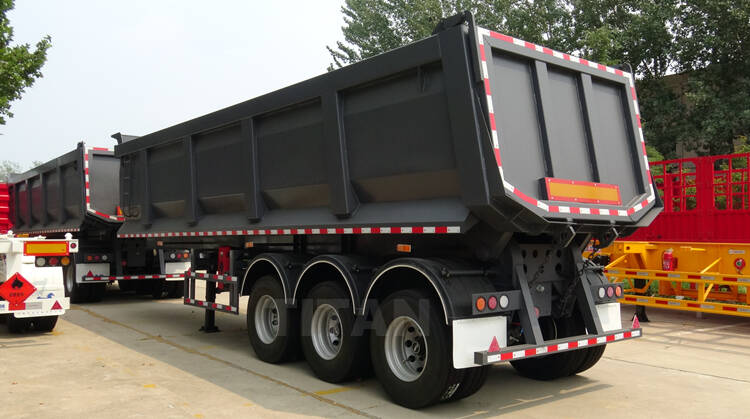

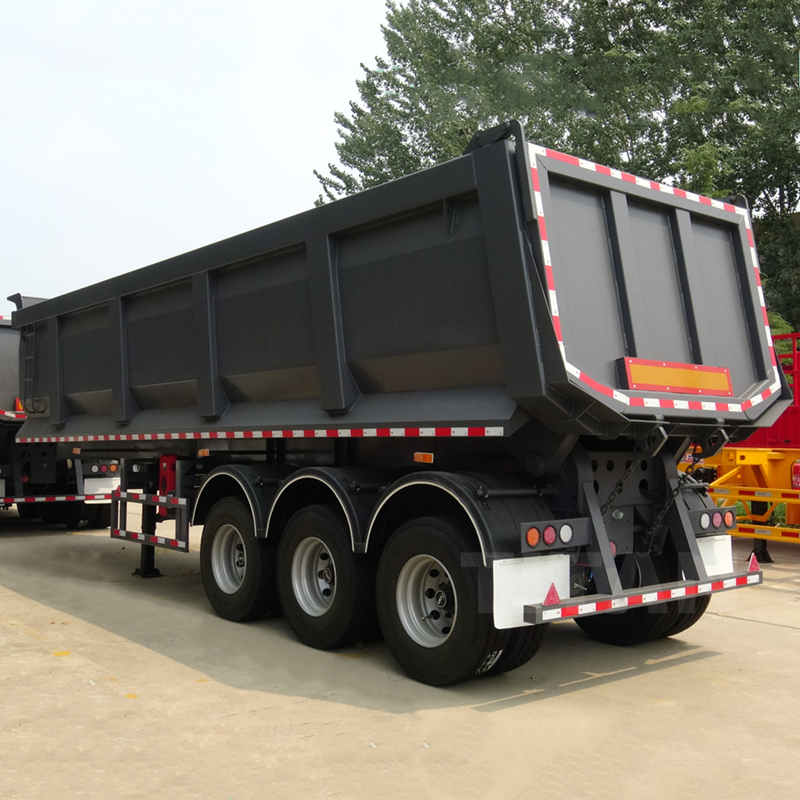

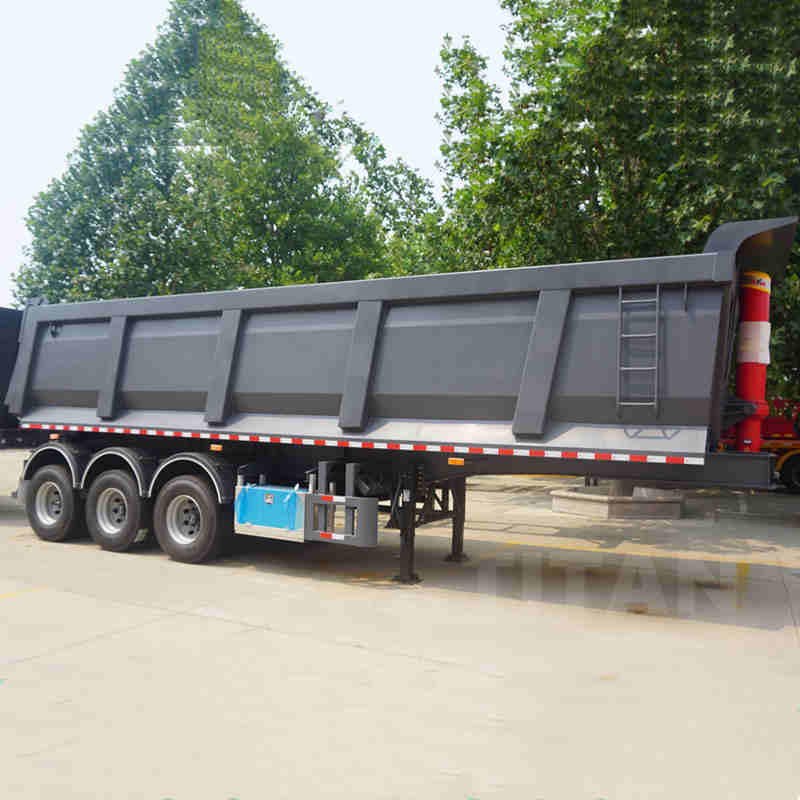

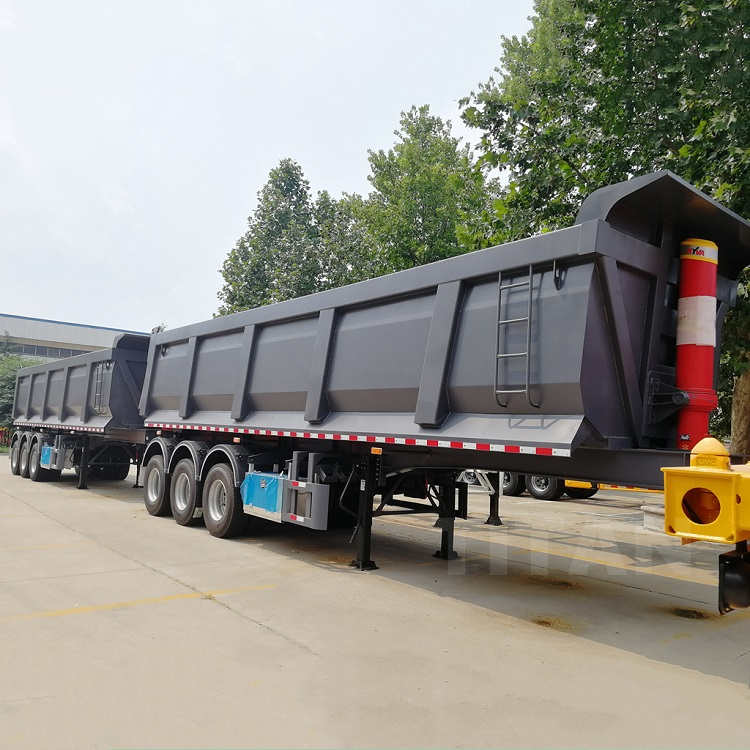

TITAN 3 Axle 32m³ U-shape Tipper Trailer--USD 21000
Dimension: 9000*2500*3700mm
Material:T700 High strength steel
Cargo body size: 8300*2370*1600mm
Cargo body volume:33m³
Payload: 80 Ton
Main beam: Middle plate:480mm height , 6+6mm thick; Upper:14mm thick; Bottom:16mm thick
Bottom thickness: 8mm
Sidewall thickness: 6mm
Axle: 3 axles, 16 ton TITAN
Tire: 12R22.5, 12 units
Hydraulic system: TITAN 214 Heavy duty hydraulic cylinder
Suspension: Mechanical suspension
Spring: 10 pcs , 16mm thickness
Landing gear: JOST E100
Braking system: WABCO emergency brake valve
Accessories: 1 standard tool +1 spare tyre carrier
Color: Optional

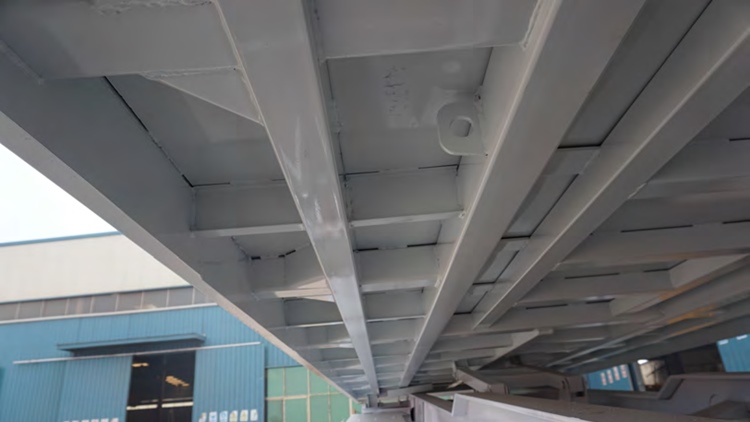

There are 4 Vice- beam to support the bottom platform by one side ,the whole trailer is total 8 vice beam stronger and better bearing capacity.

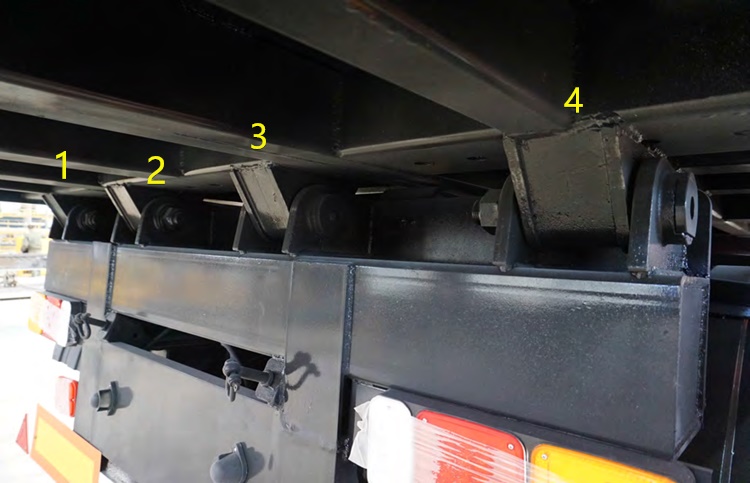

Heavy duty flip brackets, The diameter is 60#, 4 rotation pin , more stronger and wear-resistant and long service time.

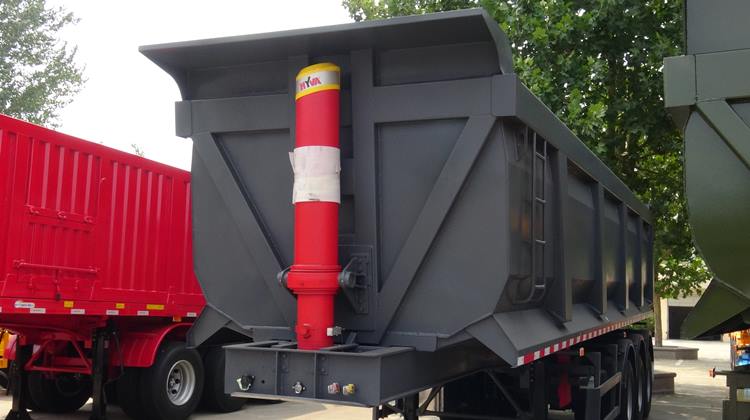

Heavy duty hydraulic cylinder

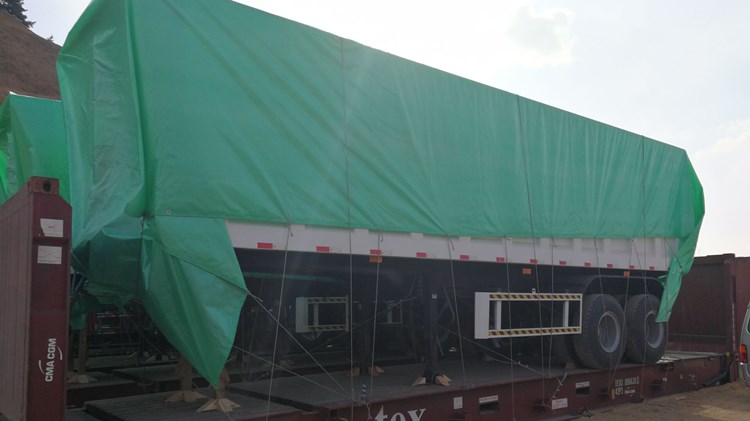

Professional package

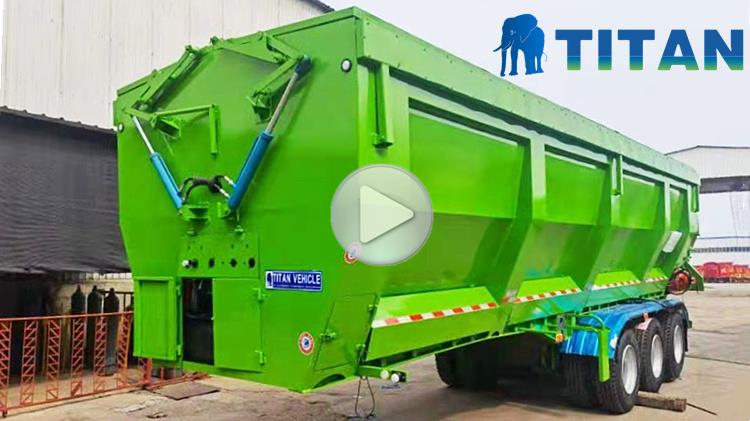

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
