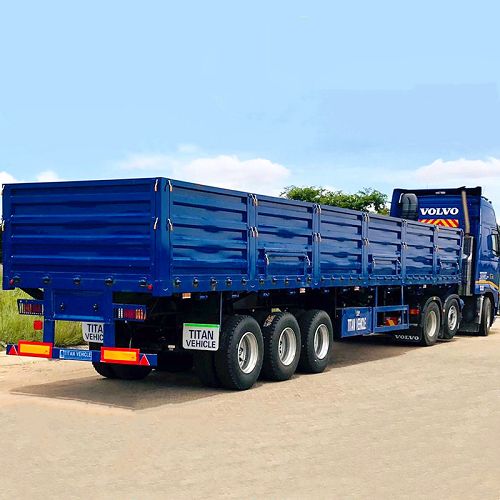

3 Axles 16 Ton Grain Trailer

3 Axles 16 Ton Grain Trailer Description:

3 Axles 16 ton grain trailer is a trailer pulled by a tractor and used to haul bulk commodity products, such as grain.

The small door of the sidewall semi trailer facilitates the loading and unloading of grain.

3 Axles 16 Ton Grain Trailer Specifications:

Tare Weight: About 7.6T

Dimension(mm): 12300x2500x2760mm

Trailer Sides: 1200mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

3 Axles 16 Ton Grain Trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.
