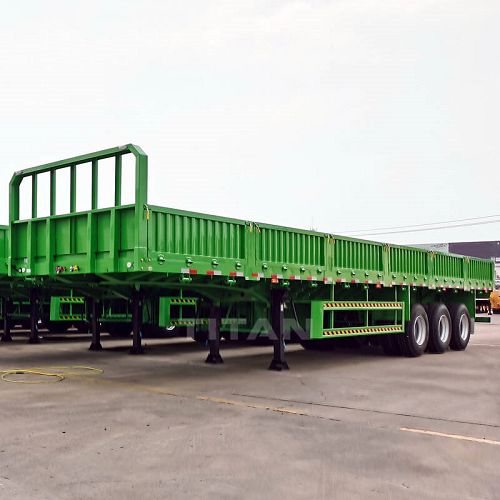

3 Axles Side Wall Trailer

3 Axles Side Wall Trailer

10000 USD

Price Reference Only.


This side wall trailer have 3 axles, and it can carry 60 tons cargo. Customizable side wall height.

SKU: 3 Axles Side Wall Trailer
GTIN: 06975766110253
MPN: TITAN6815072

3 Axles Side Wall Trailer Description:

3 Axles side wall trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

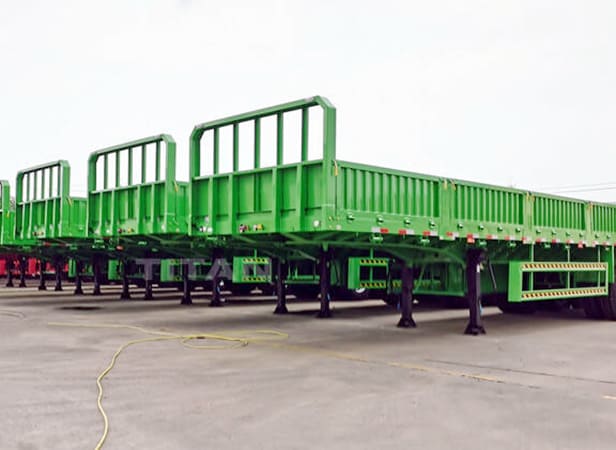

3 Axles Side Wall Trailer

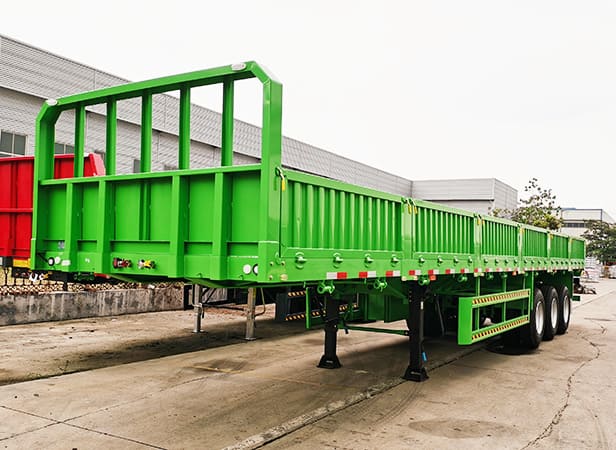

3 Axles Side Wall Trailer

3 Axles Side Wall Trailer

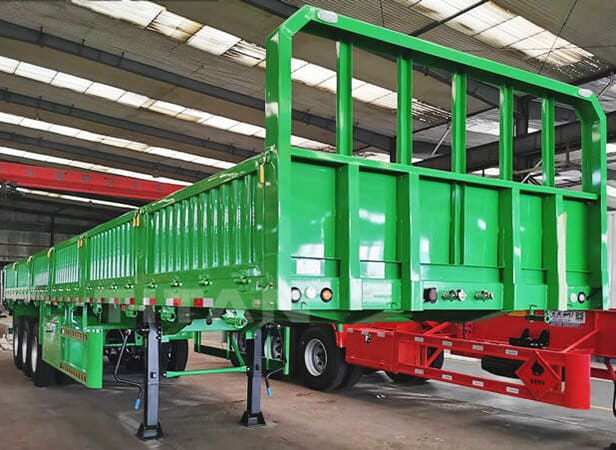

3 Axles Side Wall Trailer

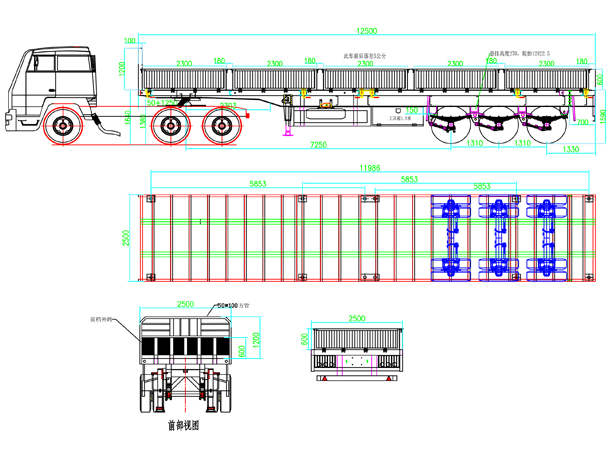

3 Axles Side Wall Trailers


3 Axles Side Wall Trailer Specification:

Dimension(mm): 12500x2500x2840mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats


3 Axles Side Wall Trailer Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the open top trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.


Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.


Please click "TITAN Sidewall Semi Trailer" to get detailed video!


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
