3 line 6 Axle Front Loading Low Bed Trailer

Front Loading Low Bed Trailer:

The front loading low bed trailer consists of two parts - a detachable gooseneck and a loading platform, made together or docked with the rear wheeled bogie.

TITAN uses high strenth steel HG60 to make the main beam of the front loading low bed trailer, HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel.

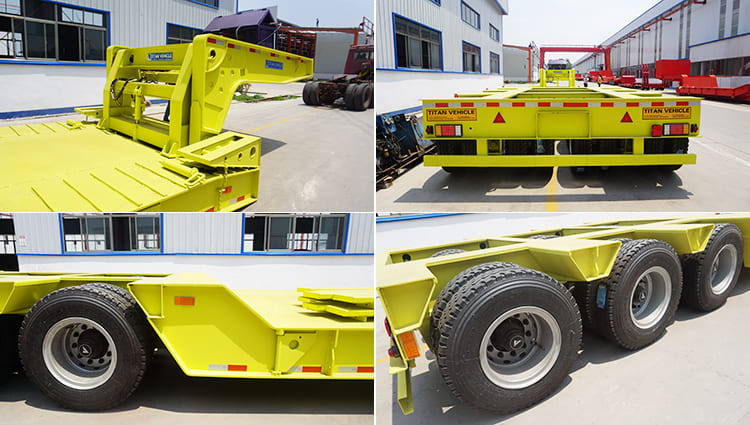

Front loading Trailer | Front Loading Low Bed Trailer | Front loading Low Loader

Front loading Trailer | Front Loading Low Bed Trailer | Front loading Low Loader

Front loading Trailer | Front Loading Low Bed Trailer | Front loading Low Loader

Front loading Trailer | Front Loading Low Bed Trailer | Front loading Low Loader

Front loading Low Loader Specification：

Overall dimension：17000mm * 3000mm *2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Package of other front loading trailer:

TITAN uses bulk or container transportation to package goods.  After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the front loading trailer  to protect the  trailer and prevent the front loading low bed trailer for sale from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the front loading low loader. Rain cloth, which can not only prevent the  body from being soaked by rain, but also prevent the trailer from being scratched during transportation.

Video of front loading trailer

Through the video, you can know more details of detachable gooseneck trailers , etc.
