150 Ton Gooseneck Detachable Lowboy Trailer

150 Ton Gooseneck Detachable Lowboy Trailer

33000 USD

 The minimum height of the loading platform allowed the 150 ton gooseneck detachable lowboy trailer fast loading and unloading heavy cargos.

SKU: 150 Ton Gooseneck Detachable Lowboy Trailer
GTIN: 06975766110376
MPN: TITAN6808106
Brand: TITAN VEHICLE

Gooseneck Detachable Lowboy Trailer:

TITAN 150 ton gooseneck detachable lowboy trailer has the low center of gravity, which makes the road train more stable and safer on the road. The other advantage of the gooseneck detachable lowboy trailer is the gooseneck is transporting excavator and construction equipment, large machinery transportation.

TITAN could offer customers gooseneck detach trailer with 2/3/4 axles and 80/100/120/150 tons, which always satisfy customers needs.

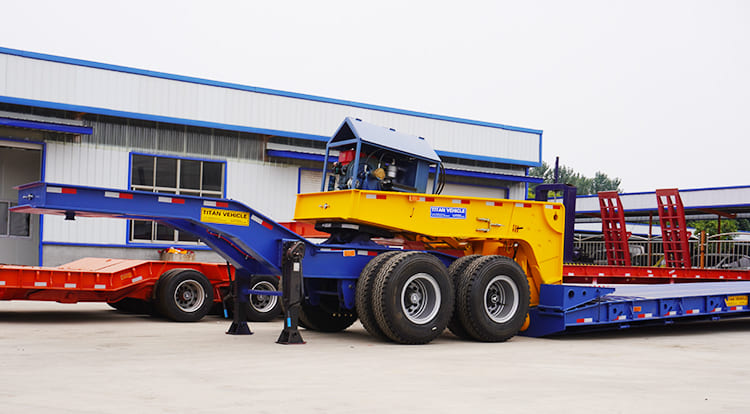

150 Ton Gooseneck Detachable Lowboy Trailer

150 Ton Gooseneck Detachable Lowboy Trailer for Sale in Guyana

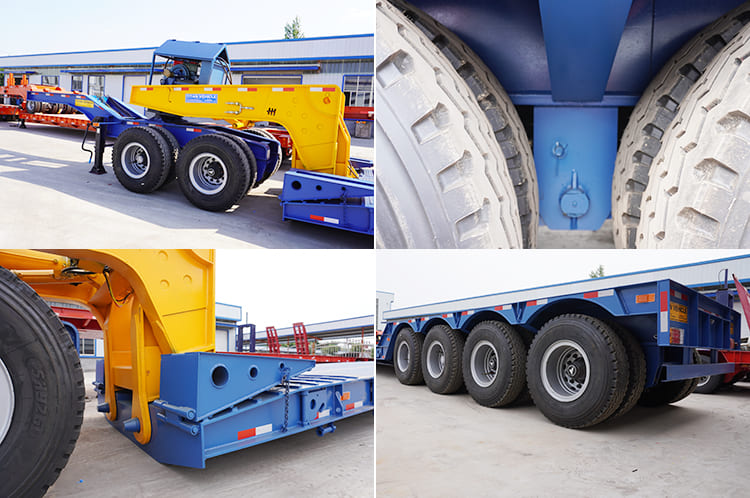

150 Ton Gooseneck Detachable Lowboy Trailer

150 Ton Gooseneck Detachable Lowboy Trailer for Sale in Guyana

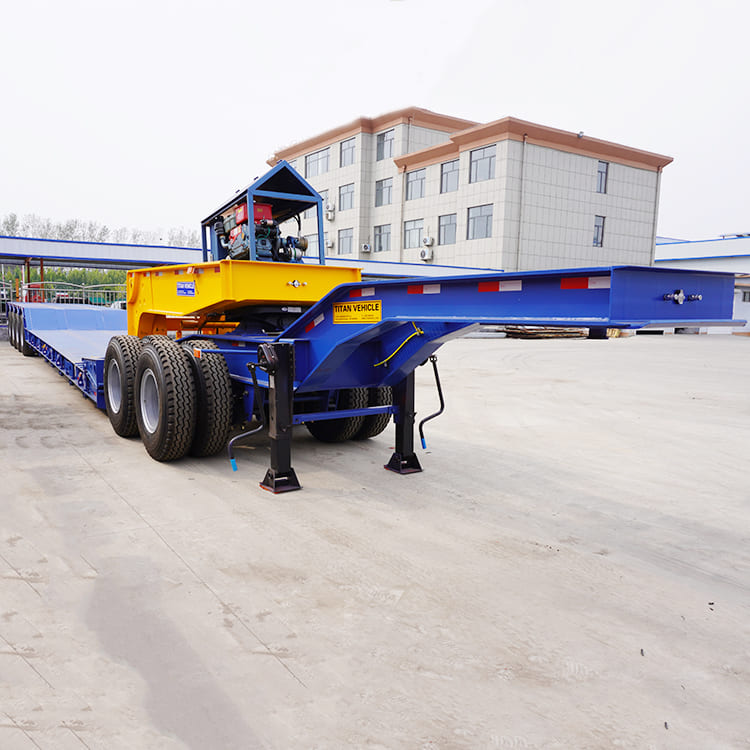

150 Ton Gooseneck Detachable Lowboy Trailer

150 Ton Gooseneck Detachable Lowboy Trailer for Sale in Guyana



Gooseneck detach trailer Specification:

Overall dimension:17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles:4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

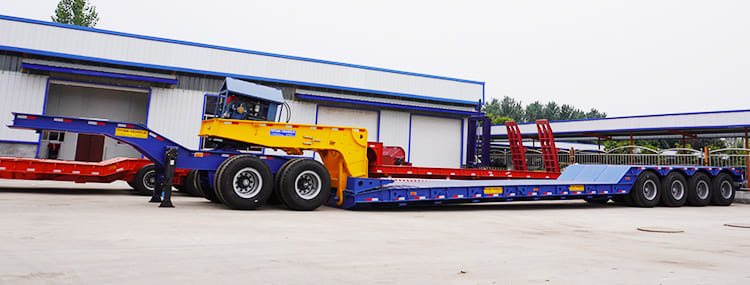

150 Ton Gooseneck Detachable Lowboy Trailer

150 Ton Gooseneck Detachable Lowboy Trailer for Sale in Guyana

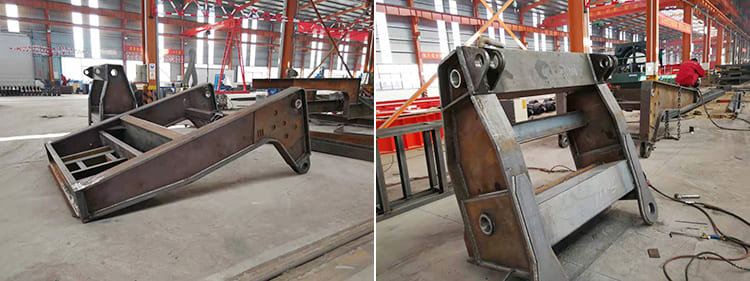

Gooseneck Detachable Trailer in the factory

1. The main beam of this detachable lowboy trailer for sale is made of HG60 high strength structural steel.

2. TITAN through beam use HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole.

3. TITAN gooseneck detachable lowboy hydraulic system, after five major system upgrades in ten years of production, the hydraulic system is now very stable. Customers only need regular maintenance, fully usable for ten years.

150 ton gooseneck detachable lowboy trailer



Video of gooseneck detach trailer

Through the video, you can know more details of detachable gooseneck trailers , etc.

80T Removable Gooseneck Semi Trailer



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
