The TITAN RGN trailer for sale is designed with a focus on stability, safety, and efficiency, making it a reliable choice for various transport scenarios. With continuous upgrades in both structural layout and system configuration, the 100 ton RGN trailer for sale is well-suited for use in challenging environments such as Guyana and other demanding heavy duty logistics operations.

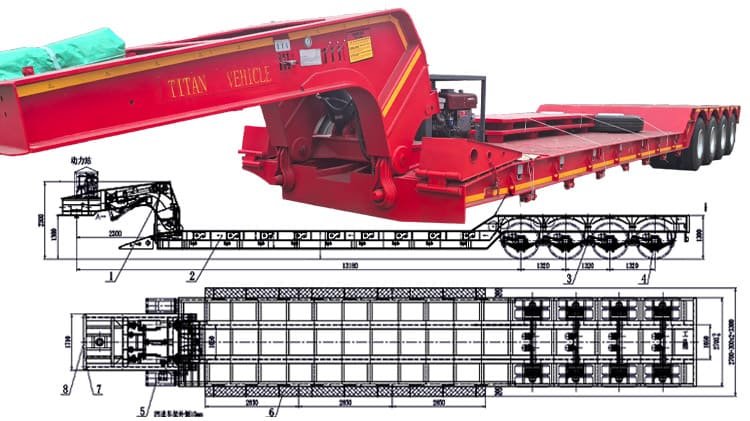

Dimension: 18670 mm*2700 mm*2300 mm
Loading capacity: 100 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high
Ramp: foldable ramp

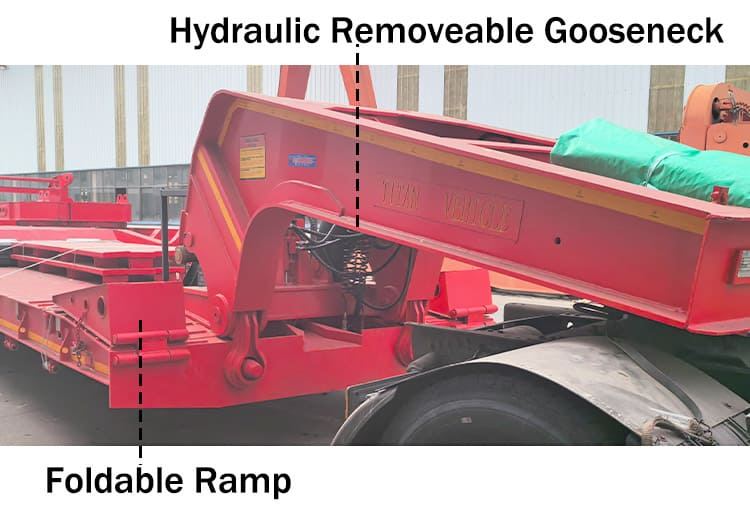

Gooseneck: removable gooseneck
Tire: 16 units
Leaf Spring: 10 layers
King Pin: JOST brand 90#
Axle: 16 ton
Light: LED light with net
A key benefit of this trailer lies in its low deck, open floor layout. The what is a RGN trailer structure allows for easier loading and unloading of oversized or heavy machinery, while also lowering the center of gravity during transit, improving balance and reducing rollover risk.

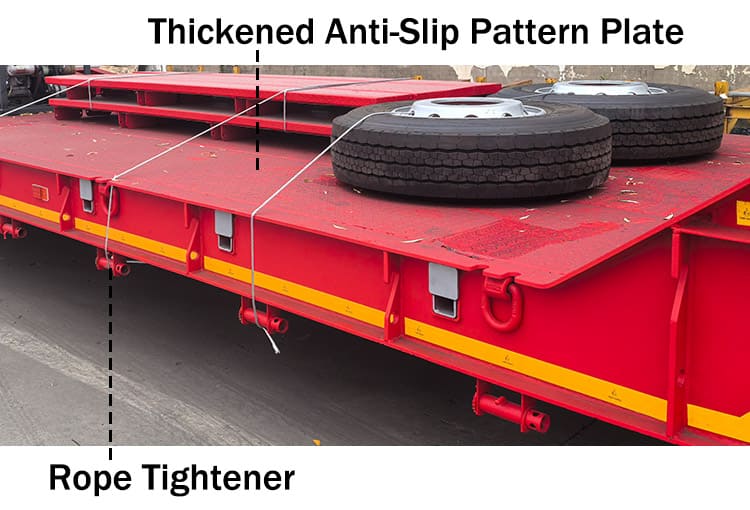

The floor of the trailer uses 5mm-thick patterned steel plates, selected for their anti-slip surface and excellent load-bearing capacity, which together support safer and more stable cargo transport.
To protect the external surface of the RGN trailers, a powder coating and baking paint process is applied. Although more expensive than standard spray paint methods, this dual-stage treatment offers greater durability, better resistance to environmental wear, and longer color retention in Guyana.
The coating approach is especially valuable in regions prone to moisture, UV exposure, or high humidity, as it reduces repainting frequency and lowers maintenance costs over time.
The 4 axle what is a RGN trailer features a robust mechanical suspension system with leaf springs crafted from high-strength steel. This system is built to absorb road impact and dampen vibrations on Guyana rough or unpaved roads. As a result, the RGN trailer for sale maintains smoother driving performance, and the structural integrity of both the what is a RGN trailer and cargo is better preserved during long hauls.
For a secure towing connection, TITAN uses the JOST 90# kingpin. Known for its durability and strength, this component ensures a firm link between the tractor and RGN trailers, contributing to overall stability and reduced risk during heavy or long distance transportation.
The traction plate, formed from a single 12mm steel sheet, improves the what is a RGN trailer ability to absorb impact and handle terrain variations. Its strength prevents deformation during operation and enhances steering performance, particularly when navigating uneven roads.
Air brake reliability is also addressed with the use of high pressure rubber tubing. These reinforced pipes resist abrasion and aging better than standard lines and are designed to last up to a decade, providing consistent braking force and lowering maintenance demands.

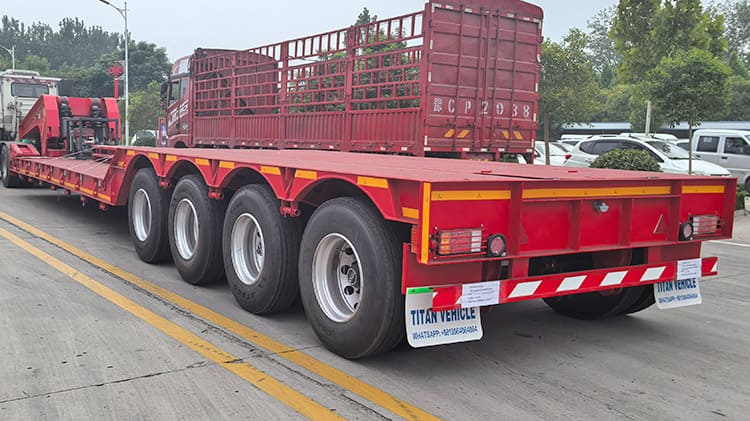

To improve weight distribution and increase payload capacity, the RGN trailer for sale is equipped with four axles, each capable of bearing 16 tons. This multi-axle setup helps prevent uneven stress that can lead to damage or frame fatigue, particularly important when traveling across uneven or rugged landscapes over extended periods in Guyana.
TITAN also integrates rope tensioners along the sides, designed to secure cargo during transit. These tensioners are simple in structure, user-friendly, and contribute to quick cargo fastening or release. Their inclusion enhances operational safety, especially during sharp turns or emergency braking situations.

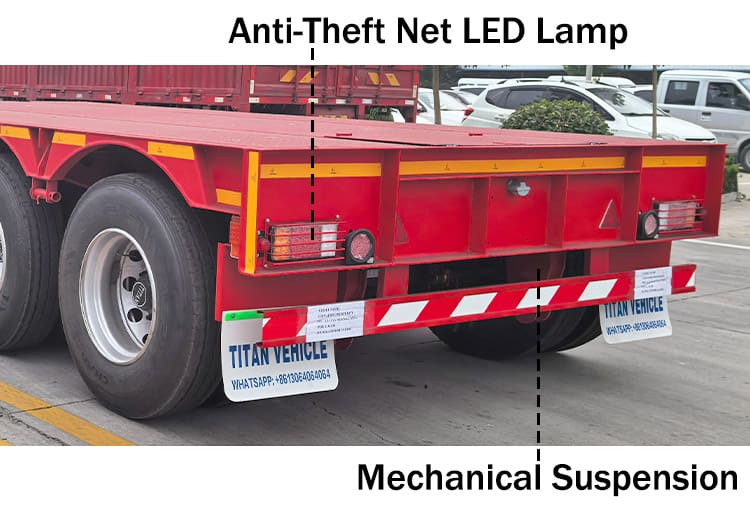

Lighting is another area of attention. The what is a RGN trailer comes fitted with energy-efficient LED lamps, which deliver brighter output, consume less power, and last significantly longer than conventional bulbs. These lights are built to endure difficult conditions, such as exposure to dust, vibration, and moisture. To reduce the risk of theft or tampering, the lighting system is safeguarded with protective mesh covers.
To ensure the RGN trailer for sale remains in excellent condition during international shipping, TITAN adopts a layered preservation process. First, a protective wax coating is applied across all surfaces to prevent corrosion. Then, a waterproof tarp is placed over the entire unit.
This dual-layer method provides strong protection against salt spray, moisture, and sea air during maritime transport. It ensures that the RGN trailers reaches its destination in ready-to-use condition, with no need for post-shipment repairs or touch-ups.
