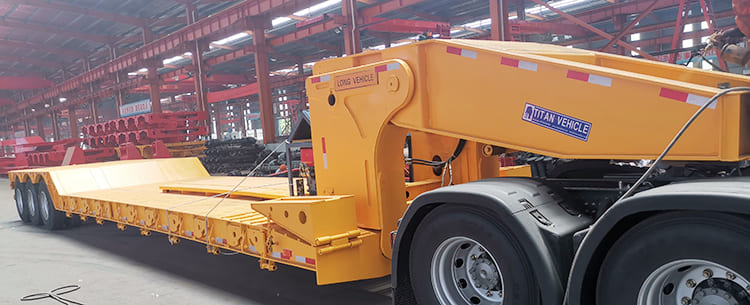

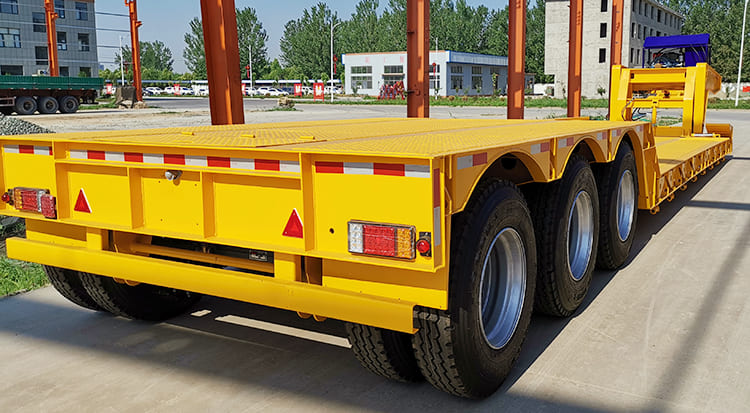

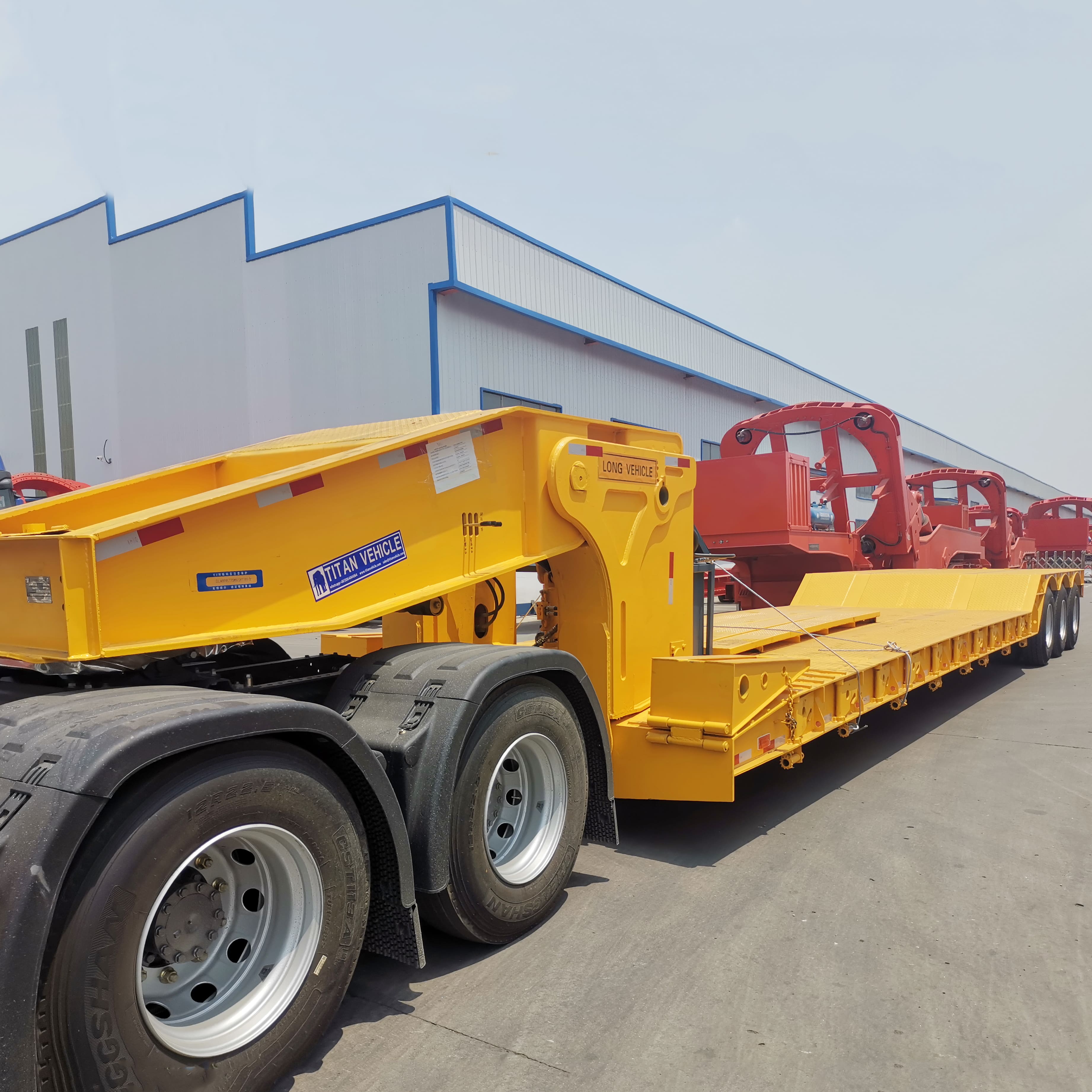

TITAN Vehicle has the 2 axles, 3 axles, 4 axles lowboy gooseneck trailer, and the color could be painted as customers' request, TITAN can customized according to client request 100%.
TITAN 3 axle low loader trailer has a wide range of applications, mainly used for medium and long distance cargo transportation. It is usually used to transport heavy vehicles (such as tractors, special vehicles, etc.), rail vehicles, mining machines, forestry machines, agricultural machines (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy loads.
TITAN Vehicle has the 2 axles, 3 axles, 4 axles lowboy gooseneck trailer with different capacities 60/80/100/120/150 Tons
3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers
3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers
3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

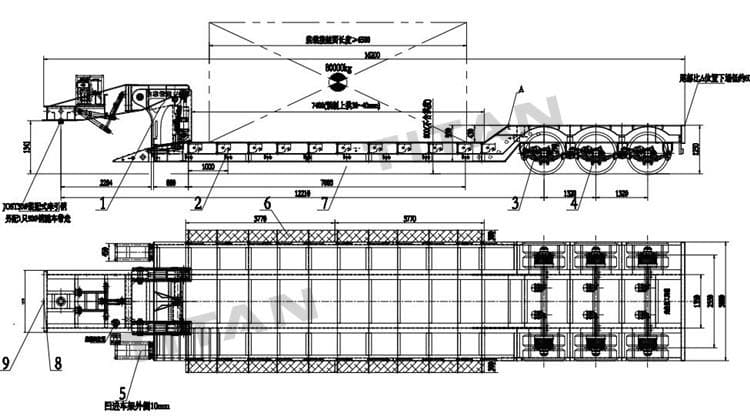

Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-80T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

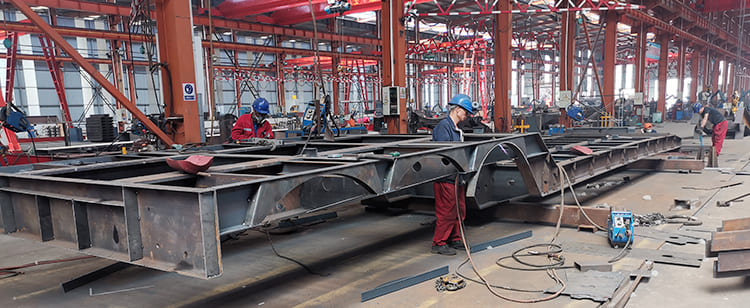

1. The main beam of this lowboy gooseneck trailer for sale is made of HG60 high strength structural steel.
2. TITAN through beam use HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole.
3. TITAN lowboy gooseneck trailer for sale hydraulic system, after five major system upgrades in ten years of production, the hydraulic system is now very stable. Customers only need regular maintenance, fully usable for ten years.
Through the video, you can know more details of detachable gooseneck trailers , etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
