The 100 ton folding gooseneck trailer for sale cargo platform can be adjusted according to the amount of goods, and the height of the cargo platform can be adjusted to make the loading, unloading and transportation of goods more convenient and safe.
TITAN folding gooseneck trailer for sale adopts polyurethane paint, which has more adhesion, beautiful color, the paint won't come off after five years using.
100 Ton Folding Gooseneck Lowboy Trailers for Sale in Panama
100 Ton Folding Gooseneck Lowboy Trailers for Sale in Panama
100 Ton Folding Gooseneck Lowboy Trailers for Sale in Panama
Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800MM
Loading capacity: 100 TONS.4 AXLES,16TONS.
Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Twist locks :6 units for 40/45 ft container
Axle: 4 Axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

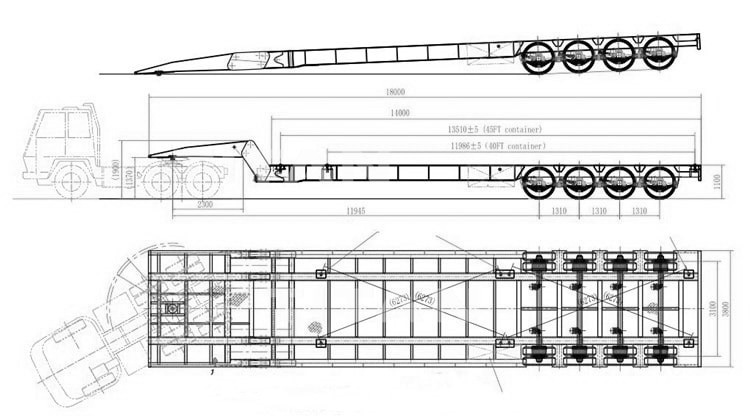

Drawing of 100 Ton Folding Gooseneck Trailer

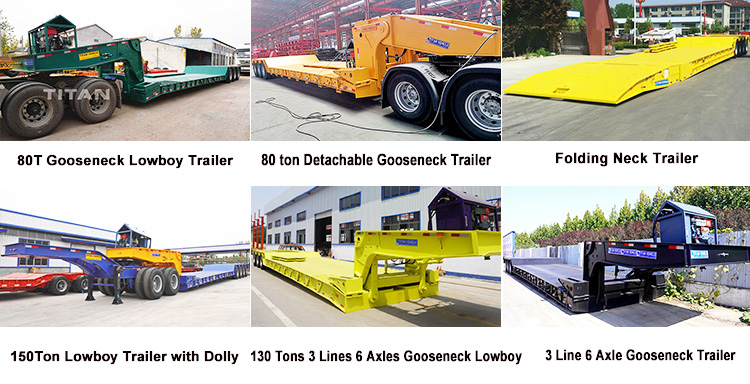

TITAN folding gooseneck trailer can be made for the 2/3/4 axles detachable gooseneck lowboy trailers, folding gooseneck trailer and 3 lines 6 axles heavy duty rgn lowboy trailer, the capacity of 60/80/100/120/150 ton gooseneck trailer. TITAN also could adjust the production details according to customers needs.

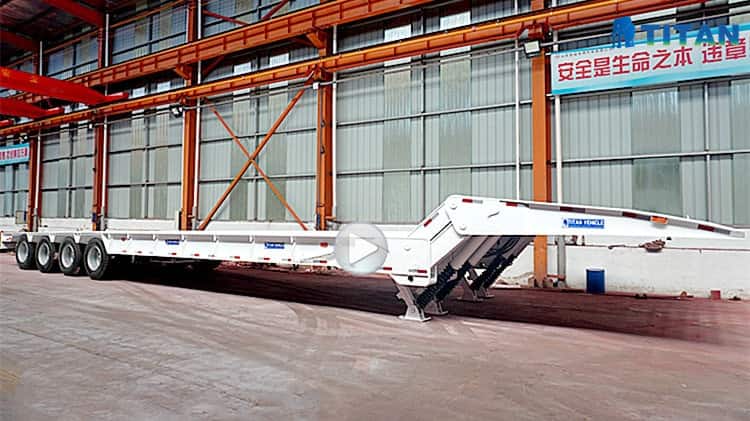

Through the video you can learn more about the folding gooseneck trailer , folding neck lowboy trailers , gooseneck lowboy trailers etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
