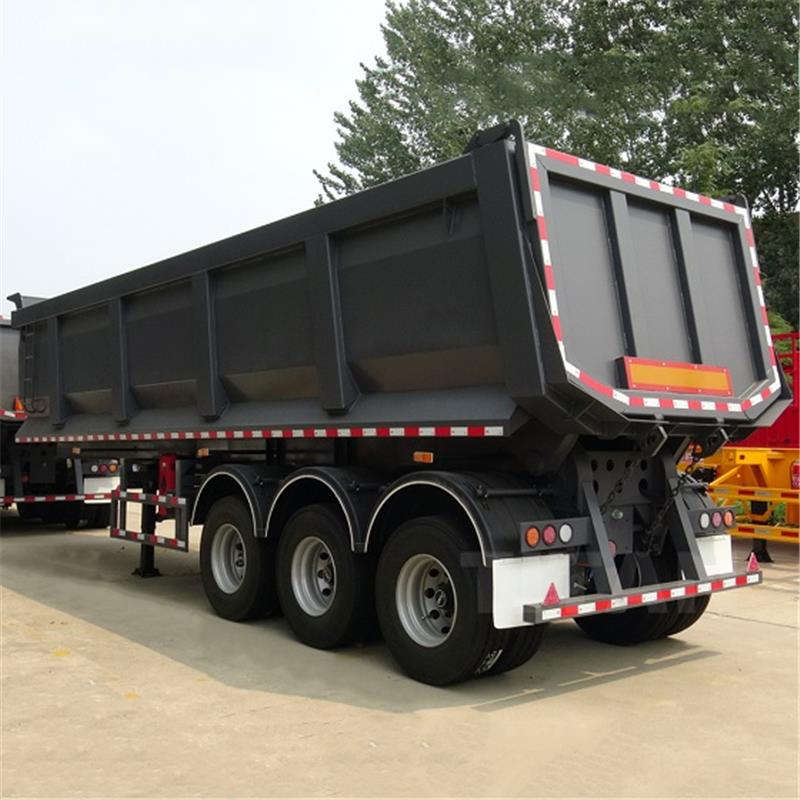

35cbm End Dump Trailer for sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.
TITAN Tipper Trailer for sale adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

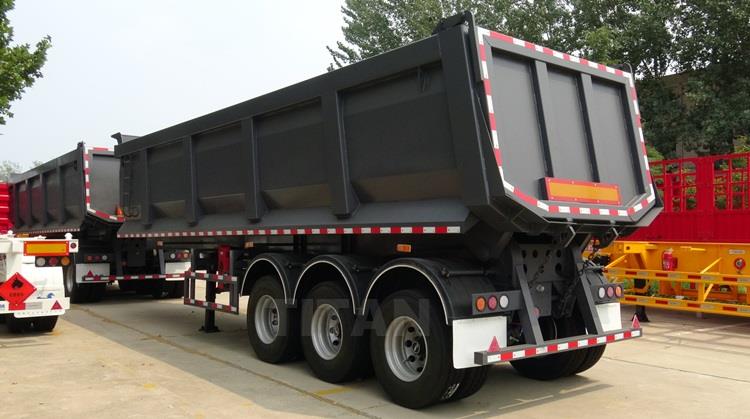

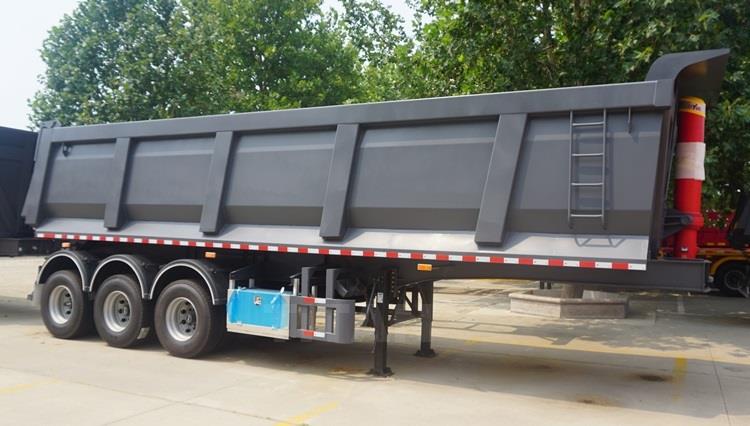

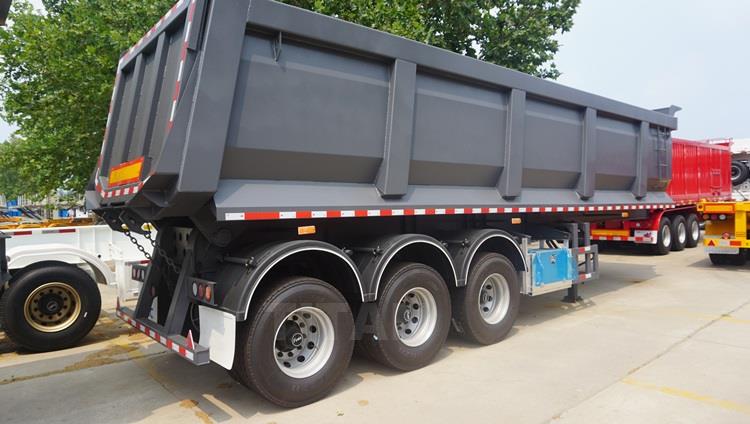

35CBM End Dump Tipper Trailer for Sale Near Me
35CBM End Dump Tipper Trailer for Sale Near Me
35CBM End Dump Tipper Trailer for Sale Near Me
35CBM End Dump Tipper Trailer for Sale Near Me
Dimension: 9300mm * 2500mm *1600mm
Volume : 33CBM
Axles：3 axles
Suspension：Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire：12 units
King pin：90#
Landing gear：JOST
Brake system: WABCO
Electrical system: 24V, LED lights

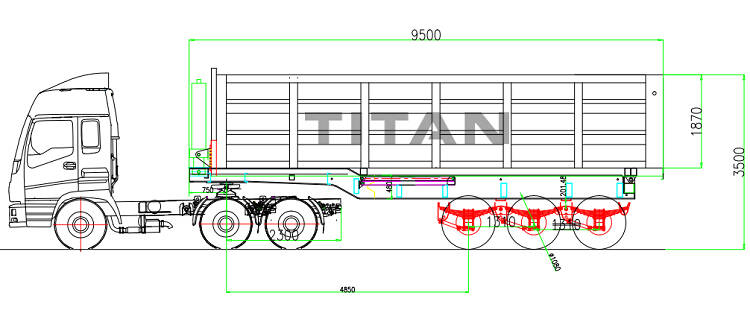

Drawing of 35CBM End Dump Tipper Trailer for Sale
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

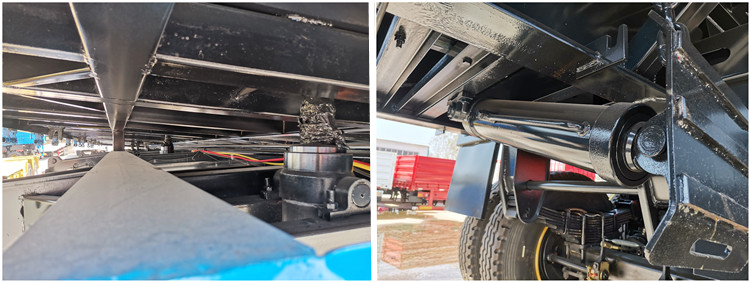

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
