TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the 40 ft flatbed container semi-trailer have a higher loading capacity and a longer service life.
With 16 years of technology accumulation and 27,000 semi-trailer manufacturing experience, TITAN has become China's best manufacturer and exporter of special trailers and semi-trailers.

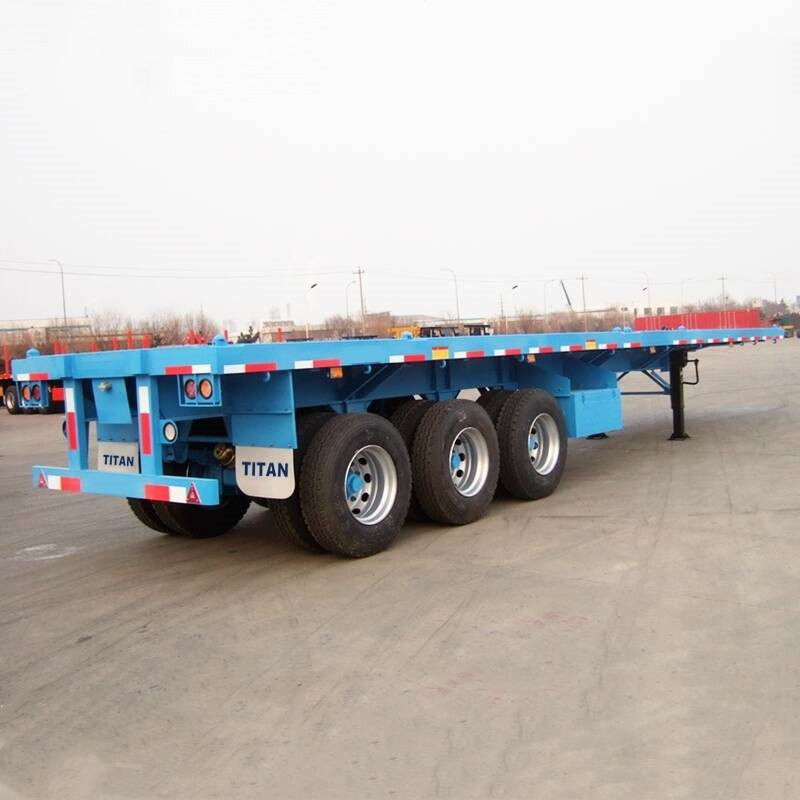

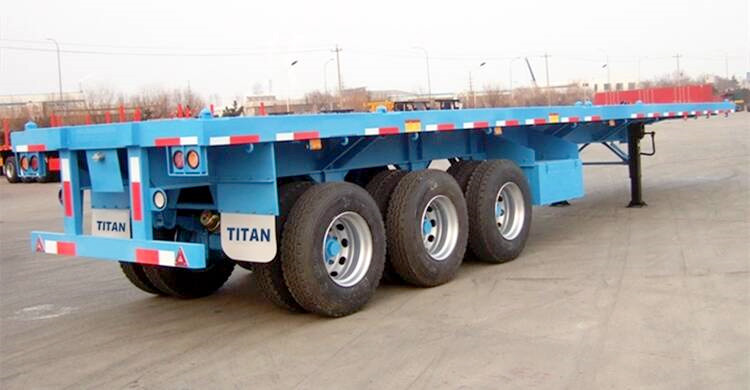

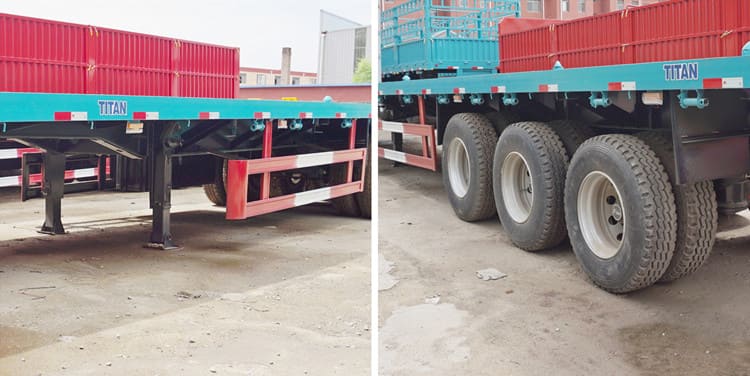

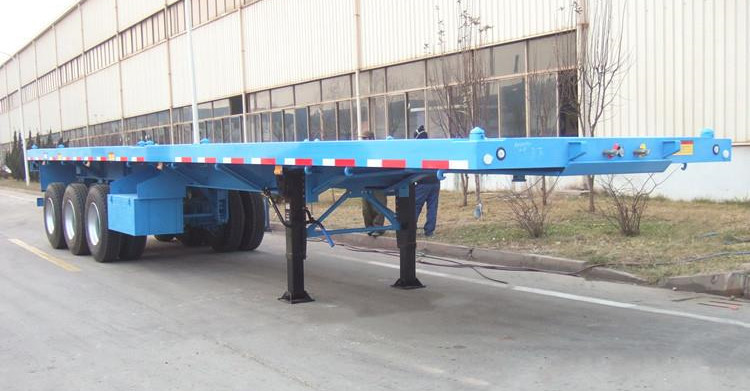

Tri Axle 40 Foot Flatbed Semi Trailer for Sale
Tri Axle 40 Foot Flatbed Semi Trailer for Sale
Tri Axle 40 Foot Flatbed Semi Trailer for Sale
Dimension(mm): 12500x2500x1550mm
Transport: 20ft, 40ft, 45ft container
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical Suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Durable mechanical widened spring suspension, make sure the stable and safety.
3. Polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
4. Hight Quality container locks, make sure the stable and safety of the loads.
5.Adopts the best parts for our trailer, such as the axle with 16 tons brake system, 3mm base plate, etc. with longer service life.
