TITAN Vehicle offers customers petrol diesel tanker trailer with different material, such as carbon steel, stainless steel, or aluminum material. The volume of the 38000l petrol diesel tanker trailer for sale can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. Each compartments has individual bottom valve, which can dispense different liquids.
Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale
Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale
Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 38000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 2 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

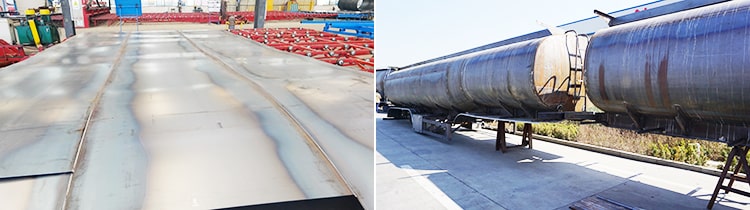

TITAN petrol tanker trailer use Q345 low-carbon alloy steel to make the tanker trailer with a thickness of 5mm and a very strong tank body.
The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
