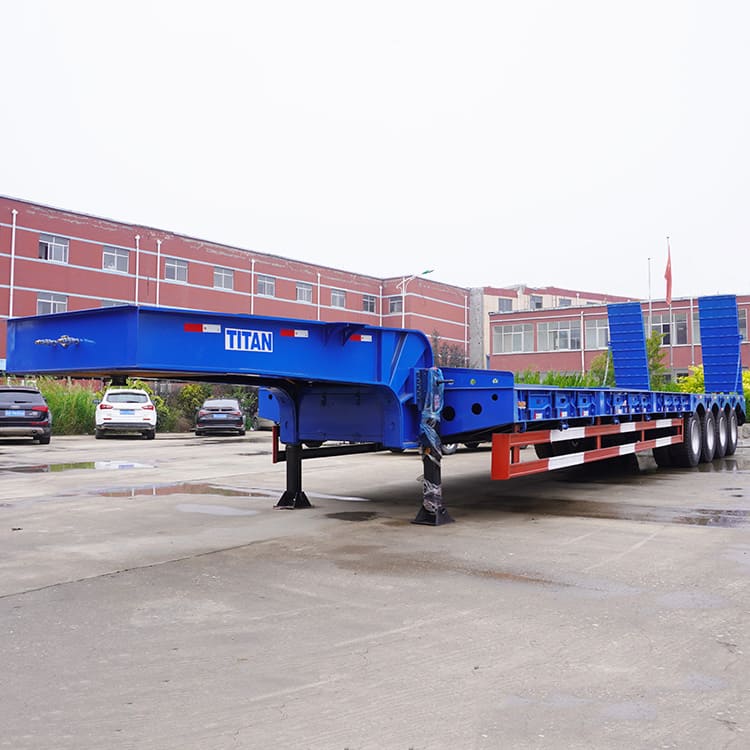

TITAN 4 axle hydraulic low bed trailer has ladders, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and lower side protection device, safety accessories and signs, etc. , the low bed trailer is used for the transportation of large construction machinery or heavy eqquipments.
TITAN uses famous brand accessories on the 80t hydraulic low bed trailer manufacturers, like Jost Landing gear, Wabco vavle, The use of these famous brands provides quality assurance for the TITAN low bed trailer manufacturers.
What is Low Bed Trailer | Hydraulic Low Bed Trailer Price for Sale Manufacturers
What is Low Bed Trailer | Hydraulic Low Bed Trailer Price for Sale Manufacturers
What is Low Bed Trailer | Hydraulic Low Bed Trailer Price for Sale Manufacturers
Overall dimension: 16000mm * 3500mm *3751mm
Loading capacity(T): 80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
What is Low Bed Trailer?
1. Main beam
The main beam of TITAN low bed trailer manufacturers is made of HG60 high strength structural steel, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel.
2. Side Beam
The side beam adopts "H" shape design and is welded with HG 60 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel.
3. The Ladder
The ramp is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

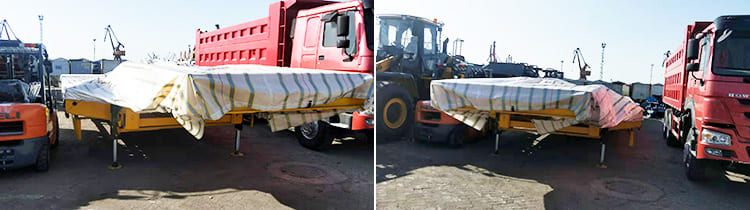

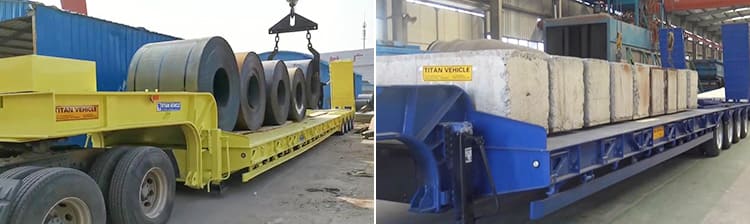

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
