Low bed truck is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. Low bed trucks are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the low bed truck for you according to your needs.

Low bed trucks also can transport all categories of heavy loads. such as finished products from these industries are packed in containers and stacked on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over. So, we also usually choose low bed semi trailers to transport heavy goods.

Low Bed Trucks Trailer for Sale in Nigeria Lagos

Low bed Truck dimension:

Model: TITAN 3 Axle Low Bed Truck

Dimension：13000mm * 3000mm *3400mm

Main beam: height: 500-550mm

Loading capacity：60 ton

Axles：3 axles

Suspension：spring suspension, air suspension

Tire：12 units

King pin：90#

Landing gear：JOST

Electrical system：24V, LED lights

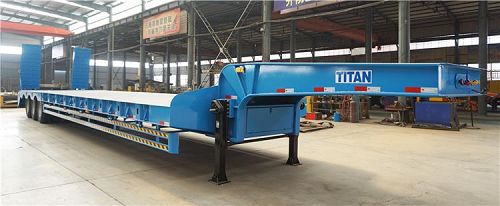

Different types of Low bed Truck Trailer

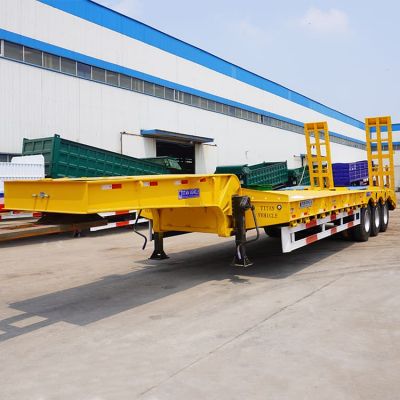

Common Low bed Truck

The common low bed truck has a flat plate type, the cargo plate is a flatbed. There is a ramp at the end of the low bed truck trailer. The low bed truck is used to transport normal heavy cargo. It cannot transport cargo with a high height as other low bed trailers. This type of trailer has a higher working platform than other low bed trailers because of the flat plate type. The position of the working platform explains its limitations in transporting cargo with a high height.

One of the benefits of using the ordinary low bed truck is that it is cost-effective. The low bed truck is cheaper than other heavy-duty trailers. Another advantage is that the cargo platform is longer. The second half of the ordinary low bed trailers can be used as a cargo platform.

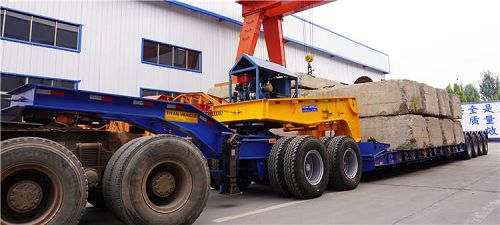

RGN trailer(removable gooseneck trailer)

Also known as a gooseneck lowboy trailer. The trailer frame has a stepped shape, and the plane of the cargo platform is behind the gooseneck, so that the main plane of the cargo platform is lowered, which is convenient for loading and unloading and transportation of goods. Our split gooseneck semi-trailer has a detachable gooseneck design on the front, which avoids overturning the body when transporting heavy equipment and ensures the safety of the vehicle and the driver.

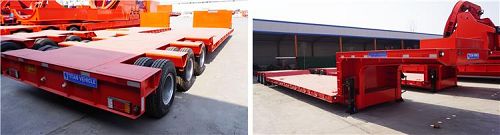

Concave beam type low bed trailer

The low bed cargo platform is concave and has the lowest load-bearing plane. It is generally suitable for transporting large or ultra-high equipment.

The main advantage of a low bed truck is high stability. The staircase structure lowers the height of the cargo center, which increases stability during transportation. Low bed trailer is commonly used to move heavy equipment and cargo with a high height. It is best suited in countries that have strict height restrictions.

Advantage of Low bed Truck:

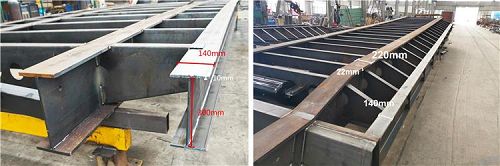

500mm thickened Main Beam (Q460C high strenght steel)

TITAN low bed truck adopts 500mm main beam, effectively increase 10% loading capacity than the normal excavator trailer which uses 450mm main beam, and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on bad road, even no road.

300mm width Main Beam

TITAN low bed truck trailer adopts 300mm width main beam, increase 20% loading capacity than the normal low loader trailer which uses 140mm width main beam, ensure driving smoothly.

2. Side beam

300mm Height Side Beam

The side beam of TITAN low bed truck trailer adopts 300mm "I beam" design, and its loading capacity is 2 times more than the normal heavy haul trailer which uses 250mm side beam.

10mm thickness Side Beam

TITAN low bed truck is produced by 10mm thickness side beam, its loading capacity is much higher than the normal low loader trailer which uses 4.5mm thickness

3. Strong ramp

The loading ramps are made of T700 high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
