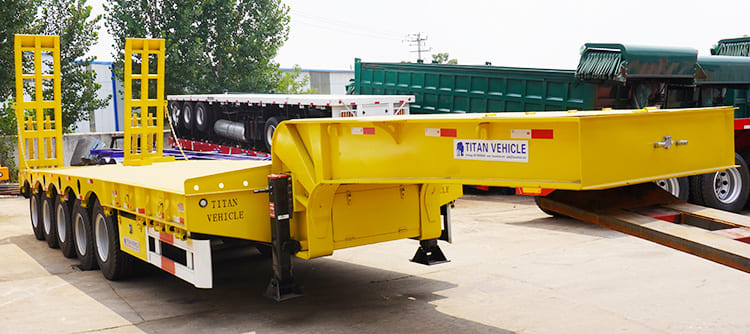

The 5 axle tractor low loader trailer frame structure designed by TITAN is a low-flat concave beam type. There is a groove in the middle of the trailer to park a large amount of goods or engineering equipment, and a ladder device is installed at the rear of the trailer. The cargo is loaded and unloaded from the rear of the trailer.
TITAN 5 axle tractor low loader trailer is made of high strengh steel HG60, which make the trailer more durable.
100 Ton 5 Axle Tractor Low Loader Trailer for Sale in Ghana
100 Ton 5 Axle Tractor Low Loader Trailer for Sale in Ghana
100 Ton 5 Axle Tractor Low Loader Trailer for Sale in Ghana
Overall dimension: 13000mm * 3000mm *3751mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
100 Ton 5 Axle Tractor Low Loader Trailer for Sale in Ghana
TITAN uses bulk or containerized transportation to package goods. This time, the customer chose the way of bulk cargo to transport 5 axle low loader for sale. After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the 5 axle low loader for sale to protect the semi-trailer and prevent the semi-trailer from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the semi-trailer. Rain cloth, which can not only prevent the car body from being soaked by rain, but also prevent the semi-trailer from being scratched during transportation.

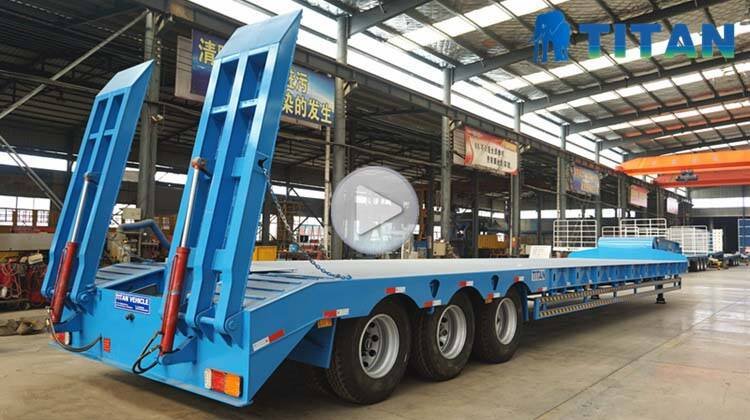

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
