3 Axle Semi Low Loader Trailer

3 Axle Semi Low Loader Trailer

15800 USD

Price: 15800 USD



TITAN 3 axle semi low loader trailer is using the landing gear, which is the world famous recognized brand Jost.  And it has better bearing capacity and longer service life.

SKU: 3 Axle Semi Low Loader Trailer
GTIN: 06975766110499
MPN: TITAN6602015
Brand: TITAN VEHICLE

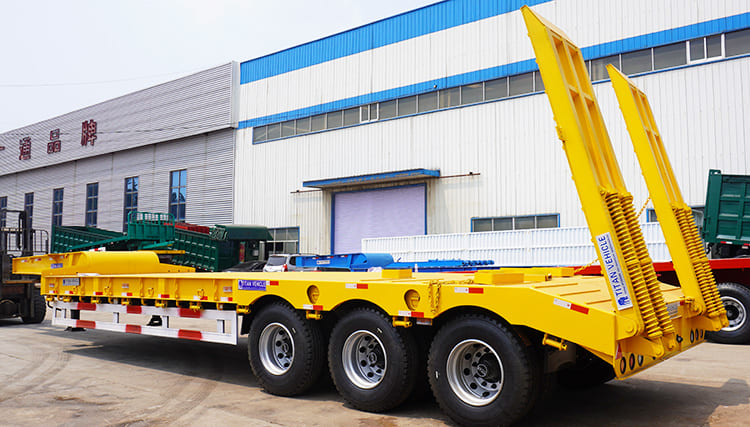

3 Axle Semi Low Loader Trailer for Sale:

The TITAN 3 axle semi low loader trailer's ladder is easy to operate, and one person can easily lift the ladder. At the same time, The ramp of the ladder is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage. The service life can up to more than 5 years.

3 Axle Semi Low Loader Trailer

3 Axle Semi Low Loaders Trailer for Sale Near Me in Congo

3 Axle Semi Low Loader Trailer

3 Axle Semi Low Loaders Trailer for Sale Near Me in Congo

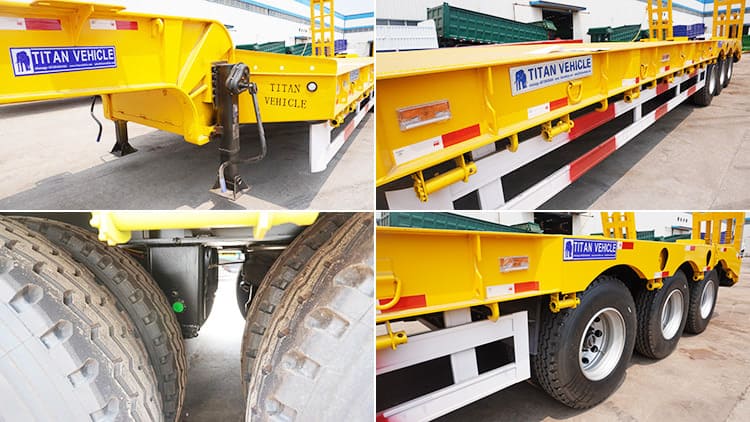

Details of 3 Axle Semi Low Loader Trailer

3 axle semi low loader trailer



Specification of 3 Axle Semi Low Loader Trailer:

Overall dimension: 13000mm * 3000mm *3751mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12.00R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

3 Axle Semi Low Loader Trailer

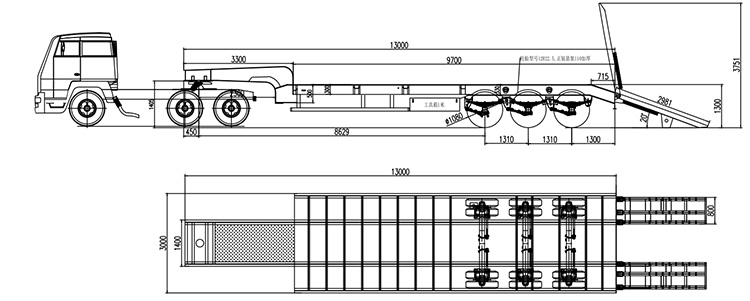

Drawing of 3 axles semi low loader trailer

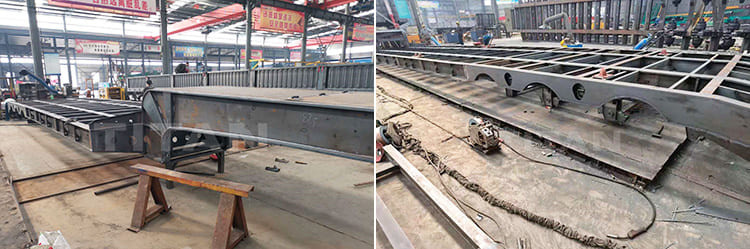

Semi Low Loader Trailer for Sale in the Factory

The main beam of Titan drop deck trailer is made of HG60 high strength structural steel. HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel. TITAN drop deck trailer main beam: height: 550mm;  thickness: 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.

3 Axle Semi Low Loader Trailer

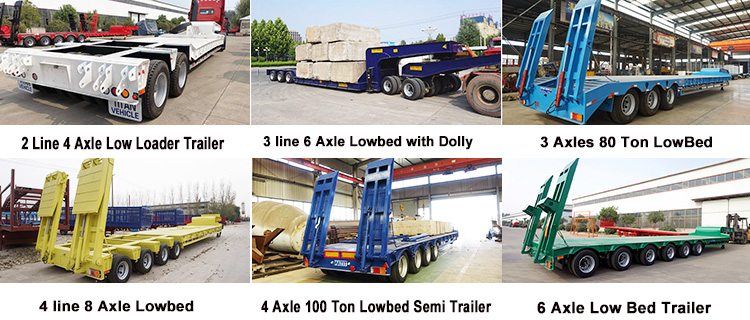

Other TITAN Semi Low Loaders for Sale:

3 Axle Semi Low Loader Trailer



Video of 3 Axles Semi Low Loader Trailer

3 axle low loader trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

80t tri axles low loader trailer
