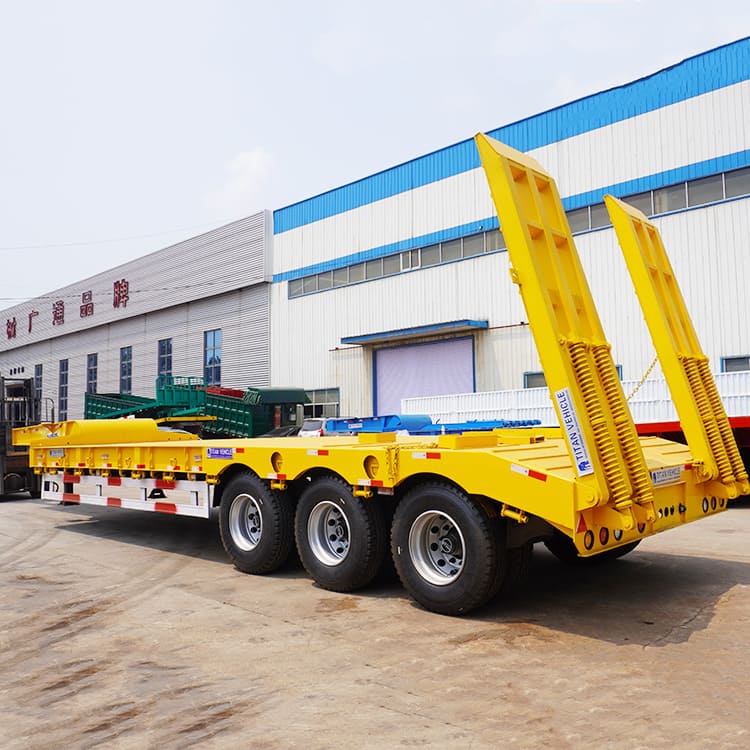

80 Ton 3 Axle Lowbed Trailer

80 Ton 3 Axle Lowbed Trailer

15800 USD

Price: 15800 USD



TITAN is using world famous brand of accessories on the 3 axle semi low bed truck trailer, like Jost landing gear, Wabco vavle etc.

SKU: 80 Ton 3 Axle Lowbed Trailer
GTIN: 06975766110499
MPN: TITAN6802102
Brand: TITAN VEHICLE

80 Ton 3 Axle Lowbed Trailer Description

The 3 axle Lowbed working platform has a low bearing surface and a stable center of gravity, which is conducive to the up and down of the machine. The upper part provides a large loading space. At the same time, the center of gravity after loading is low, and the vehicle runs safely and reliably. The specification of the 3 axle semi low bed truck trailer can be customized according to customers needs .

TITAN could offer customer lowbeds for sale with 2/3/4/5/6 axles with different capacity.

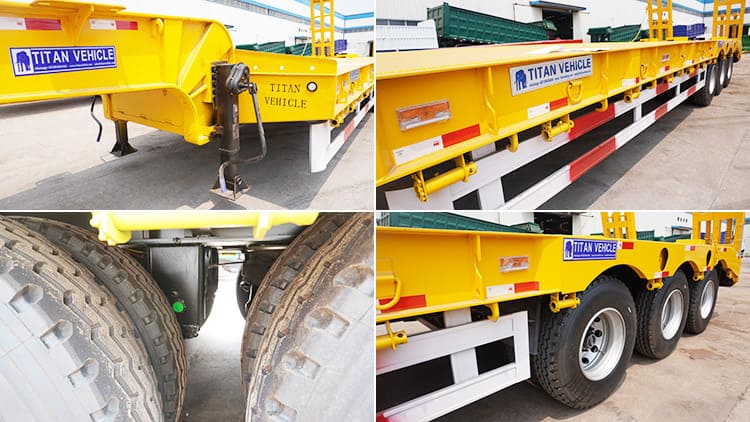

3 axles lowbed

80 Ton 3 Axle Lowbeds Trailer for Sale Price in Congo

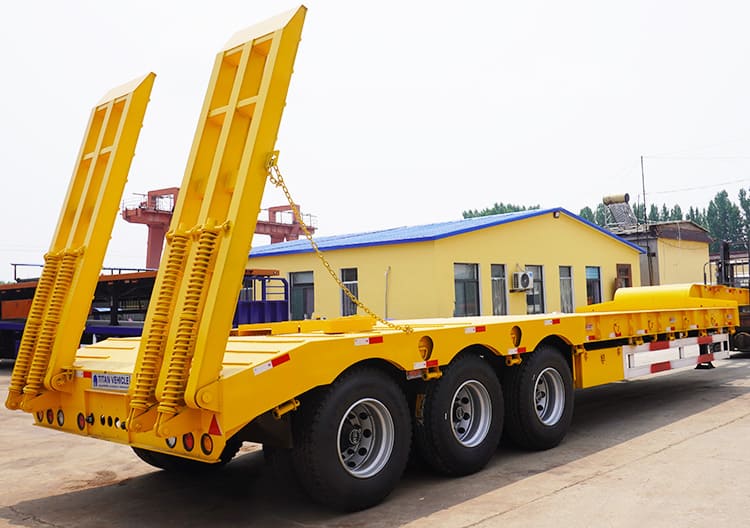

Hydraulic Low Bed Trailer Price for Sale

80 Ton 3 Axle Lowbeds Trailer for Sale Price in Congo

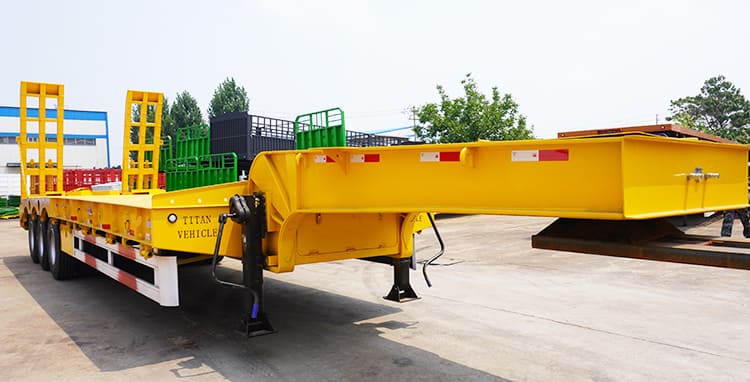

3 axles lowbed

80 Ton 3 Axle Lowbeds Trailer for Sale Price in Congo





Lowbeds for sale Specification:

Overall dimension: 13000mm * 3000mm *3751mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12.00R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

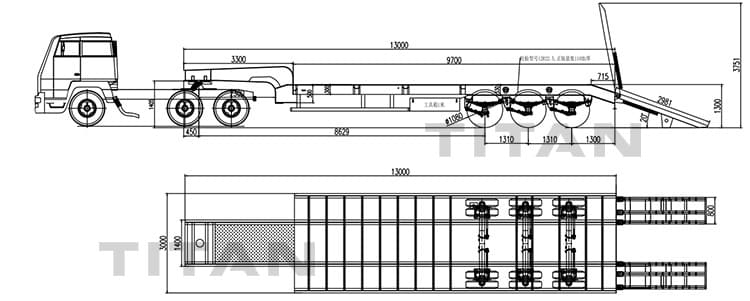

3 axles semi low bed truck trailer



Advantage of the lowbeds for sale

1.paints

 TITAN lowbed for sale with polyurethane paint, high adhesion, high chromaticity, beautiful color, the paint won't come off after five years

2.floor plate

The floor plate of TITAN lowbed for sale is 5mm diamond plate, which is thicker than the 4mm plate used by other factories. The floor plate is strong and durable, and not easy to be deformed

3.gooseneck double plat

TITAN lowbed for sale main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.

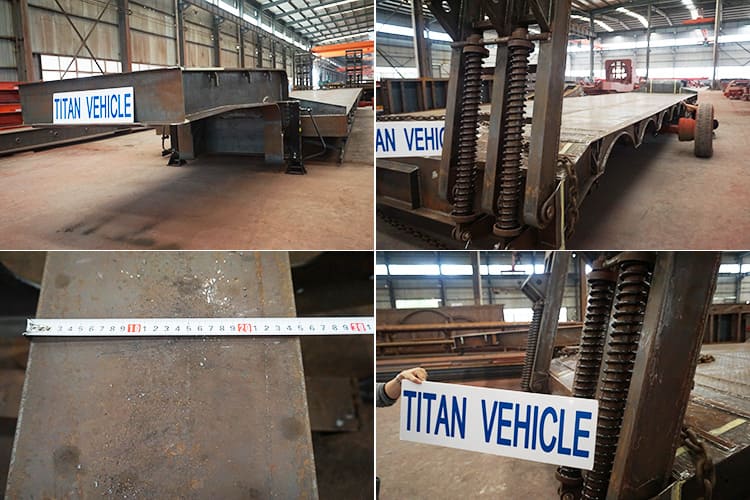

Production of the lowbed for sale

Hydraulic Low Bed Trailer Price for Sale

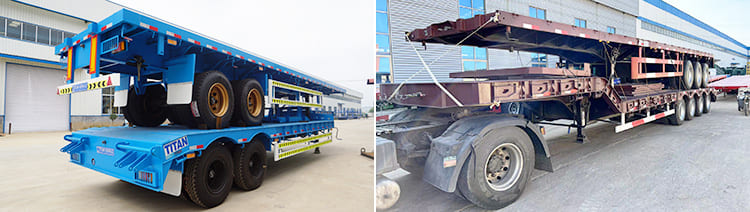

Package of the Lowbed Trailers



Hydraulic Low Bed Trailer Price for Sale

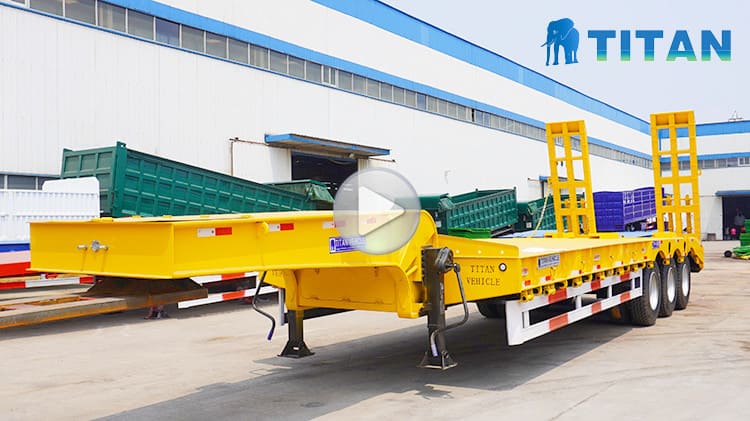

Video of 3 Axle Lowbed Trailer

3 axle low loader trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

80t tri axles low loader trailer



Feedback

Review

Ronnie Dube from Ghana - 2022-07-30T10:07:01+0800
Recently I got the 3 axle semi low bed truck trailer. Sales sent a lot of pictures and videos to recommend trailers according to my needs, thumbs up.
