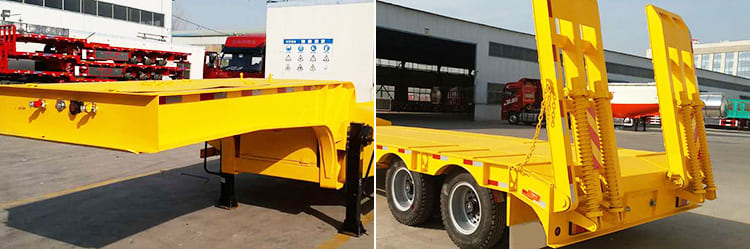

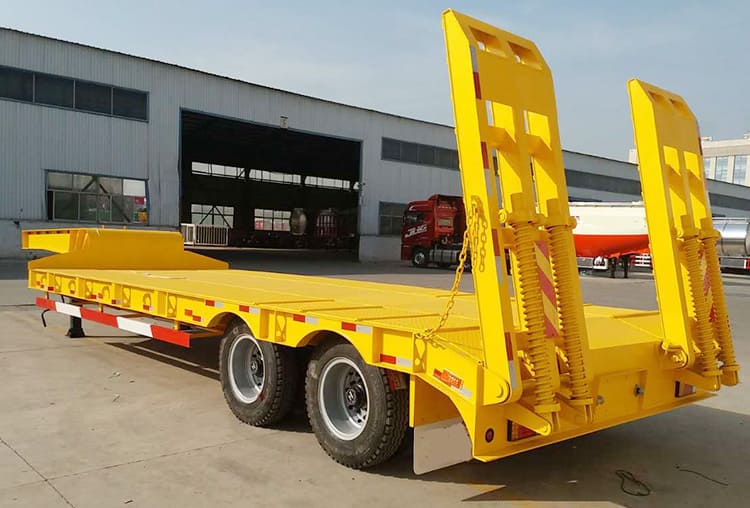

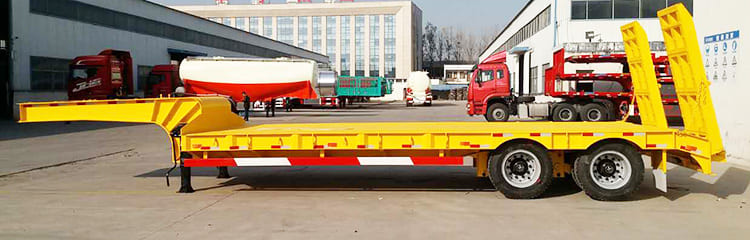

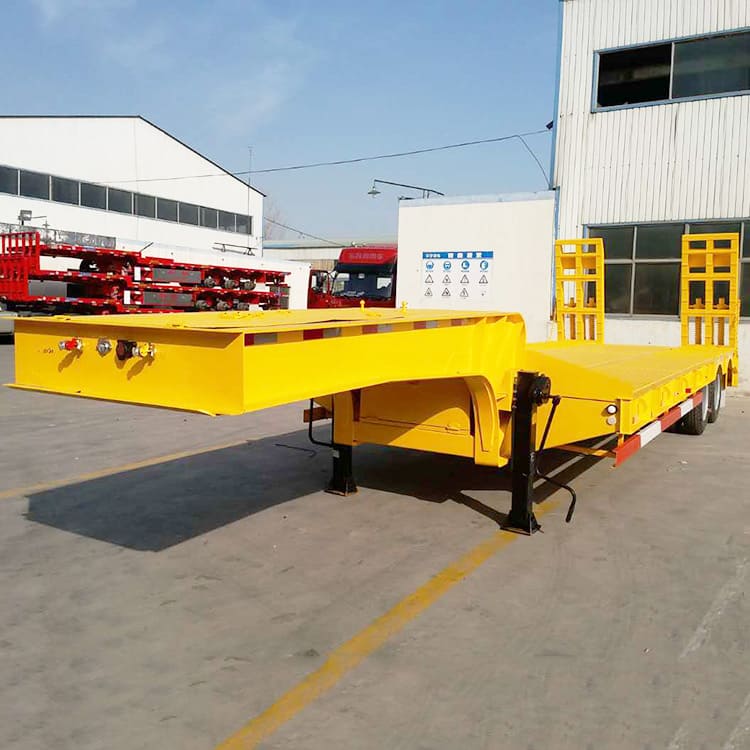

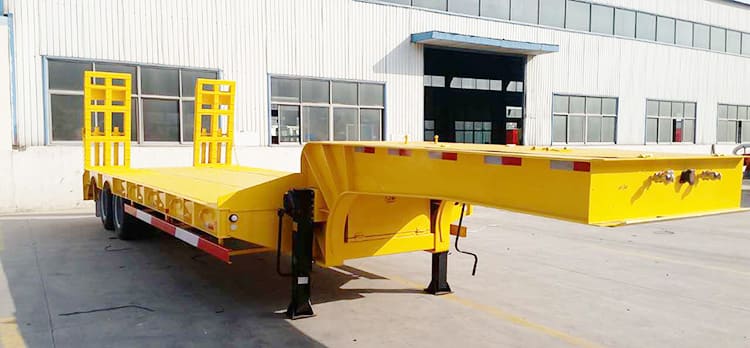

The TITAN 2 axle low loader has a relatively low center of gravity, good stability and safety, and has a relatively large ability to transport ultra-high loads and overcome overhead obstacles. The 2 axle low loader trailer ia mainly designed for carrying hevy eqquipments from 40 to 80 tons.
Besides,TITAN uses polyurethane paint on all of the low loader trailers, which has high adhesion, high chromaticity, beautiful color. And the paint won't come off after five years.
2 Axle Low Loader Trailer for Sale Price Manufacturers
2 Axle Low Loader Trailer for Sale Price Manufacturers
2 Axle Low Loader Trailer for Sale Price Manufacturers
Overall dimension: 13000mm * 3000mm *3751mm
Loading capacity(T): 40-80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

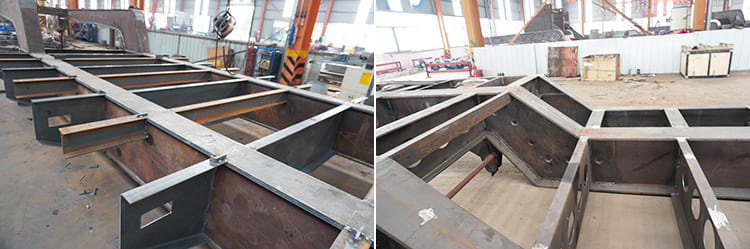

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

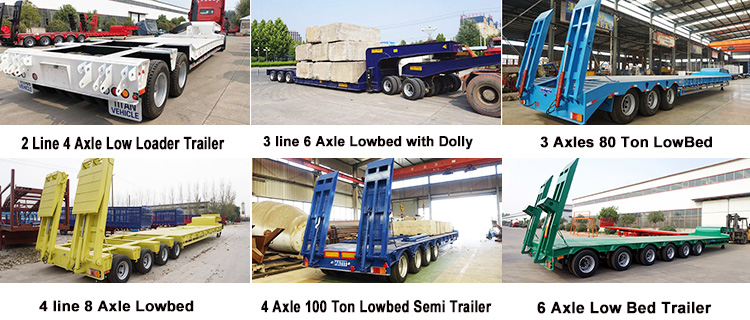

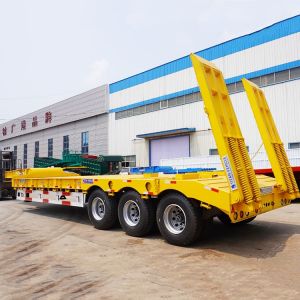

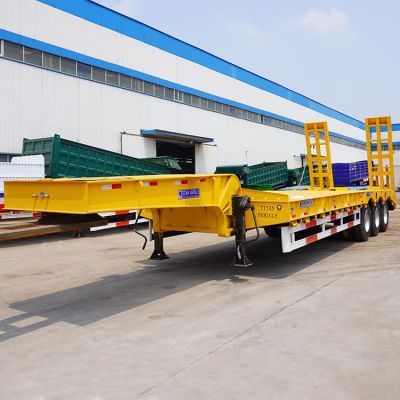

TITAN has a variety of types of low loader trailer to meet the different transportation needs of our customers. Such as 3 axles low loader trailer, 4 axle low loader trailer, 6 axles low loader trailer etc., mainly used for transporting heavy equipment. At the same time, TITAN also provides dolly low loader trailer with multi-lines, such as 2 line 4 axle, 3 line 6 axles, 4 lines 8 axles, which are mainly used for transporting heavy goods.
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
