Shandong Titan Vehicle Co., Ltd. is a well-known manufacturer and exporter of special truck trailers and semi-trailers in China. The company was established in 2004.
TITAN Vehicle adopts high strength steel material and famous parts to manufacture the 40 ft flatbed semi trailer for sale, it can make the flatbed trailer have a higher loading capacity and a longer service life.

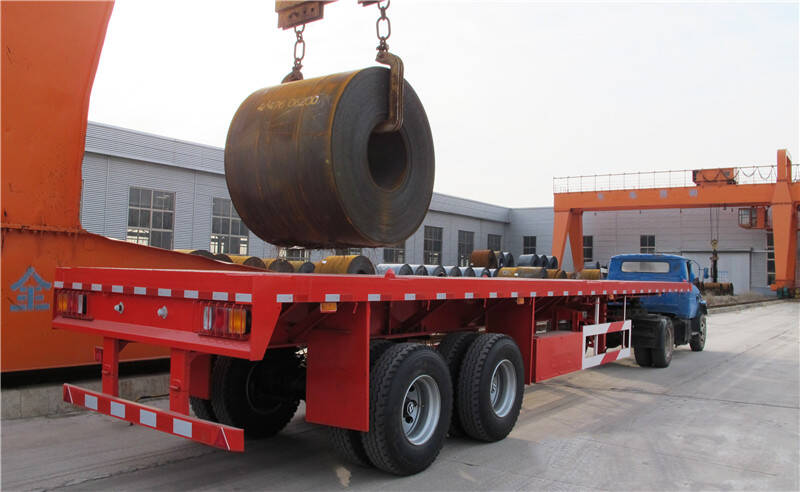

40 Ft Flatbed Semi Trailer For Sale In Mali
40 Ft Flatbed Semi Trailer For Sale In Mali
40 Ft Flatbed Semi Trailer For Sale In Mali

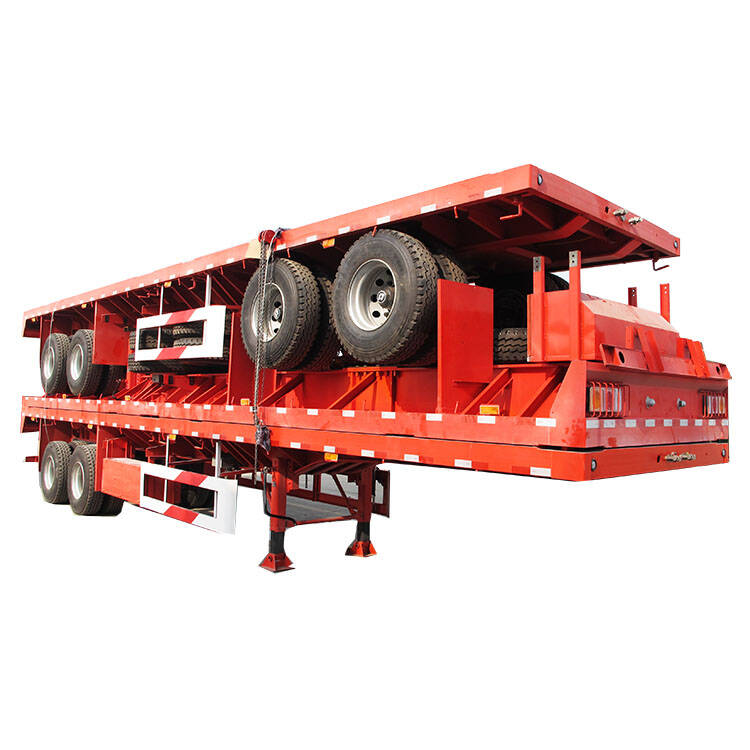

Model: 2 axle flatbed semi trailer with bogie suspension
Dimension(mm): 12500x2500x1450mm
Loading capacity(ton): ≤60T
Axles: 2 axles, 13T/16T, FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Bogie suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: Contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

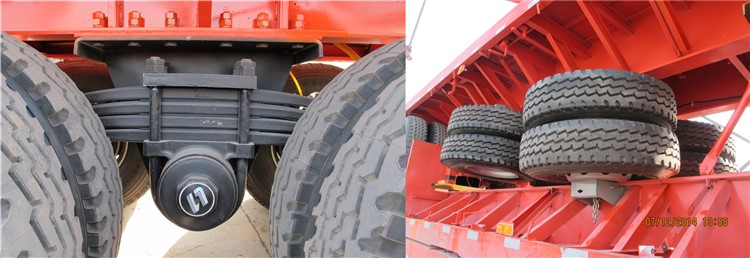

3. Durable mechanical widened spring suspension, make sure the stable and safety.
4. Hight Quality container locks, make sure the stable and safety of the loads.
5.We has been using tires with the company for more than 12 years. The quality is very stable. In China, it can use 200,000 kilometers for two years without any problem.

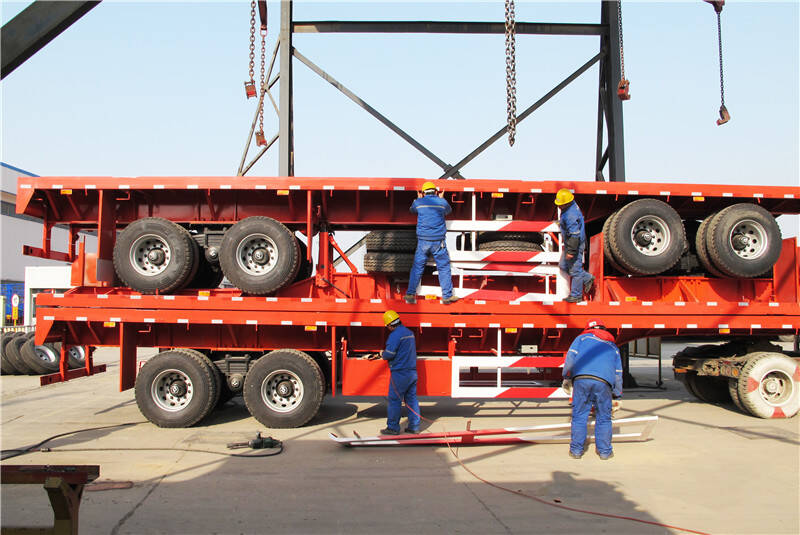

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

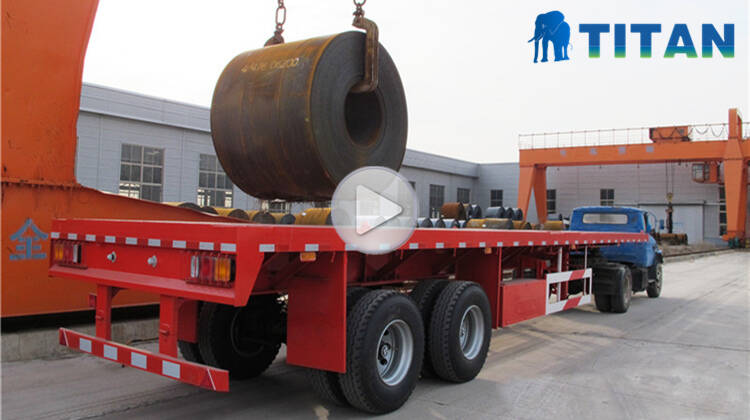

2 Axles Bogie Suspension Flatbed Trailer details display video
