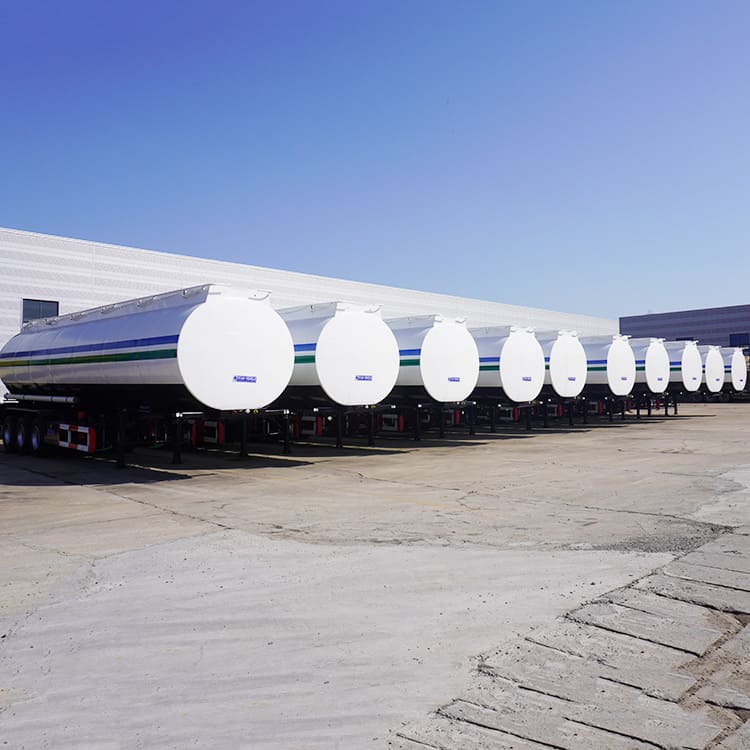

TITAN 3 axle fuel tank trailer prices tank body can be divided into several compartments, and can be divided into 7 compartments at most, which has achieved the purpose of transporting different types of oil at the same time.

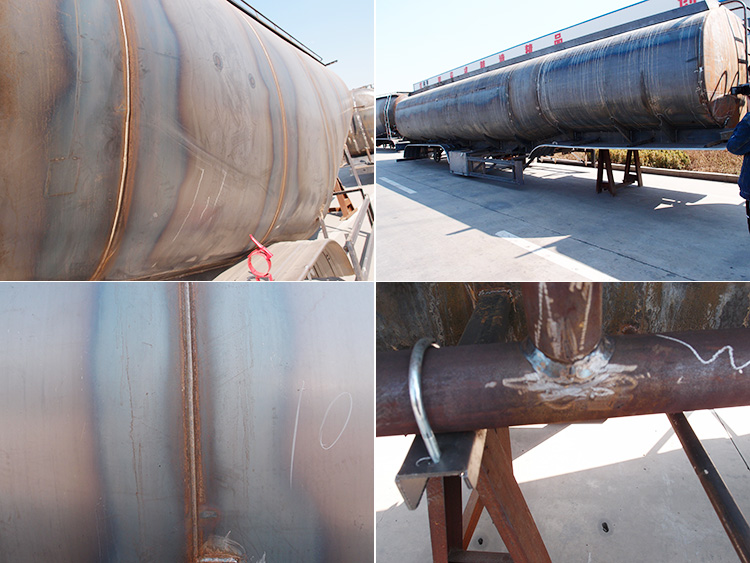

TITAN 40000ltrs fuel tank trailer adopts an advanced design concept. The tank body is automatically welded by an advanced large-scale special welding machine.

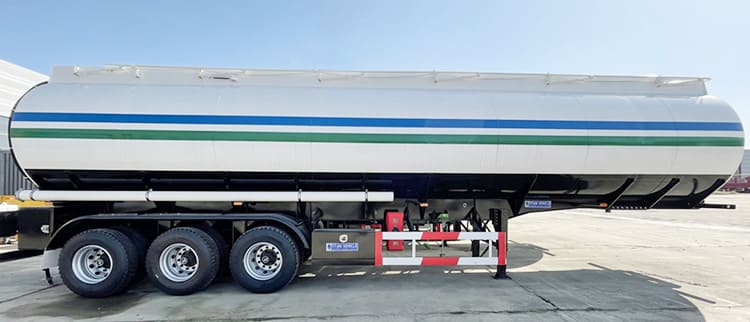

40000Ltrs 3 Axle Fuel Tank Trailer Prices | Fuel Tank Semi Trailer
40000Ltrs 3 Axle Fuel Tank Trailer Prices | Fuel Tank Semi Trailer
40000Ltrs 3 Axle Fuel Tank Trailer Prices | Fuel Tank Semi Trailer
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 40000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

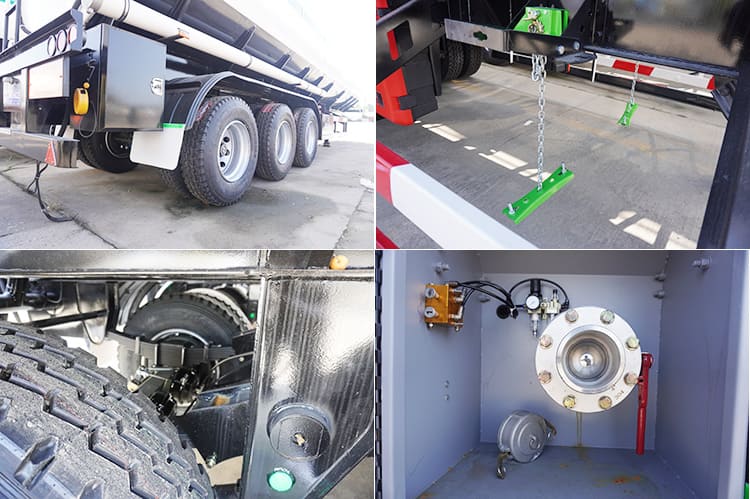

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.
All TITAN tanker after the production, will be carried out pressure test and metal inspection test, to ensure the tank sealing good.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
