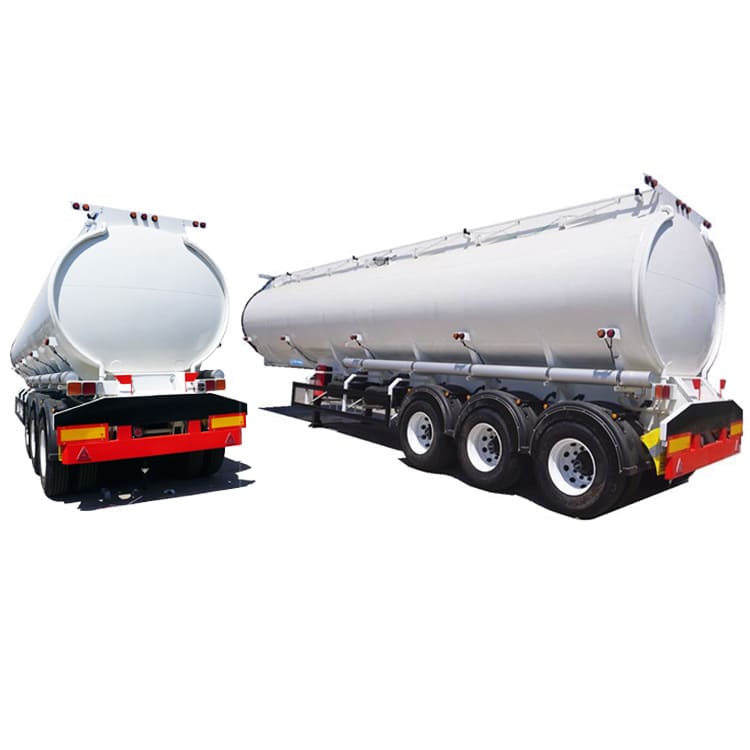

TITAN 45000l tri axle fuel tanker trailer is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. All TITAN fuel tanker trailers can be designed as heating and thermal insulation tank; customers can choose the tank capacity themselves to meet the actual needs of users; there are multiple anti-wave baffles in the tank body.
45000L Tri Axle Fuel Tanker Trailer for Sale Near Me in Ghana
45000L Tri Axle Fuel Tanker Trailer for Sale Near Me in Ghana
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

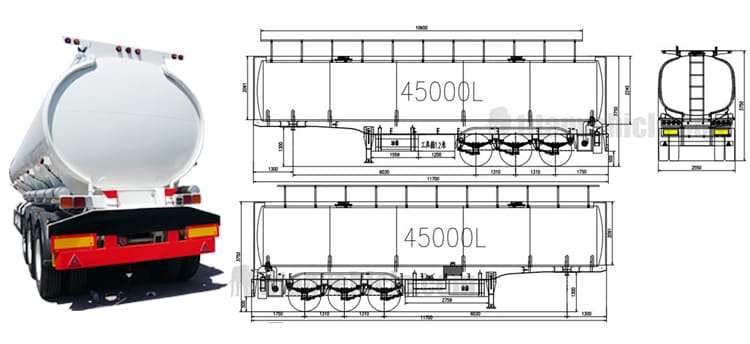

Drawing of the 45000L Tri Axle Fuel Tanker Trailers for Sale
1.Steel material
TITAN fuel tanker trailer use Q345 low-carbon alloy steel to make the tank body with a thickness of 5mm and a very strong tank body.

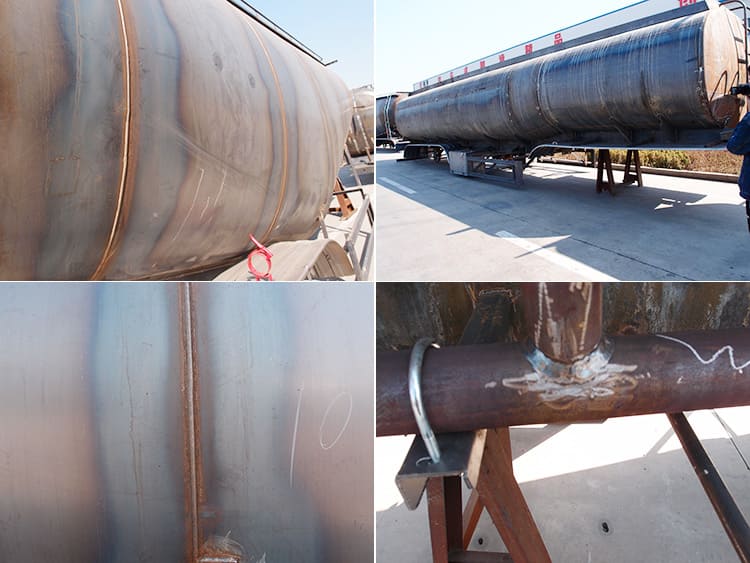

2. Welding
TITAN fuel trailer using the most advanced welding technology, through single-side welding double-sided forming welding, welding more solid and smooth, no welding without defects, absolutely will not appear the phenomenon of open welding, tank can be used for more than 10 years.
4. Welding Technology
TITAN tank adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%

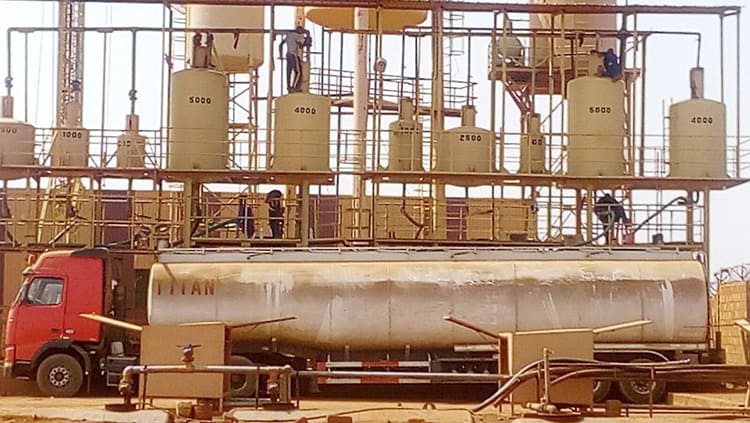

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
